Data Sheet
Product Code: XDE6FONB.BB

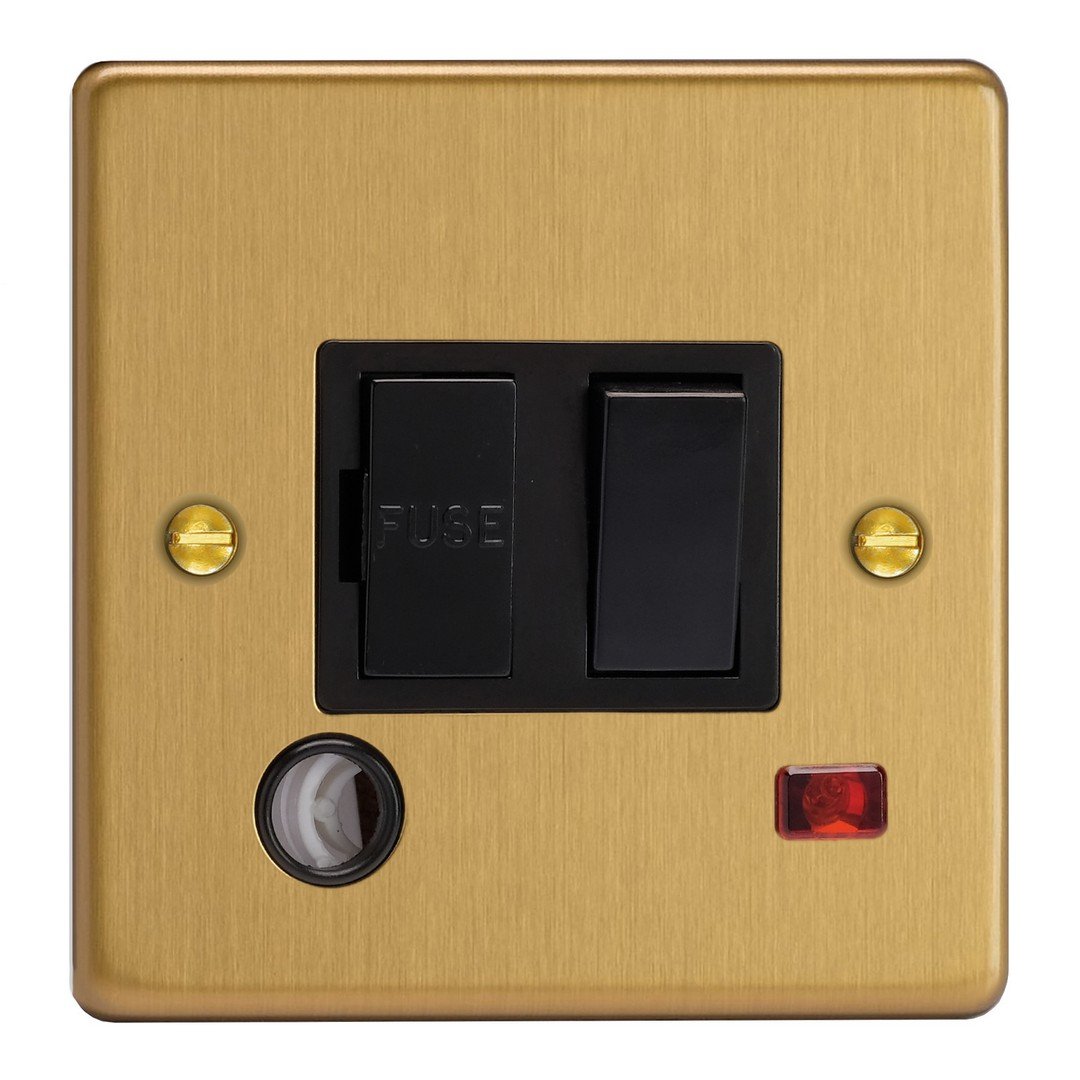

Product Description: 13A Switched Fused Spur with Neon with Flex Outlet
Range: Essential
Finish: Brushed Brass
Product Category: Fused Spur
Insert/Knob Colour: Black Insert
Barcode: 5021575026092
Dimensions: 86x86x30mm
Faceplate Depth: 4mm
Net Weight: 186g
Gross Weight: 188g
Fixing Centres: 60.3mm
Depth from Mounting Face: 22.7mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Double pole switching
Cable clamp and neon indicator light
Holds standard 25.4x6.4mm fuse
Replaceable 13A fuse included
Sleek, low-profile faceplate
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 26th May 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
