Click below to print the data sheet for DHDMISW
Data Sheet
Product Code: DHDMISW

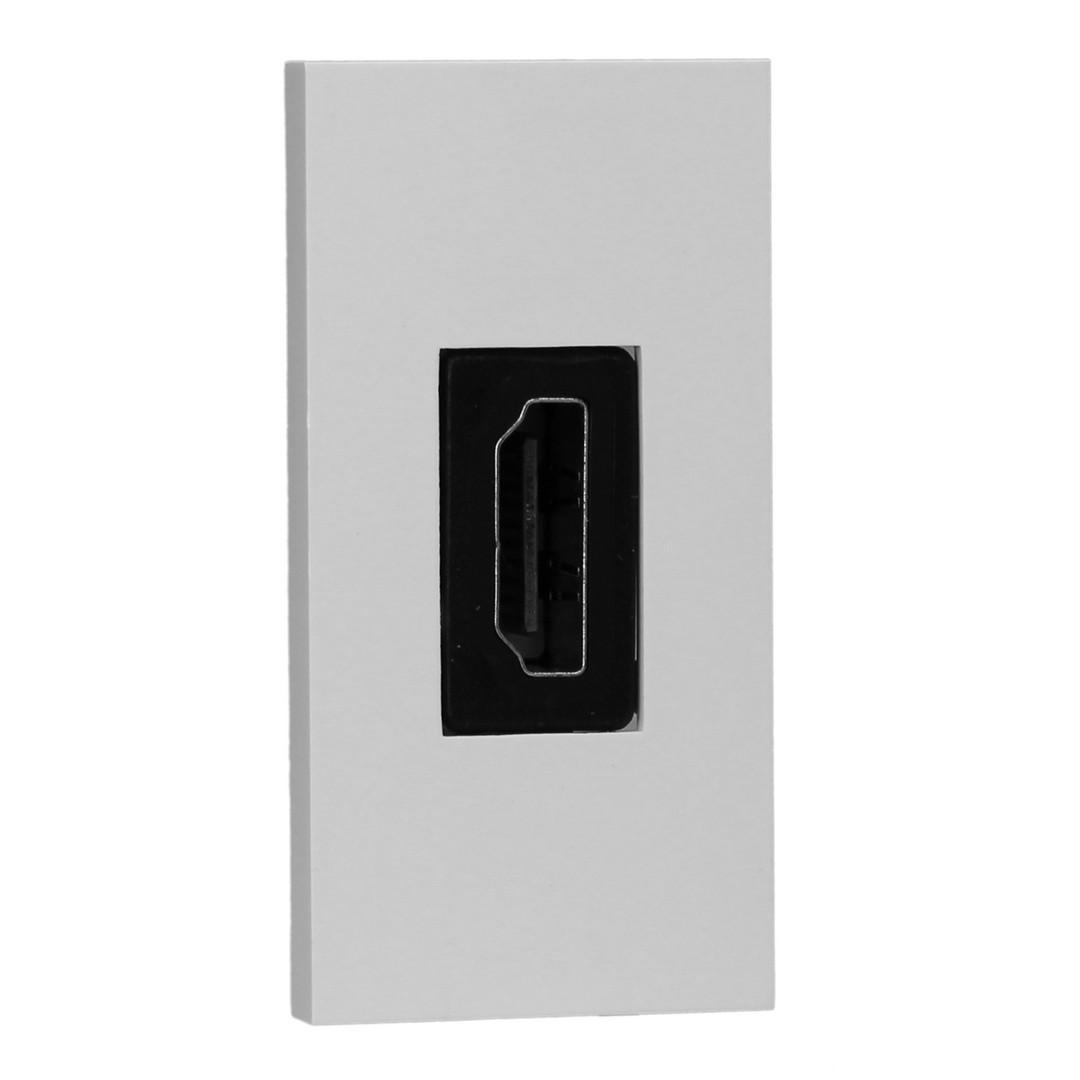

Product Description: HDMI Adapter Straight (1 DataGrid Space)
Range: DataGrid Module
Finish: White
Product Category: DataGrid Modules
Barcode: 5021575027938
Dimensions: 50x25x33mm
Net Weight: 11g
Gross Weight: 13g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: Dependent on fitting
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits.
Applicable Safety Standard: N/A
Commodity Code: 85367000
Product Features
Female to female connection
Clips into any DataGrid faceplate
Combine with other DataGrid modules on one plate
Available in black or white to match the plate inserts
DataGrid Module Collection
DataGrid modules clip into any VARILIGHT DataGrid faceplate, giving you a fully flexible system for network, telephone, TV, audio-visual and USB connections. With a wide choice of modules in black or white, you can create exactly the data combination you need.
White Finish
White DataGrid module, for use alongside products with white inserts.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
15th September 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
