Data sheet: HG1
This product is made to order.
Product features
- V-Dim heavy duty dimming for incandescent lighting, including mains and low voltage halogen
- Dims 60-400W of lighting; add up your lamp wattages to choose the right dimmer
- Rotary on/off and dimming, for 1-way circuits
- For dimmable LEDs choose the V-Pro range instead
- Bevel-edge faceplate, 7mm deep with brass screws, fits a 25mm back box
Product
- Product code
- HG1
- Category
- Halogen Dimmers
- Range
- Classic
- Finish
- Georgian Brass
- Insert / knob colour
- Brass Knob
- Barcode
- 5021575250015
Size and fitting

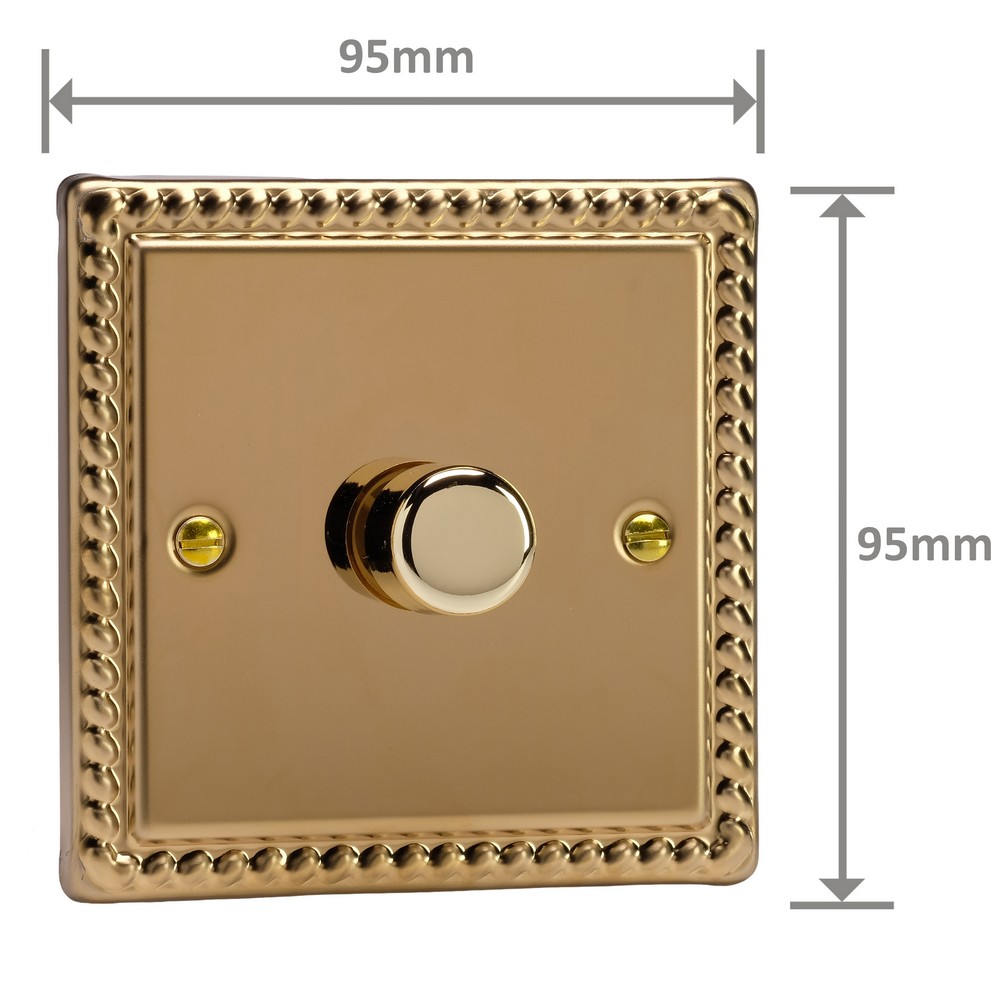

- Dimensions
- 95x95x44mm
- Faceplate depth
- 7mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 16.8mm
- Recommended back box depth
- 25mm
- Net weight
- 158g
- Gross weight
- 160g
Electrical
- Operating voltage
- 220/250V AC
- Maximum load rating
- Halogen: 400W
- Maximum current rating
- 1.7A
- Terminal (Live)
- 3.2mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required. Do not overload. Product Must Be Earthed.
- Applicable safety standard
- BS 5518
- Commodity code
- 85365007
Classic collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
