Data sheet: HK4A

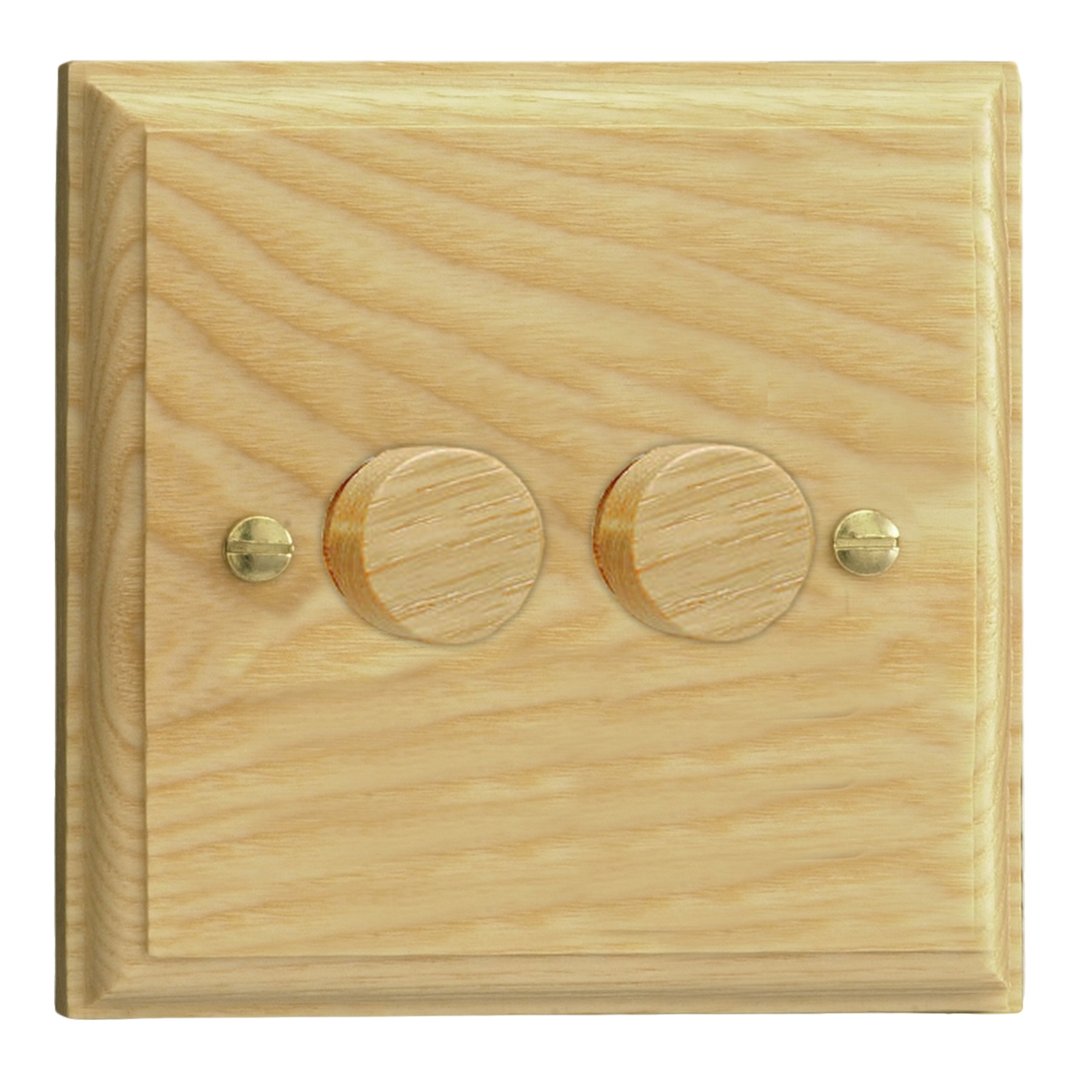

2-Gang 2-Way V-Dim Push On/Off Rotary Dimmer 2 x 40-250W, Kilnwood Ash (HK4A)

Data sheet

HK4A 2-Gang 2-Way V-Dim Push On/Off Rotary Dimmer 2 x 40-250W

Range Kilnwood Finish Ash

Product features

V-Dim heavy duty dimming for incandescent lighting, including mains and low voltage halogen
Dims 40-250W of lighting per circuit; add up your lamp wattages to choose the right dimmer
Push on/off, rotate to dim; use in a 1-way circuit or in a 2-way circuit alongside a standard switch
Remembers your last brightness setting when switched back on
For dimmable LEDs choose the V-Pro range instead
Solid timber faceplate, 15mm deep, fits a 25mm back box

Product

Product code: HK4A
Category: V-Dim Dimmer
Range: Kilnwood
Finish: Ash
Insert / knob colour: Ash Knobs
Barcode: 5021575970197

Size and fitting

Dimensions: 96x96x52mm
Faceplate depth: 15mm
Fixing centres: 60.3mm
Recommended back box depth: 25mm
Net weight: 156g
Gross weight: 158g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: Halogen: 250W
Terminal (Live): 3.2mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable safety standard: BS 5518
Commodity code: 85365005

Declaration of Conformity

Kilnwood collection

The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability.

Ash finish

The natural grain of the Ash finish means that each product features its own distinct patterns and textures, contributing to a completely unique look. Its light finish and natural tones make it easy to match with any contemporary interior.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
