Data Sheet

Product Code: HS10

Product Description: 1-Gang 1-Way V-Dim Rotary Fan Regulator 1 x 40-250W

Range: Value

Finish: Matt Chrome

Product Category: Halogen Dimmers

Insert/Knob Colour: Brushed Steel Knob

Barcode: 5021575450118

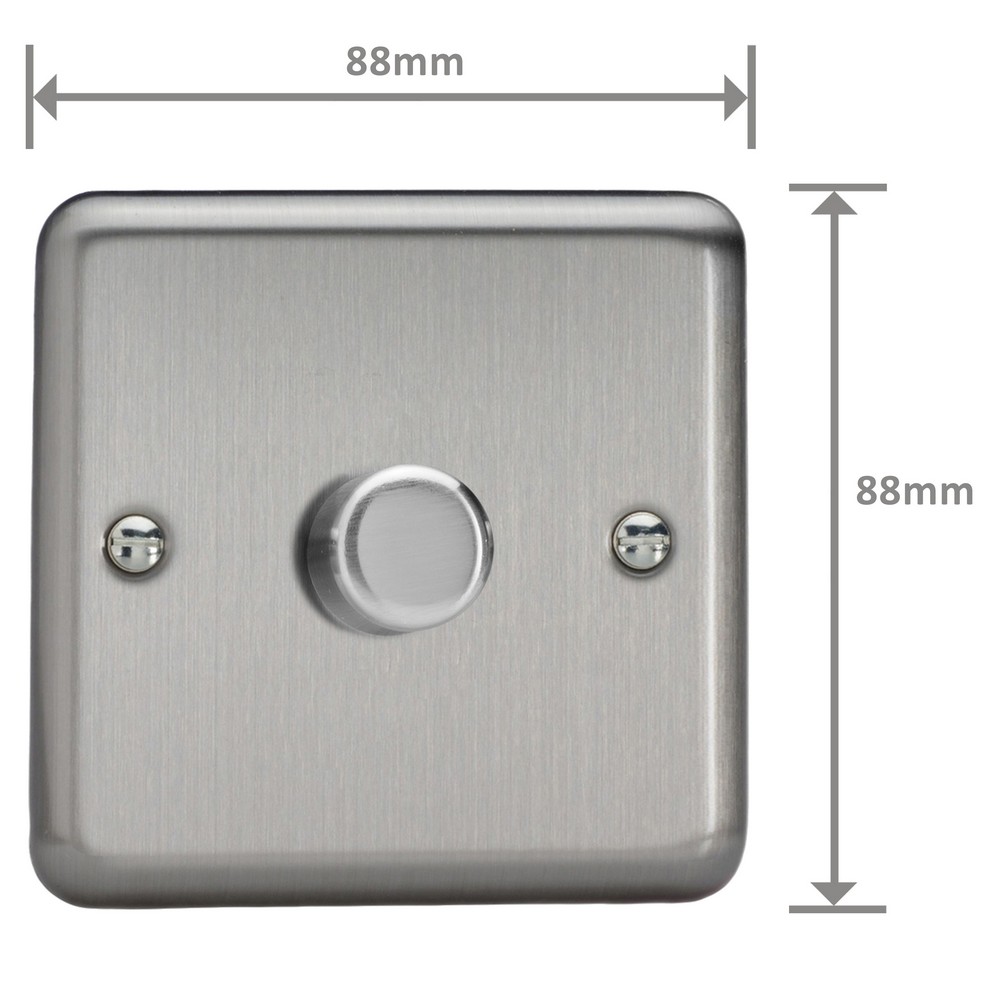

Dimensions: 88x88x44mm

Faceplate Depth: 7mm

Net Weight: 148g

Gross Weight: 150g

Fixing Centres: 60.3mm

Depth from Mounting Face: 17.1mm

Recommended Back Box Depth: 25mm

Operating Voltage: 220/250V AC

Maximum Load Rating: 250W

Maximum Current Rating: 1.1A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS 5518

Commodity Code: 85365007

Declaration of Conformity

Product Features

  V-Dim rotary speed control for ceiling fans

  Rated 40-250W

  Turn the dial to set the fan speed

  Also dims any lighting on the same circuit

  Raised profile faceplate, 7mm deep with chrome screws, fits a 25mm back box

Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

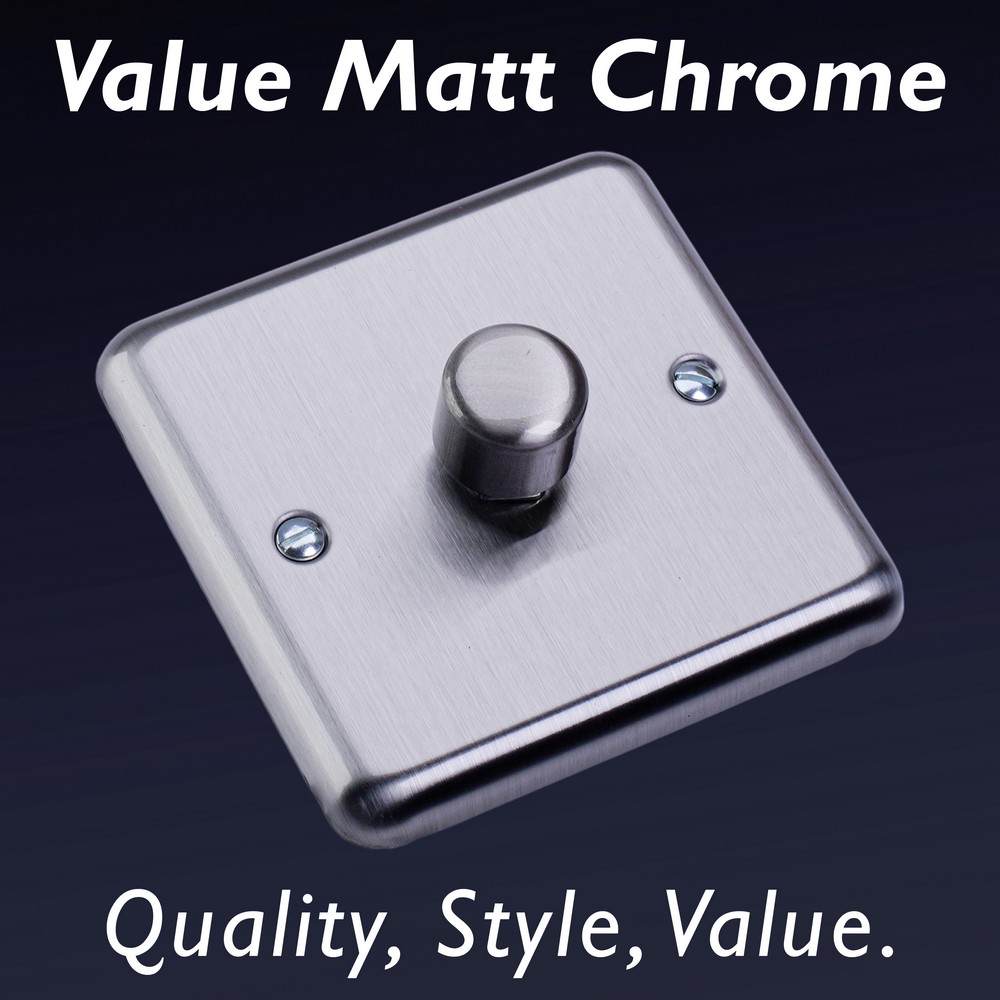

Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers.
