Data Sheet

Product Code: HS43

Product Description: 3-Gang 2-Way V-Dim Push On/Off Rotary Dimmer 3 x 40-250W (Twin Plate)

Range: Value

Finish: Matt Chrome

Product Category: Halogen Dimmers

Insert/Knob Colour: Brushed Steel Knob

Barcode: 5021575450439

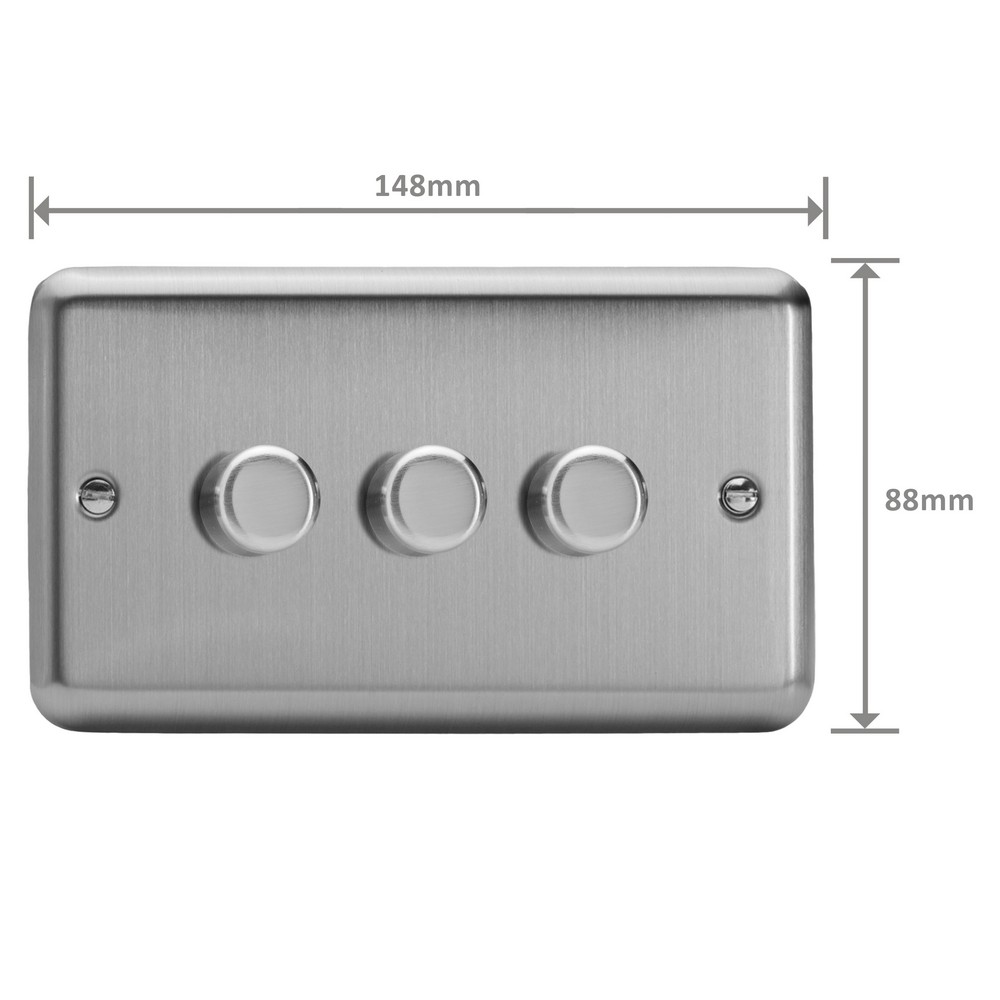

Dimensions: 88x148x46mm

Faceplate Depth: 7mm

Net Weight: 268g

Gross Weight: 270g

Fixing Centres: 120.6mm

Depth from Mounting Face: 17.1mm

Recommended Back Box Depth: 25mm

Operating Voltage: 220/250V AC

Maximum Load Rating: Halogen: 250W

Maximum Current Rating: 1.1A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS 5518

Commodity Code: 85365007

Declaration of Conformity

Product Features

  V-Dim heavy duty dimming for incandescent lighting, including mains and low voltage halogen

  Dims 40-250W of lighting per circuit; add up your lamp wattages to choose the right dimmer

  Push on/off, rotate to dim; use in a 1-way circuit or in a 2-way circuit alongside a standard switch

  Remembers your last brightness setting when switched back on

  For dimmable LEDs choose the V-Pro range instead

  Raised profile faceplate, 7mm deep with chrome screws, fits a 25mm back box

Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers.
