Data Sheet

Product Code: JDEM102.BB

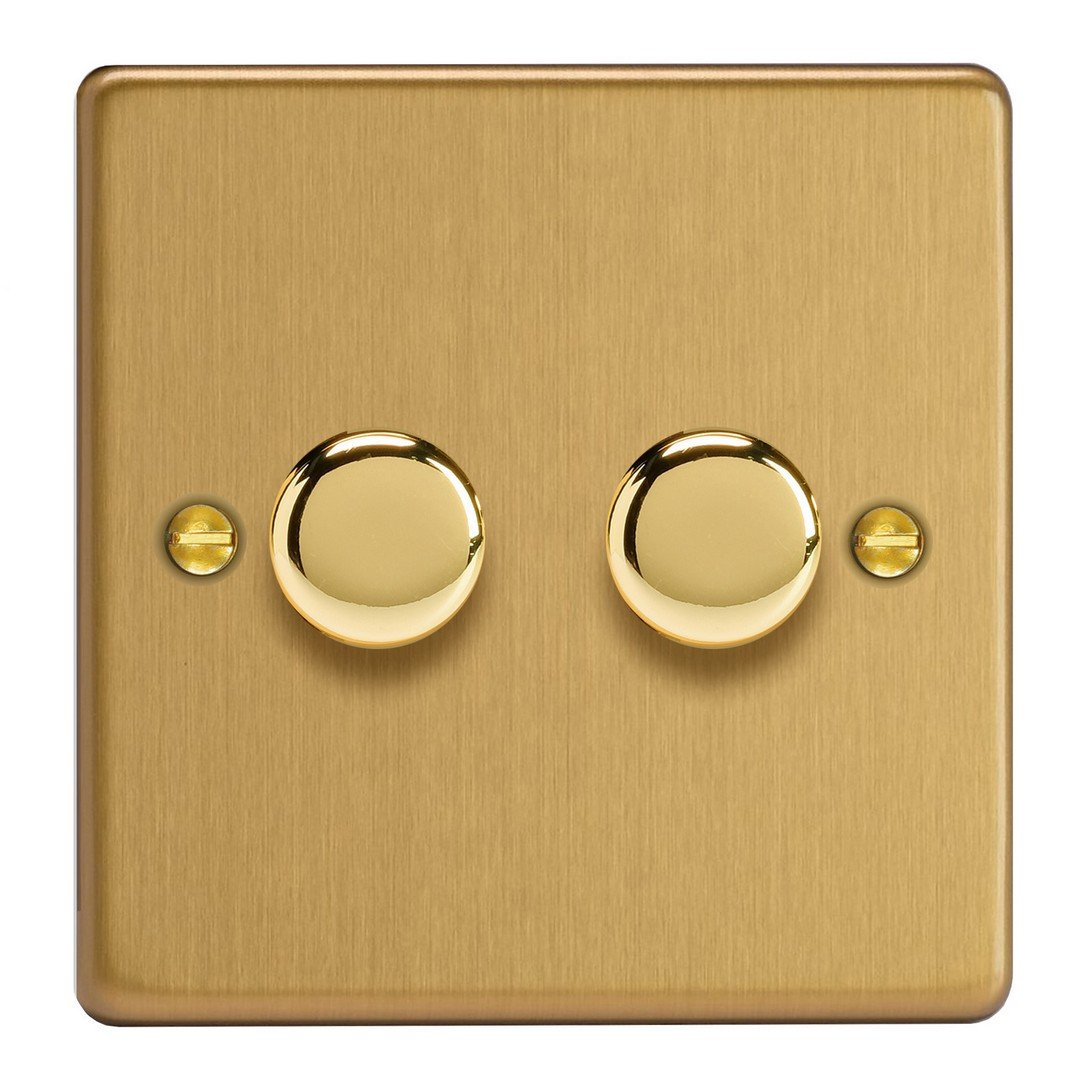

Product Description: 2-Gang V-Pro Multiway Dimmer 2 x 120W LED

Range: Essential

Finish: Brushed Brass

Product Category: LED Dimmers

Insert/Knob Colour: Polished Brass Knob

Barcode: 5021575024753

Dimensions: 86x86x48mm

Faceplate Depth: 4mm

Net Weight: 216g

Gross Weight: 218g

Fixing Centres: 60.3mm

Depth from Mounting Face: 23.6mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: LED: 120W

Maximum Current Rating: 1.3A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365005

Declaration of Conformity

Product Features

  Traditional rotary dimming with Multi-Way operation when used with Companion controllers

  Simplified programming system for easy setup, with adjustable minimum brightness setting and choice of driving modes

  Full dimming control from up to 3 dimmer locations

Essential Collection
The Essential Collection is the go-to range for unbeatable value. Its sleek, low-profile faceplate features clean lines that add a modern, refined touch to any space, while the visible fixing screws create a simple yet practical aesthetic. The Essential Collection delivers on both affordability and quality, making it the perfect solution for any interior.

Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. It is offered with either Black or white inserts and features matching Brass fixing screws. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
