Data Sheet
Product Code: JDSE103S

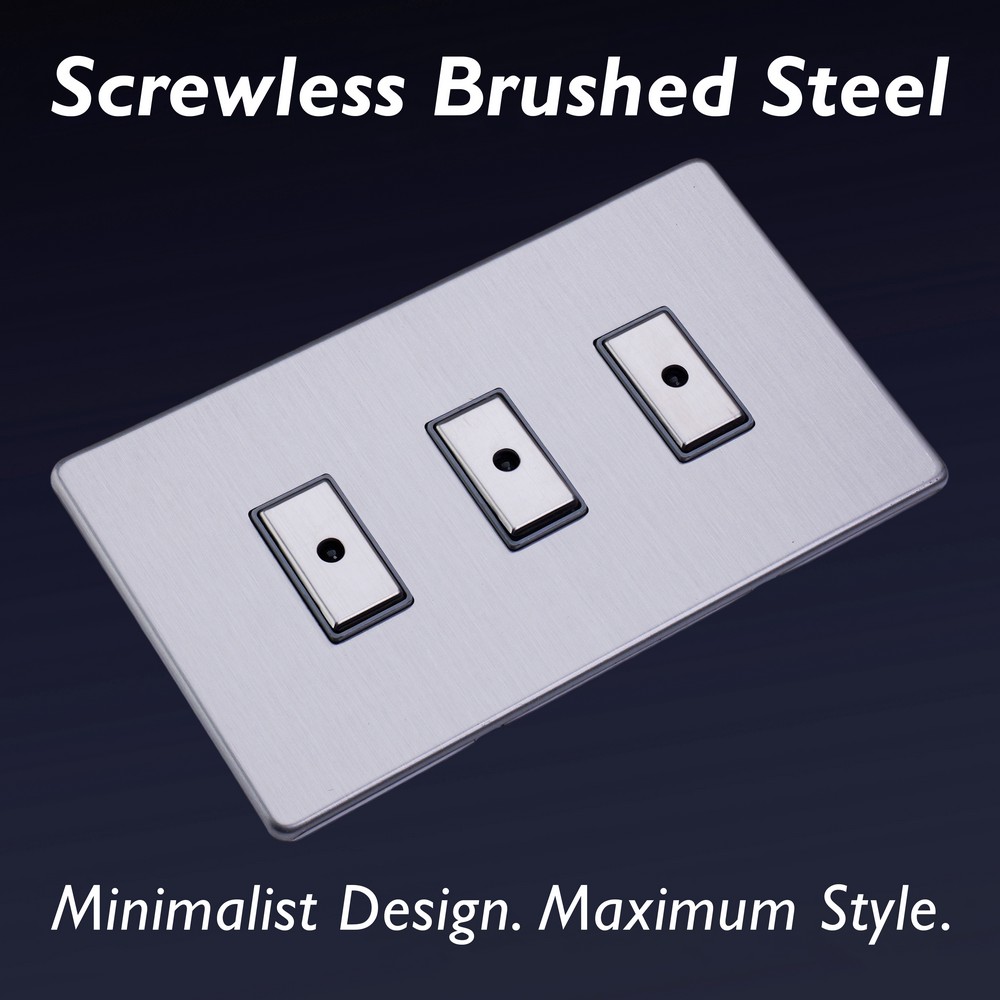

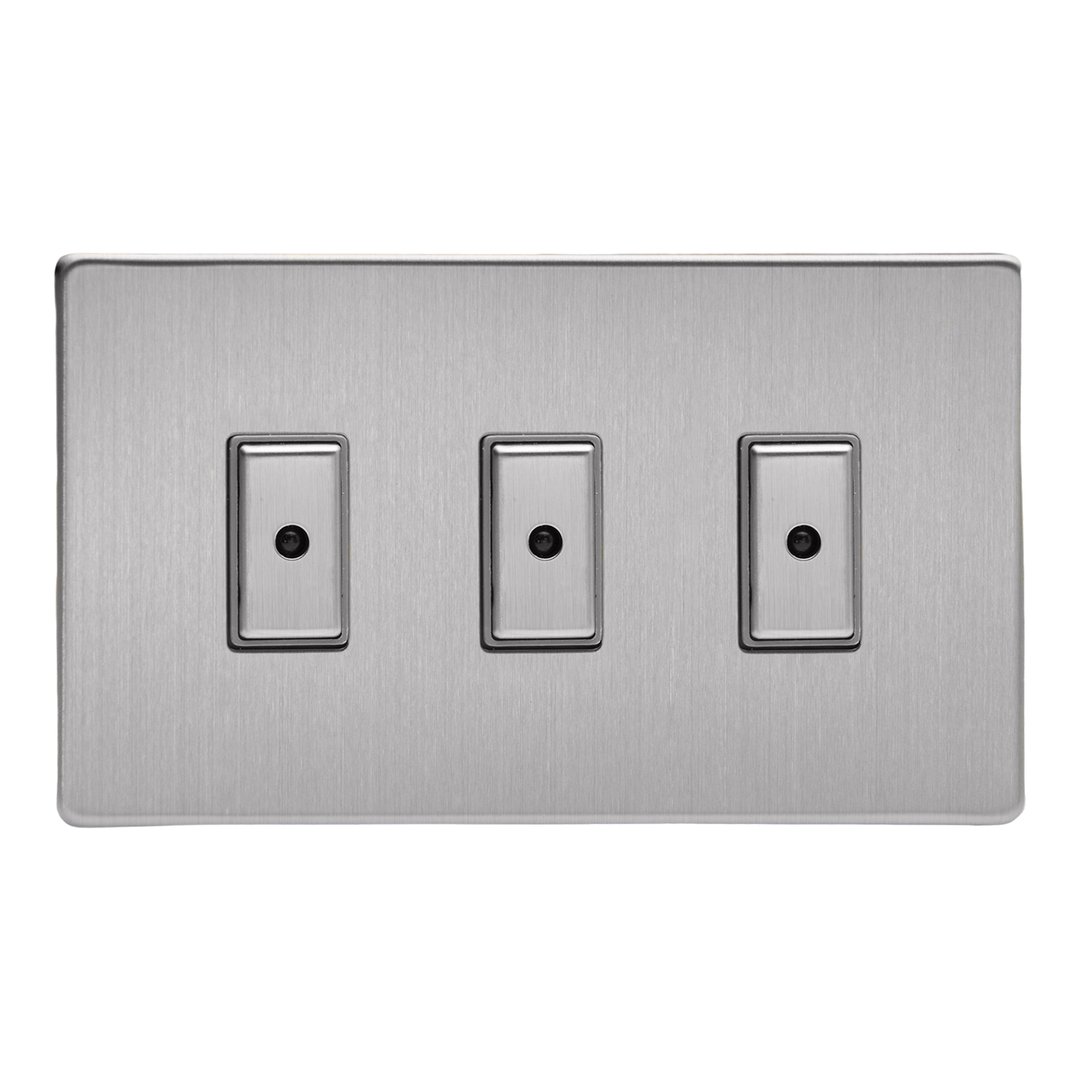

Product Description: 3-Gang 1-Way V-Pro Multi-Point Remote/Tactile Touch Control Master LED Dimmer 3 x 0-100W (1-10 LEDs) (Twin Plate)
Range: Screwless
Finish: Brushed Steel
Product Category: V-Pro Multi-Point Remote (formerly Eclique2) Dimmer
Insert/Knob Colour: Steel Buttons
Barcode: 5021575162172

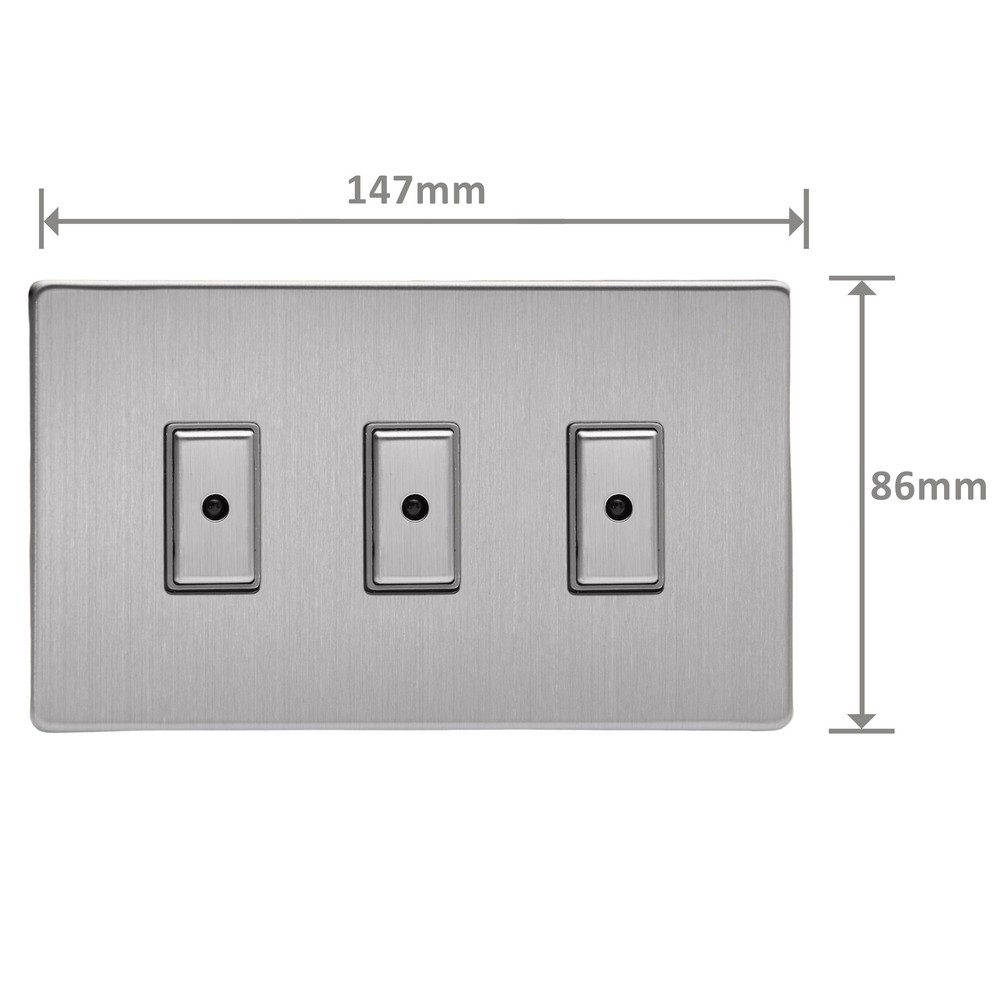

Dimensions: 86x147x27mm
Faceplate Depth: 4mm
Product Weight: g
Fixing Centres: 120.6mm
Depth from Mounting Face: 21.6mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED; 100W (Max. 10 lamps)
Maximum Current Rating: 1.1A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
V-Pro intelligent dimming technology
Tactile touch control or remote control from dedicated handset or spare button on an existing handset (e.g. TV remote)
Soft start feature and intelligent overload protection
1-way or multi-way when used with Multi-Point dimming Supplementary Controller unit(s)
Sleek, low-profile screwless faceplate
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Note: Some LED lamps are not designed for electronic dimmer switches and may remain illuminated even when a dimmer switch is turned off. This can be corrected using one Varilight LEDFix load regulator per circuit (part number YAGF-P).
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers, TRIAC dimmable loads or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365007
10 YEAR GUARANTEE
BRITISH MADE
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 18th January 2021 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
