Data sheet: JGE103
Data sheet
JGE103 3-Gang 1-Way V-Pro Multi-Point Remote/Tactile Touch Control Master LED Dimmer 3 x 0-100W (Twin Plate)
Triple V-Pro Multi-Point LED Dimmer 3 x 0-100W
Product features
- V-Pro Multi-Point intelligent dimming: control the lights from every location on the circuit
- Dims 0-100W of lighting per circuit with no minimum load and no maximum number of lamps
- Touch to dim from the tactile touch pad, or use an infrared handset, even a spare button on the TV remote
- One master with any number of supplementary controllers on the circuit
- Retrofits with standard 3 core and earth wiring
- Programmable driving modes and adjustable minimum brightness for wider LED compatibility
- Unlock LightScene with the YRE8 handset: 4 lighting scenes and 4 circuits controlled individually
- Bevel-edge faceplate, 7mm deep with brass screws, fits a 25mm back box
Product
- Product code
- JGE103
- Category
- LED Dimmers
- Range
- Classic
- Finish
- Georgian Brass
- Insert / knob colour
- Brass Buttons
- Barcode
- 5021575542165
Size and fitting

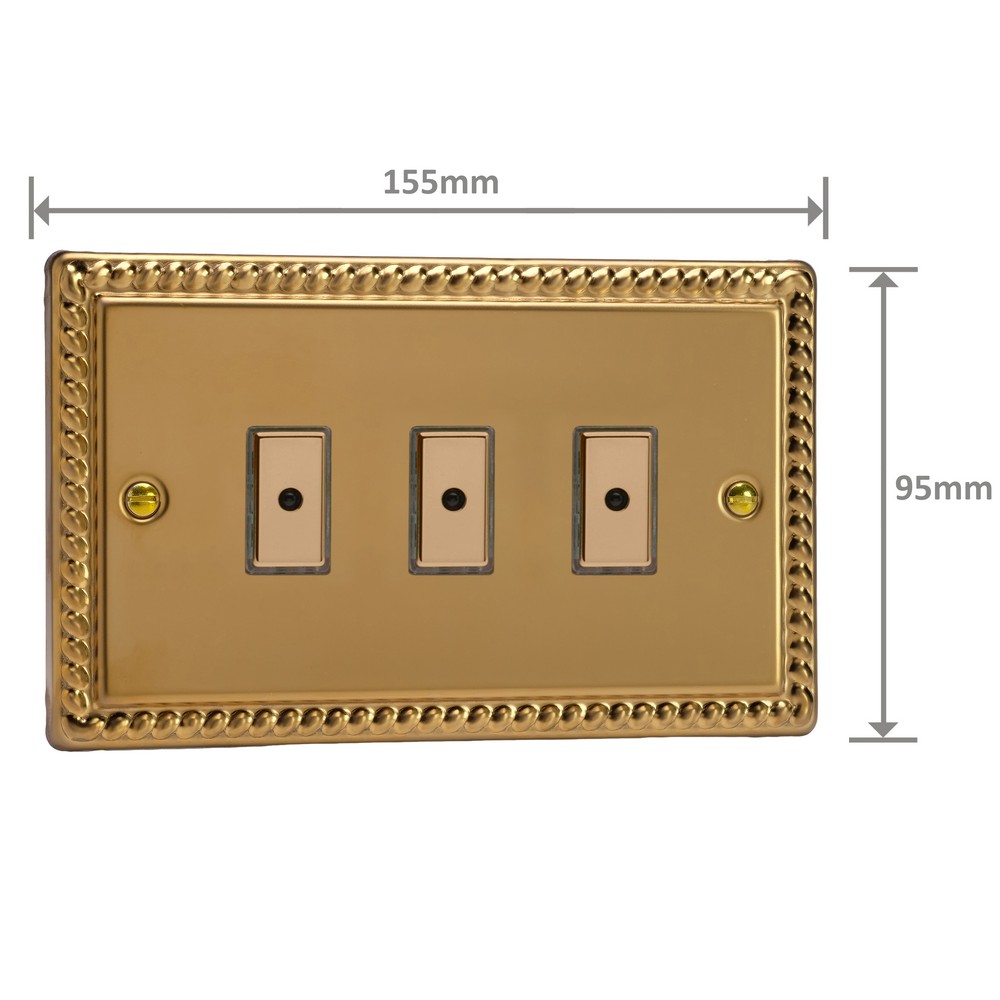

- Dimensions
- 95x155x27mm
- Faceplate depth
- 7mm
- Fixing centres
- 120.6mm
- Depth from mounting face
- 15.4mm
- Recommended back box depth
- 25mm
- Net weight
- 220g
- Gross weight
- 222g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- LED: 100W
- Terminal (Live)
- 3.2mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Note: Some LED lamps are not designed for electronic dimmer switches and may remain illuminated even when a dimmer switch is turned off. This can be corrected using one Varilight LEDFix load regulator per circuit (part number YAGF-P). Do not use masking tape on any decorative products, or install on damp plaster. - Safety advice
- Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669-2-1
- Commodity code
- 85365005
Classic collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

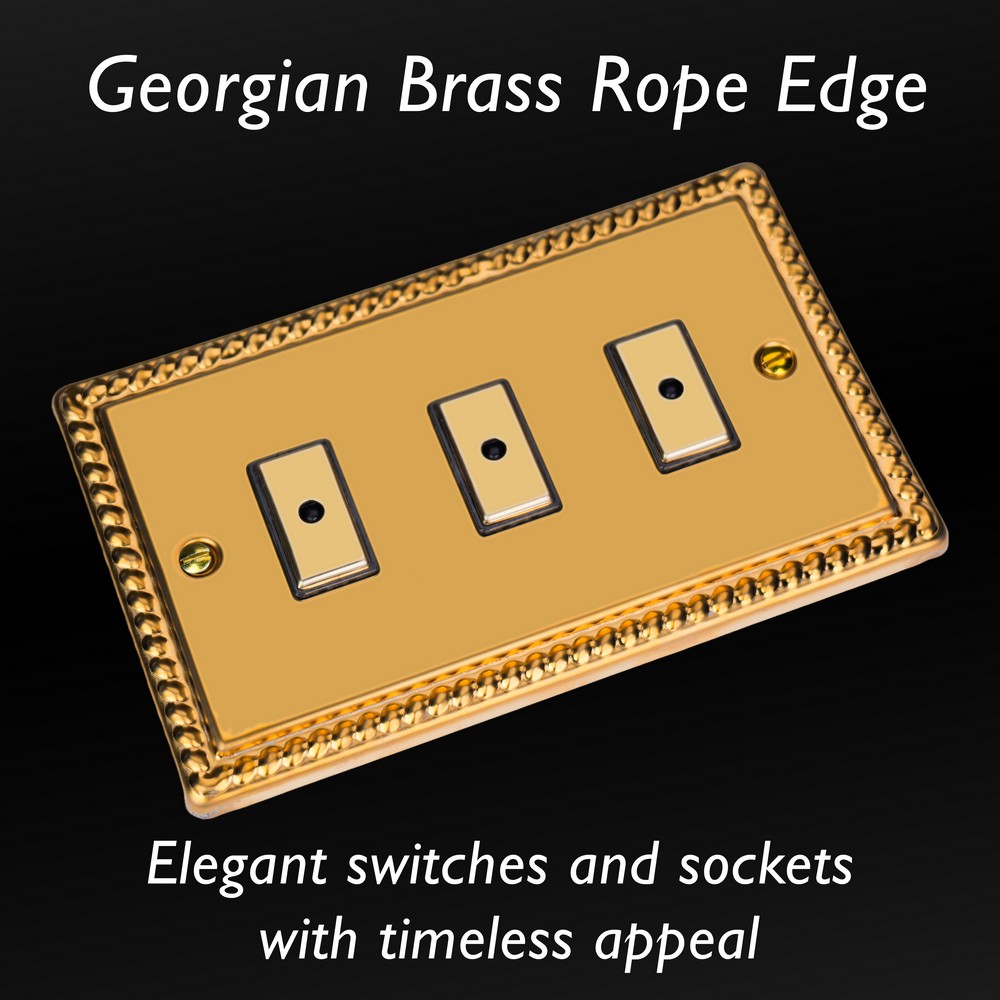

Georgian Brass finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
