Data Sheet
Product Code: MJP120

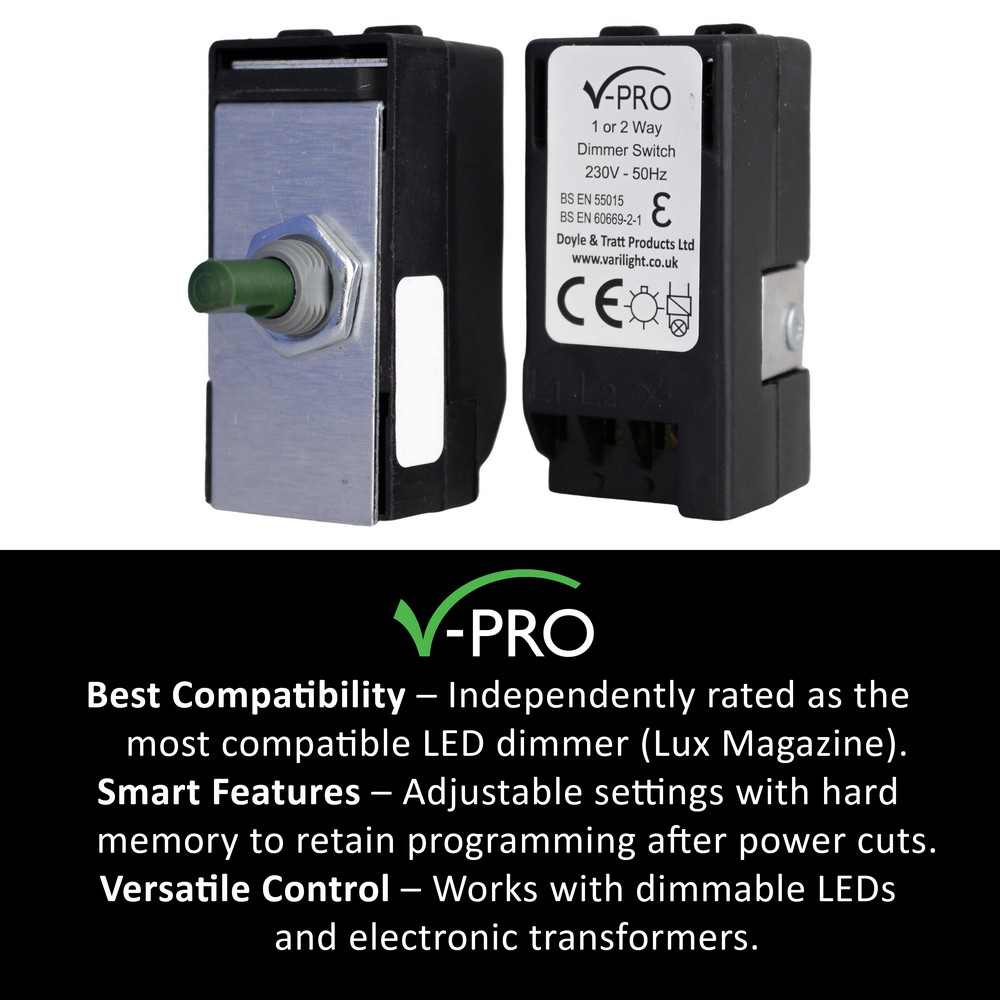

Product Description: 2-Way V-Pro Push on Push off LED Replacement Dimmer Module Kit 1 x 0-120W (1-10 LEDs)
10 YEAR GUARANTEE
BRITISH MADE
Range: Module
Finish: Matrix
Product Category: LED Dimmers
Insert/Knob Colour:
Barcode: 5021575960365

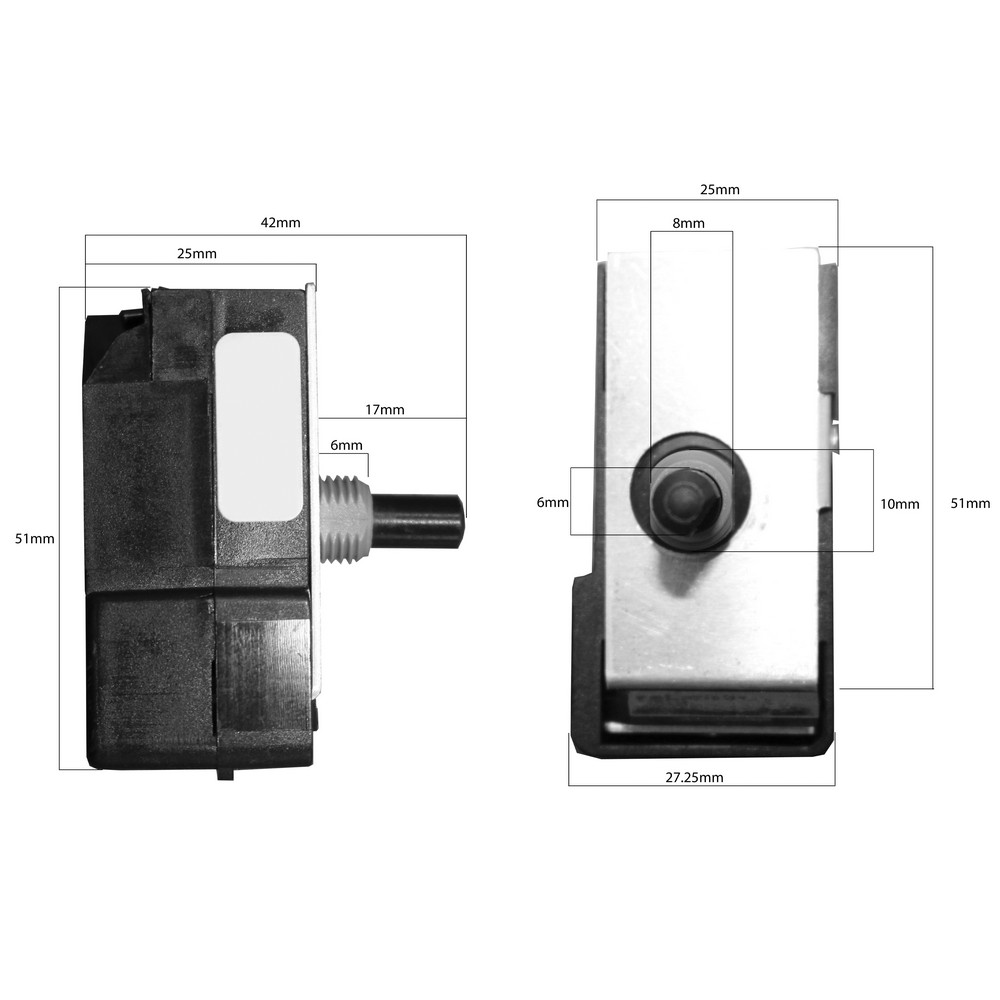

Dimensions: 52x26x42mm (Click here to see full dimensions)
Net Weight: 48g
Gross Weight: 50g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED; 120W (Max. 10 lamps)
Maximum Current Rating: 1.09A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Product Features
Can be used to replace dimmer modules in existing faceplates or in the Matrix dimmer grid system
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes
Suitable for all Matrix Kits
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
Date of Issue: 08th December 2023 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
