Data Sheet
Product Code: MJP300

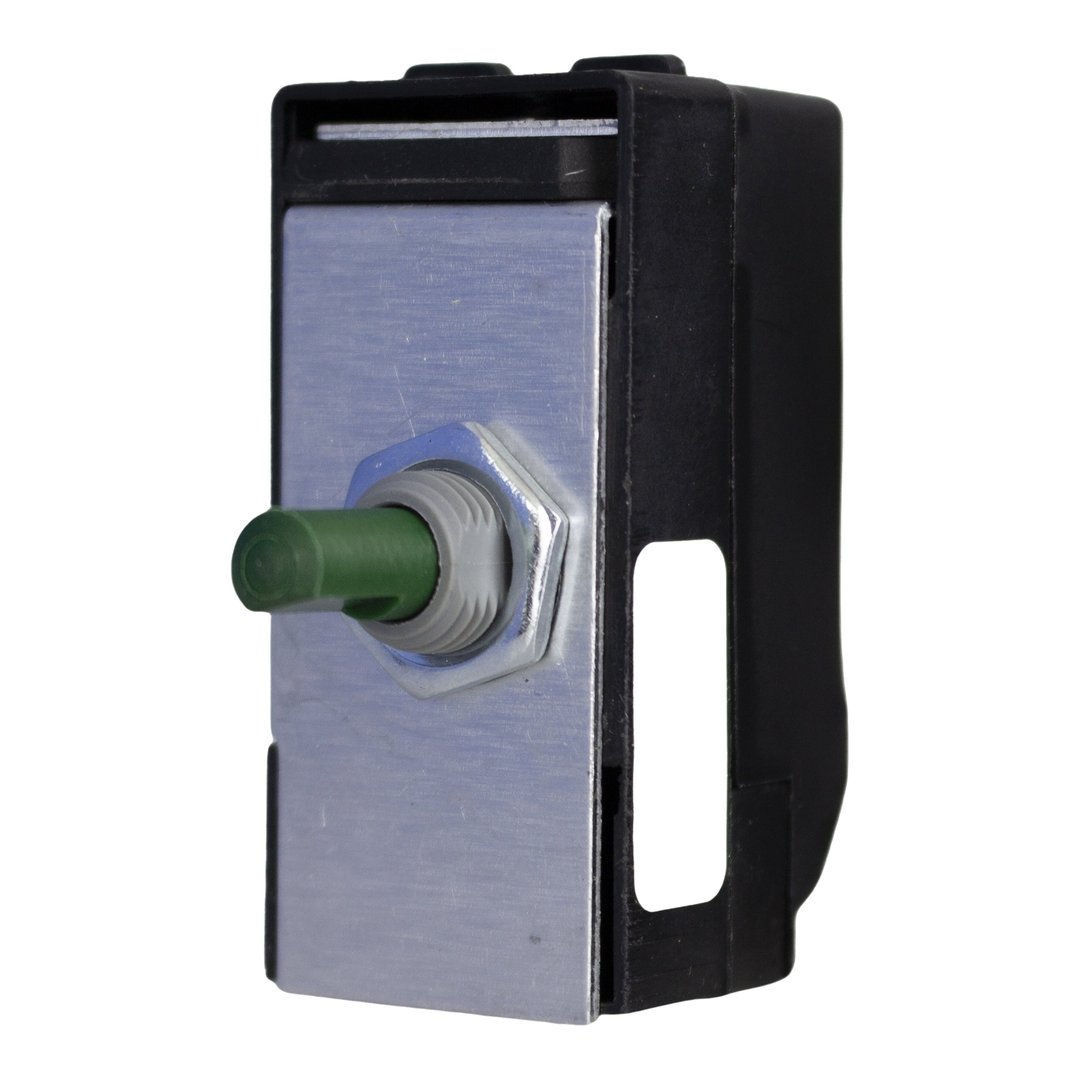

Product Description: 2-Way V-Pro Push On/Off Rotary LED Dimmer 0-300W Replacement Module Kit
Range: Module
Finish: Matrix
Product Category: LED Dimmers
Insert/Knob Colour:
Barcode: 5021575003017

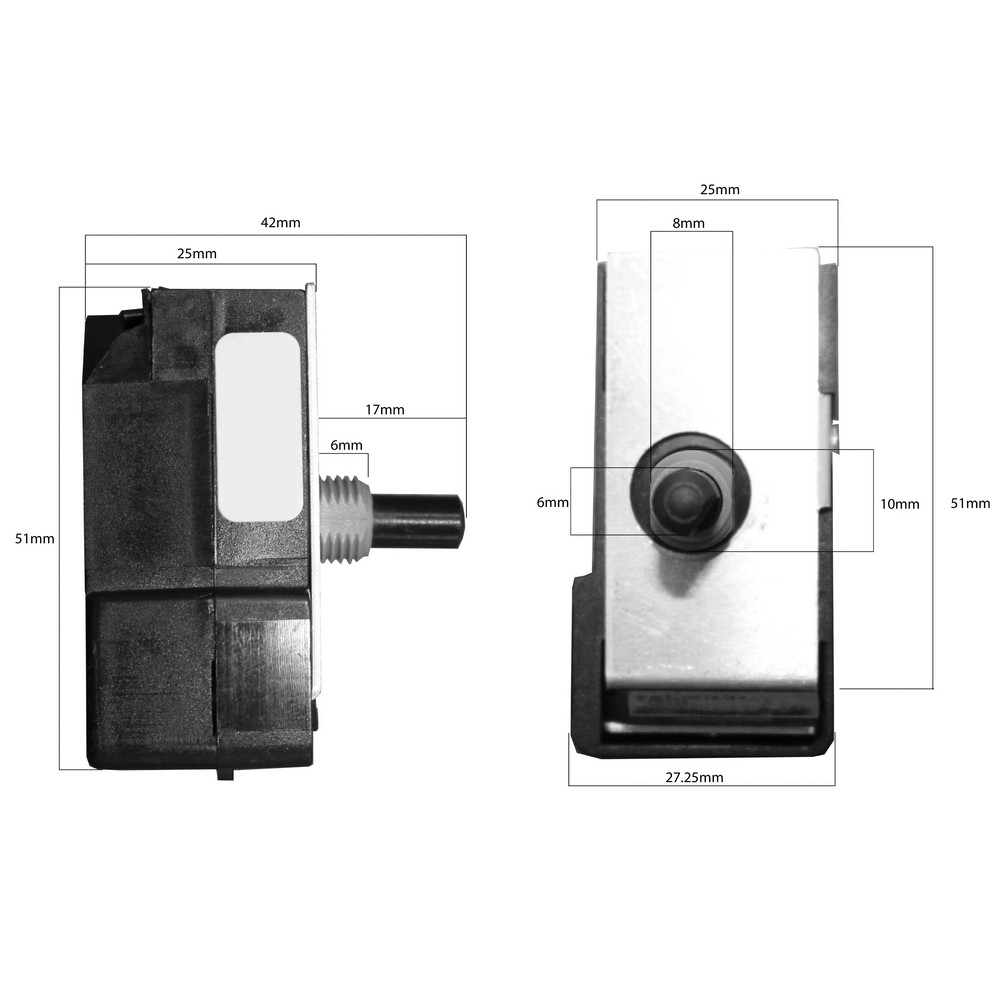

Dimensions: 52x26x42mm
Net Weight: 48g
Gross Weight: 50g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED; 300W
Maximum Current Rating: 2.2A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Product Features
Can be used to replace dimmer modules in existing faceplates or in the Matrix dimmer grid system
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes
Offset spindle for ultimate compatibility
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 13th October 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
