The product data sheet for MKP400 is shown below. Click here to print a copy.
Product Description: 1-Gang 2-Way Push-On/Off Rotary LED Dimmer 1 x 20-400W (Max 40 LEDs) Replacement Module Kit
Product Category: V-Com Module

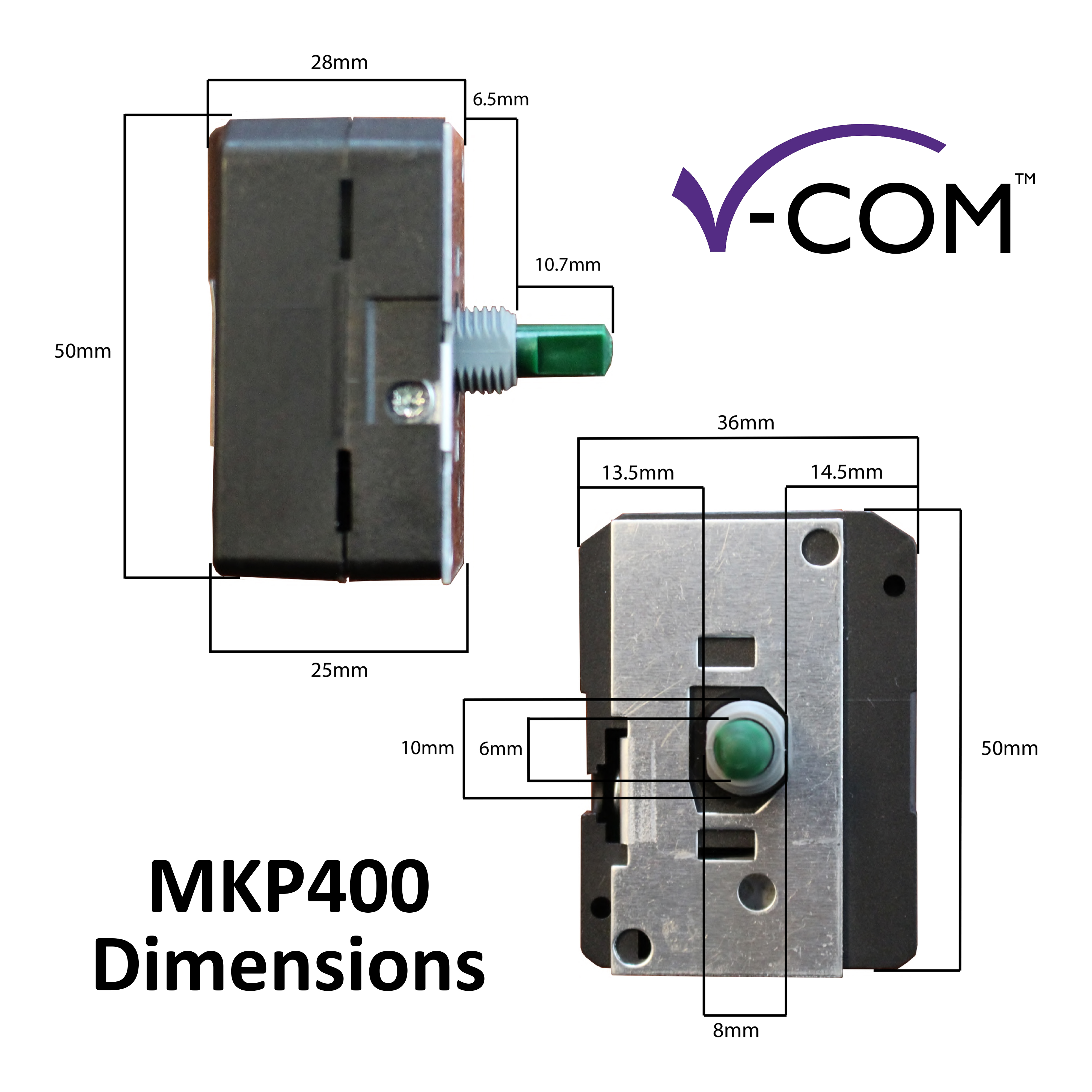

Dimensions: 50x37x45mm (Click here to see full dimensions)
Product Weight: 50g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: N/A
Operating Voltage: 220/250V AC
Maximum Load Rating: LED; 400W (Max. 40 LEDs)
Maximum Current Rating: 1.7A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365007
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 18th February 2019 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
