Data sheet: XBU65W

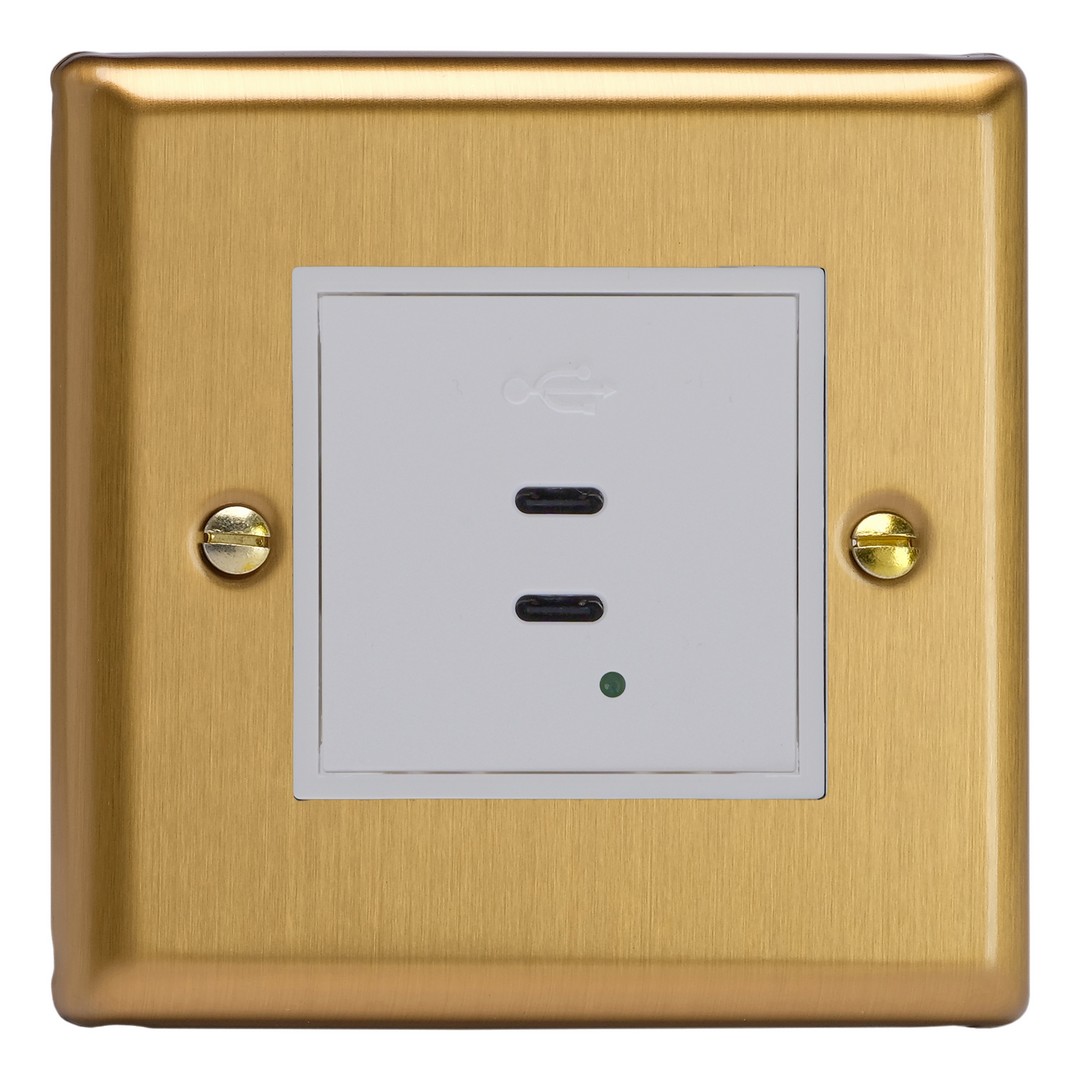

2-Gang 65W USB C+C Charger (Single Plate), Classic Brushed Brass (XBU65W)

Data sheet

XBU65W 2-Gang 65W USB C+C Charger (Single Plate)

Range Classic Finish Brushed Brass

Product features

Extra fast charging at 65W from twin USB-C ports
Power shared intelligently so both devices charge at optimum speed
Supports Power Delivery 3.0, Quick Charge 3.0, AFC, FCP and Apple Fast Charge
100-240V AC input for use anywhere in the world
Frees up mains sockets for other appliances
Bevel-edge faceplate, 8mm deep with brass screws, fits a 47mm back box

Product

Product code: XBU65W
Category: USB C Charging Ports
Range: Classic
Finish: Brushed Brass
Insert / knob colour: White Insert
Barcode: 5021575932638

Size and fitting

Dimensions: 91x91x47mm
Faceplate depth: 8mm
Fixing centres: 60.3mm
Depth from mounting face: 39mm
Recommended back box depth: 47mm
Net weight: 136g
Gross weight: 138g

Electrical

Operating voltage: 100-240VAC 50/60Hz
Terminal (Live): 4mm
Terminal (Neutral): 4mm
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits.
Safety advice: Output: USB C: 5V-3A/9V-3A/12V-3A/15V-3A/20V-3.25A (for a single device), USB C + USB C: 5V-3A (for multiple devices). Product Must Be Earthed.
Applicable safety standard: BS 1363-2; EN 50563:2011
Commodity code: 85366990

Declaration of Conformity

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Brass finish

The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.
