Product Description: 2-Gang 13A Double Pole Switched Socket
10 YEAR GUARANTEE
BRITISH MADE
Range: Screwless
Finish: Brushed Brass
Product Category: Sockets
Insert/Knob Colour: Brass/Black Insert
Barcode: 5021575760453

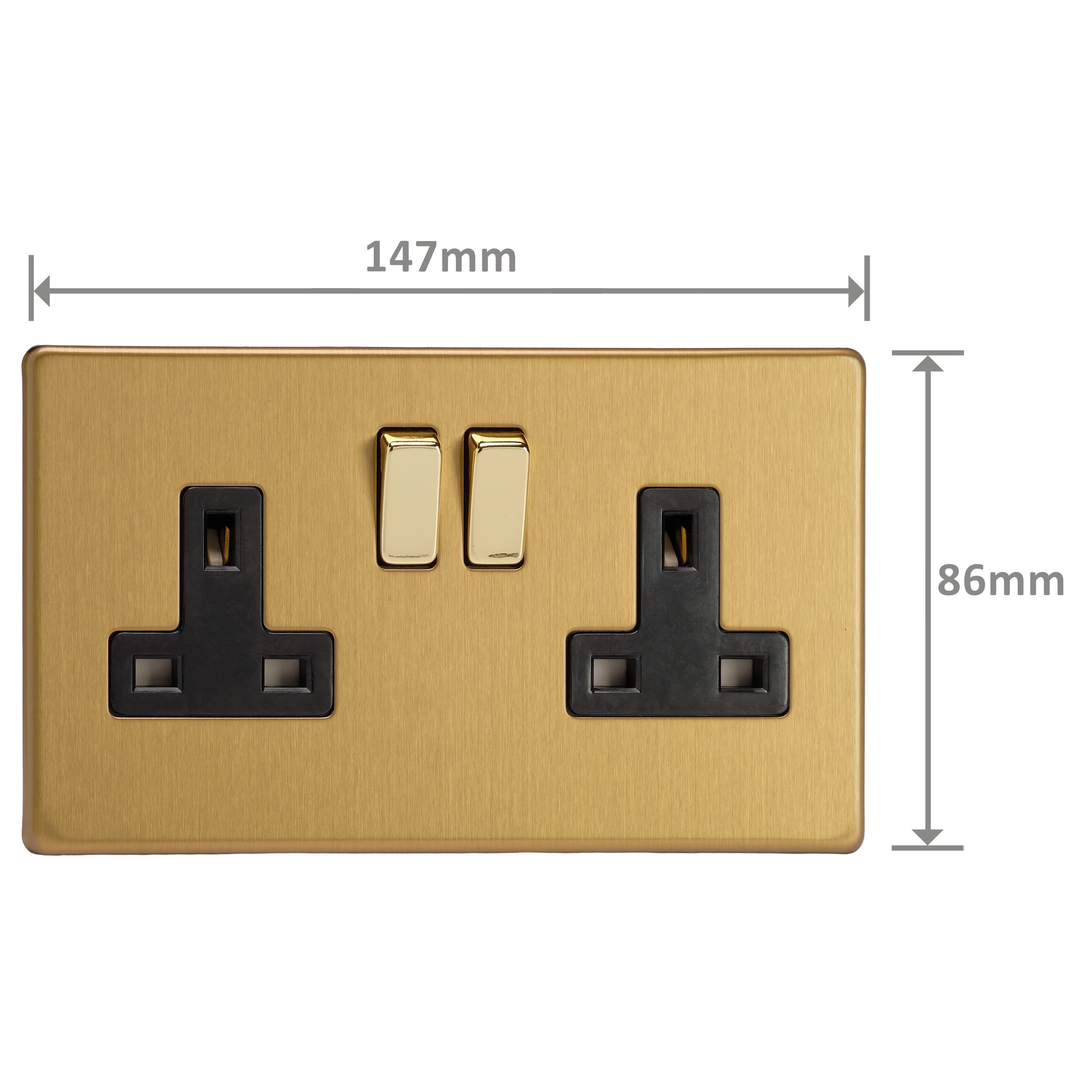

Dimensions: 86x147x32mm
Faceplate Depth: 4mm
Net Weight: 229g
Gross Weight: 232g
Fixing Centres: 120.6mm
Depth from Mounting Face: 22.4mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Product Features
Double pole switching for safer operation
Sleek, low-profile screwless faceplate
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
Date of Issue: 29th March 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
