Product Description: 3-Gang 10A 1- or 2-Way Toggle Switch
10 YEAR GUARANTEE
BRITISH MADE
Range: Screwless
Finish: Brushed Brass
Product Category: Toggle Switches
Insert/Knob Colour: Brass Toggles
Barcode: 5021575760286

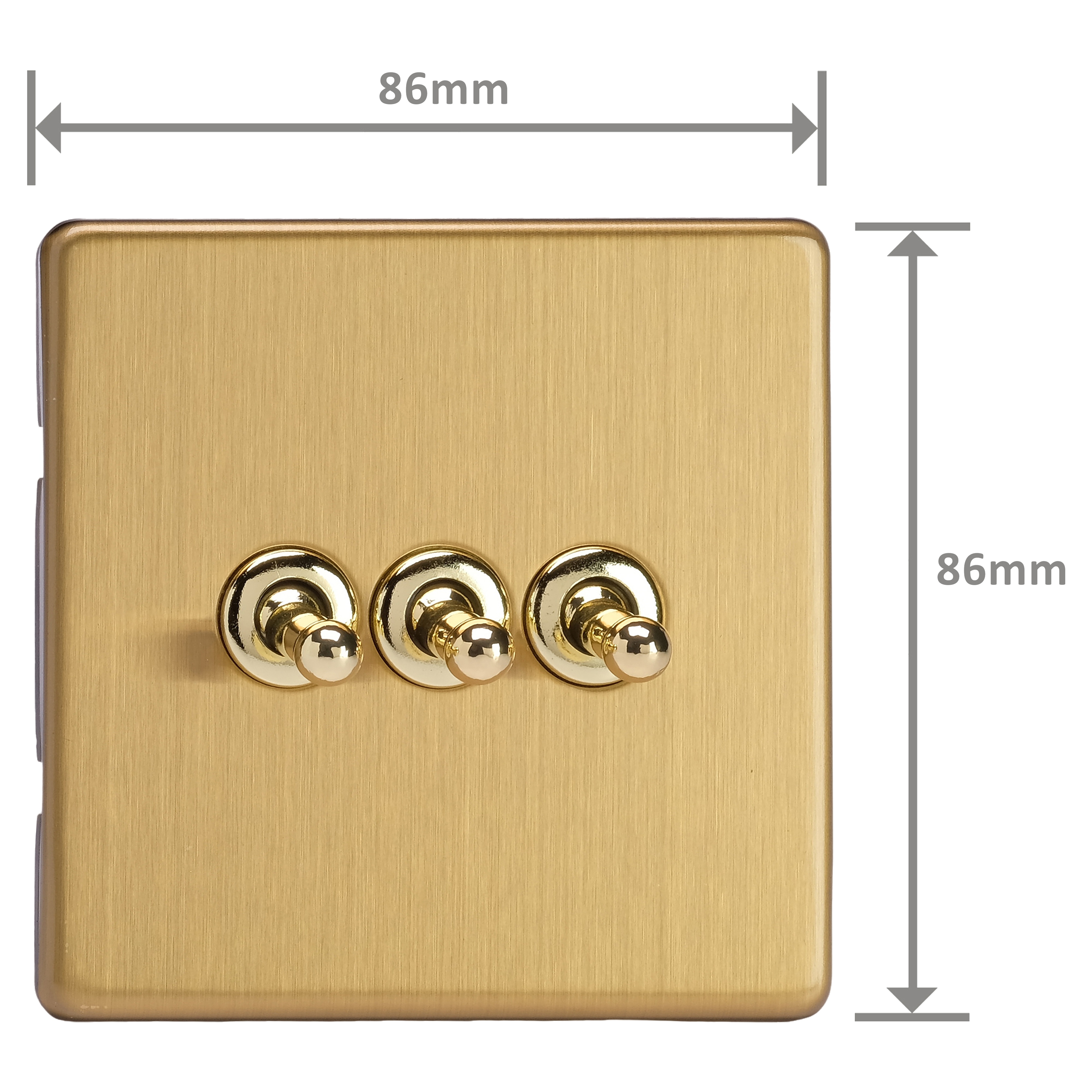

Dimensions: 86x86x36mm
Faceplate Depth: 4mm
Net Weight: 156g
Gross Weight: 158g
Fixing Centres: 60.3mm
Depth from Mounting Face: 17.4mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
1- or 2-Way switching
Suitable for controlling both mains and low voltage lighting
Sleek, low-profile screwless faceplate
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Date of Issue: 19th April 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
