Click below to print the data sheet for XDCPG1
Further information:
Data Sheet
Product Code: XDCPG1

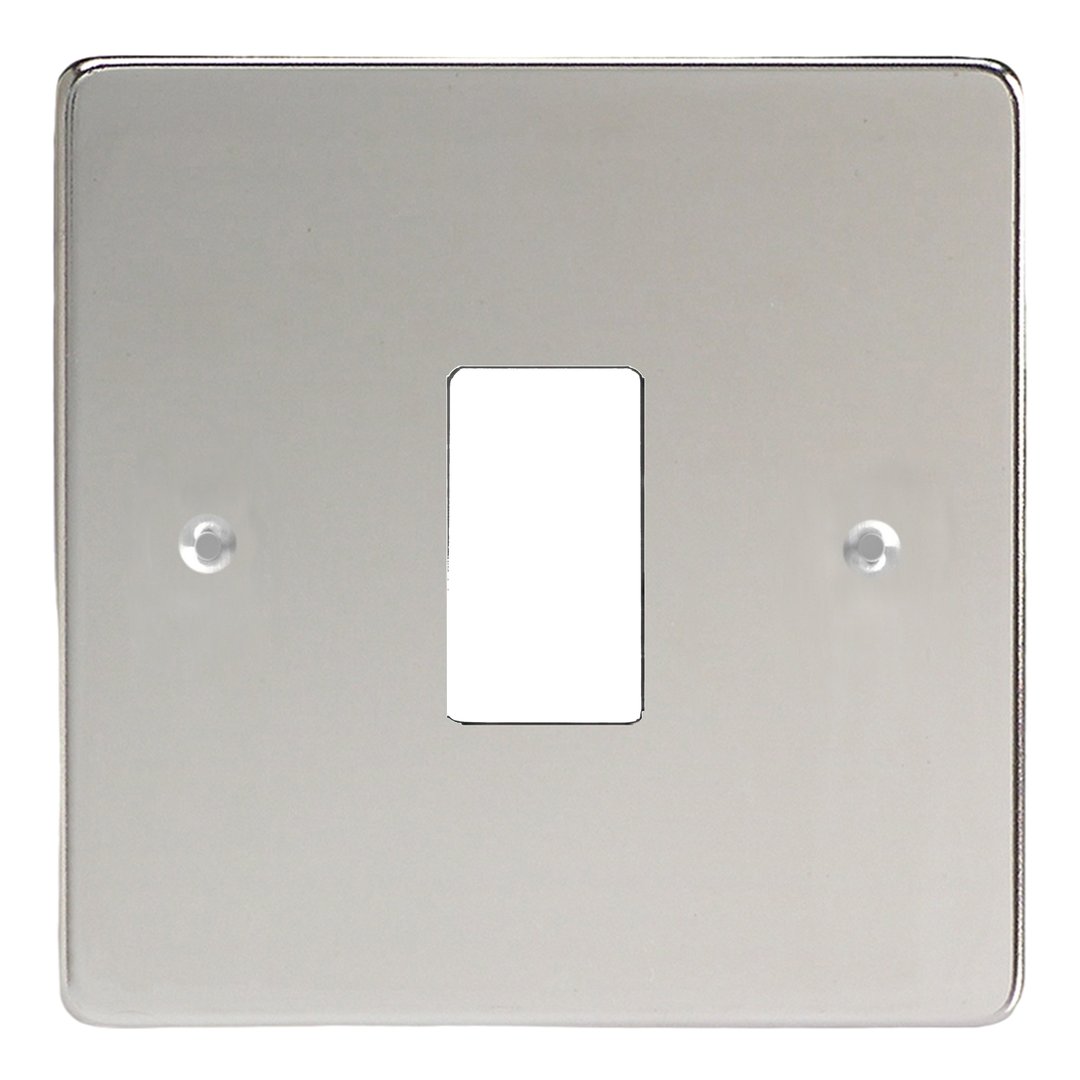

Product Description: 1-Gang Grid Plate (Single Plate)
Range: PowerGrid
Finish: Polished Chrome
Product Category: Grid Faceplates
Insert/Knob Colour:
Barcode: 5021575431735
Dimensions: 86x86x4mm
Faceplate Depth: 4mm
Net Weight: 36g
Gross Weight: 38g
Fixing Centres: 60.3mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: Refer to Grid Modules
Operating Voltage: 230v 50Hz
Maximum Load Rating: N/A
Maximum Current Rating: -
Product Features
Design compliments with Screwless range
Use with 1 x Z3PGRID1
Create your own switch combinations
Intended Applications: Indoor Use Only. Domestic electrical supply.
Safety Advice: Product Must Be Earthed (via PowerGrid Frame).
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
