Data Sheet

Product Code: XDE4U2SB.BS

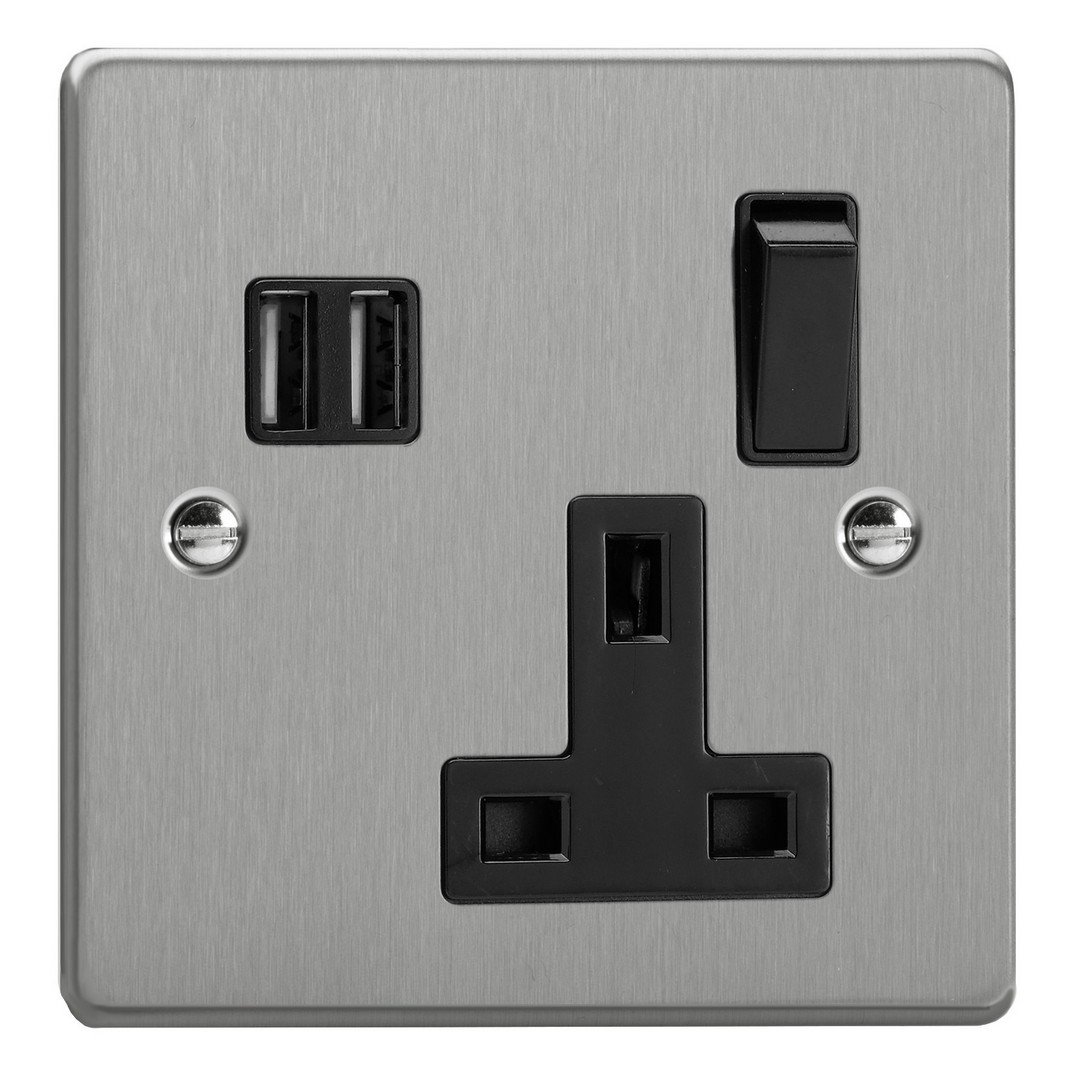

Product Description: 1-Gang 13A Switched Socket with 2 x 17W Shared USB A Charging Ports

Range: Essential

Finish: Brushed Steel

Product Category: Sockets with USB A Charging

Insert/Knob Colour: Black Insert

Barcode: 5021575025644

Dimensions: 86x86x31mm

Faceplate Depth: 7mm

Net Weight: 206g

Gross Weight: 208g

Fixing Centres: 120.6mm

Depth from Mounting Face: 18.5mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: USB: 17W

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Please note recommended back box depth relies on efficient cable routing.. Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  2 x 17W shared USB-A charging ports

  Charges phones, tablets, cameras and more, no plug adaptor needed

  The socket stays free for other appliances

  Able to switch off for added safety and power saving

  Dual earth terminals for a secure earth connection

  Low-profile faceplate, just 7mm deep with chrome screws, fits a 25mm back box

Essential Collection
The Essential Collection is the go-to range for unbeatable value. Its sleek, low-profile faceplate features clean lines that add a modern, refined touch to any space, while the visible fixing screws create a simple yet practical aesthetic. The Essential Collection delivers on both affordability and quality, making it the perfect solution for any interior.

Brushed Steel Finish
The stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. It is offered with black or white inserts and matching steel fixing screws.
