Data sheet: XDE6FONB.MB

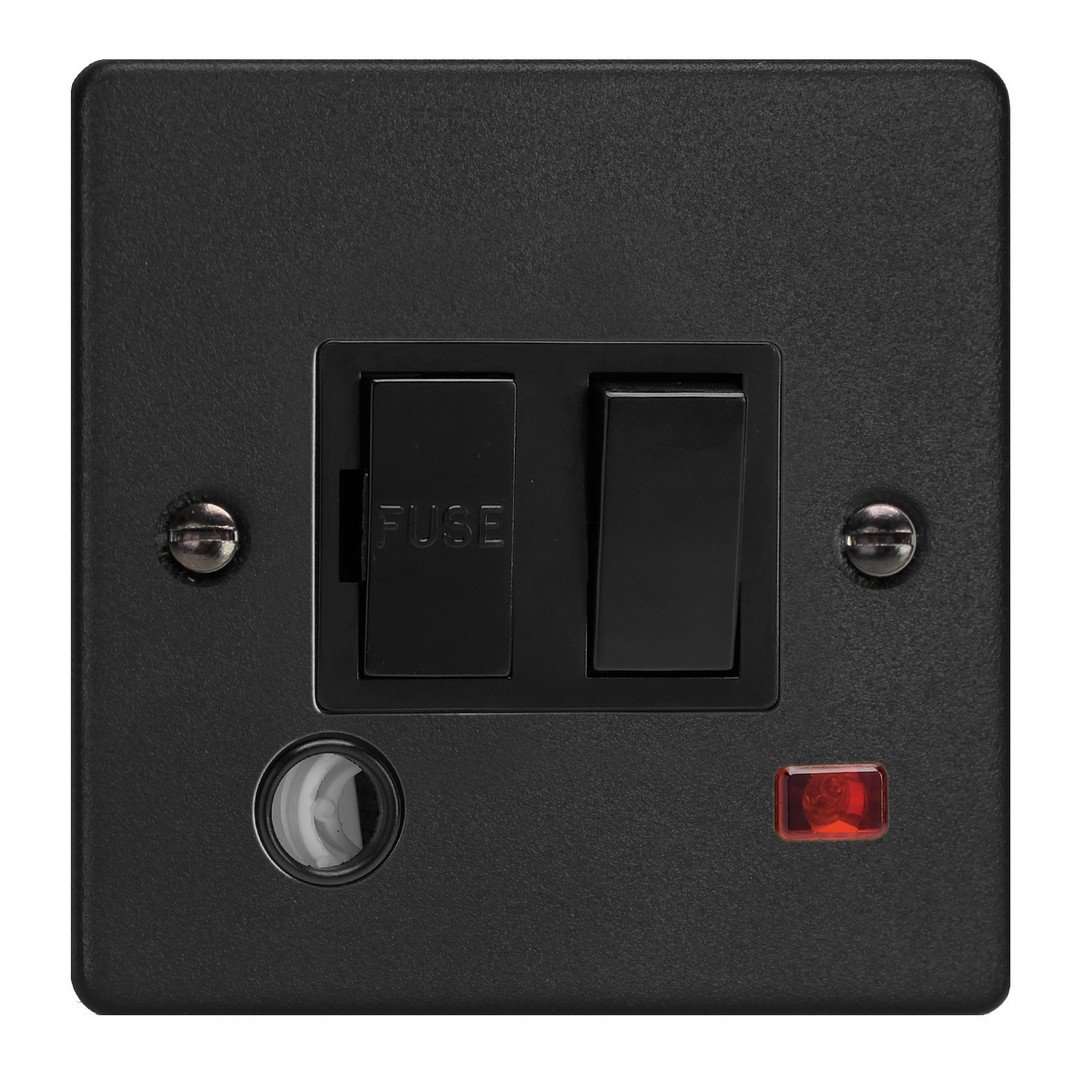

13A Switched Fused Spur with Neon with Flex Outlet, Essential Matt Black (XDE6FONB.MB)

Data sheet

XDE6FONB.MB 13A Switched Fused Spur with Neon with Flex Outlet

Range Essential Finish Matt Black

Product features

Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Cable clamp keeps the flex secure
Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
Low-profile faceplate, just 4mm deep with black screws, fits a 35mm back box

Product

Product code: XDE6FONB.MB
Category: Fused Spur
Range: Essential
Finish: Matt Black
Insert / knob colour: Black Insert
Barcode: 5021575026115

Size and fitting

Dimensions: 86x86x30mm
Faceplate depth: 4mm
Fixing centres: 60.3mm
Depth from mounting face: 22.7mm
Recommended back box depth: 35mm
Net weight: 186g
Gross weight: 188g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: Refer to Fuse Value
Maximum current rating: 13A
Terminal (Live): 4.5mm, capacity 4 x 2.5mm²
Terminal (Neutral): 4.5mm, capacity 4 x 2.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 1363-4
Commodity code: 85389091

Declaration of Conformity

Essential collection

The Essential Collection is the go-to range for unbeatable value. Its sleek, low-profile faceplate features clean lines that add a modern, refined touch to any space, while the visible fixing screws create a simple yet practical aesthetic. The Essential Collection delivers on both affordability and quality, making it the perfect solution for any interior.

Matt Black finish

The Matt Black finish is powder-coated to give a tactile, textured finish, which is tough, durable and resistant to fingerprints. It is offered with black plastic inserts and matching black screws.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
