Data Sheet

Product Code: XDI45PNBS

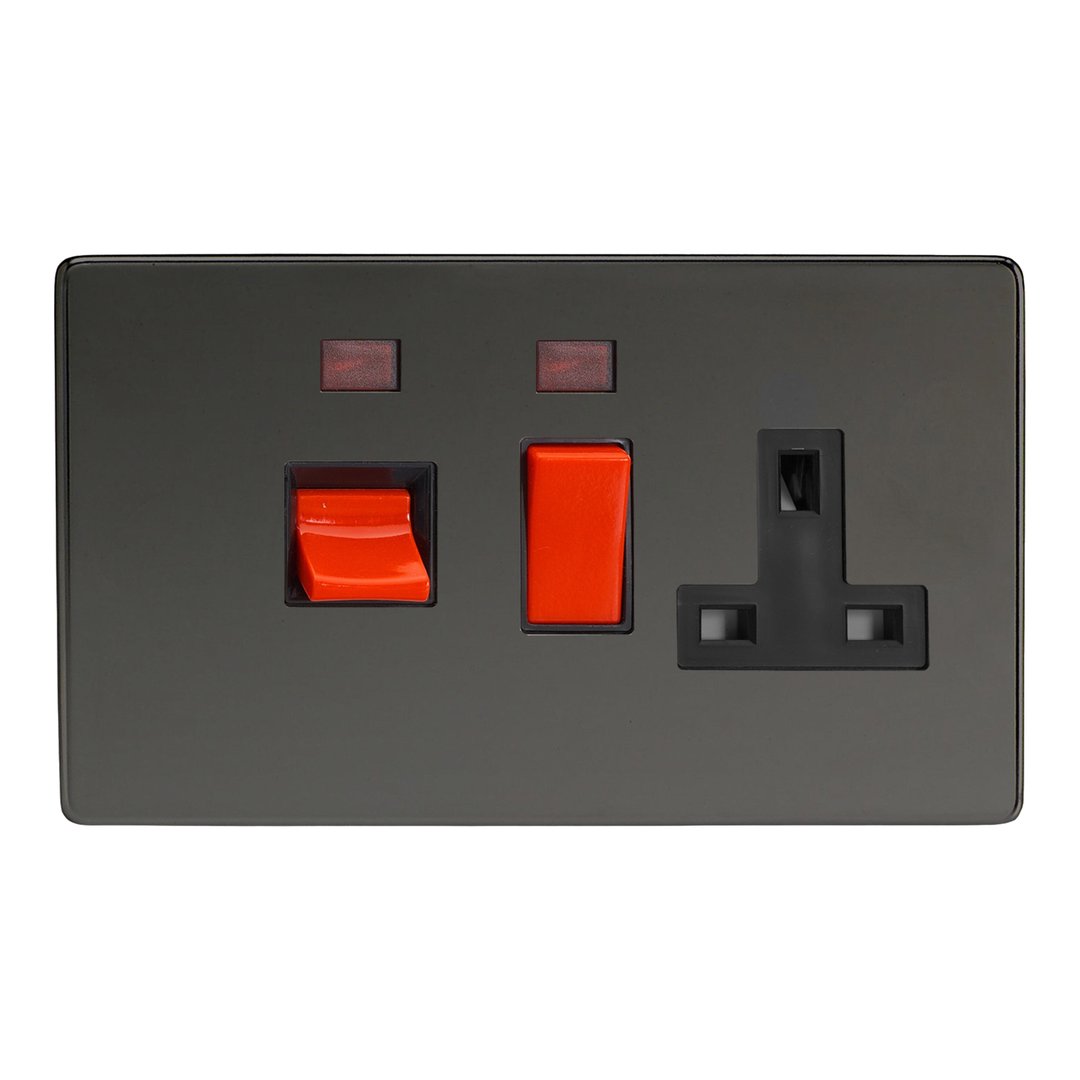

Product Description: 45A Cooker Panel with Neon with 13A Double Pole Switched Socket Outlet (Red Rocker)

Range: Screwless

Finish: Iridium

Product Category: Cooker Switches

Insert/Knob Colour: Black/Red Insert

Barcode: 5021575441055

Dimensions: 86x147x35mm

Faceplate Depth: 4mm

Net Weight: 340g

Gross Weight: 342g

Fixing Centres: 120.6mm

Depth from Mounting Face: 24.9mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Cooker Switch: 45A | Socket: 13A

Maximum Current Rating: 45A

Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Earth) Diameter: 6.4mm; Capacity: 2 x 10mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 4177

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Double pole switching

  Double sized plate with 13A socket

  Neon indicator light

  Sleek, low-profile screwless faceplate

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Iridium Finish
The Iridium Black finish lends an air of sophistication and modernity with its deep, lustrous tone adding a touch of drama to stylish interiors. Supplied with black inserts and matching iridium rockers. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
