Data sheet: XDL6NWS

13A Switched Fused Spur with Neon, Part M Black & White (XDL6NWS)

Data sheet

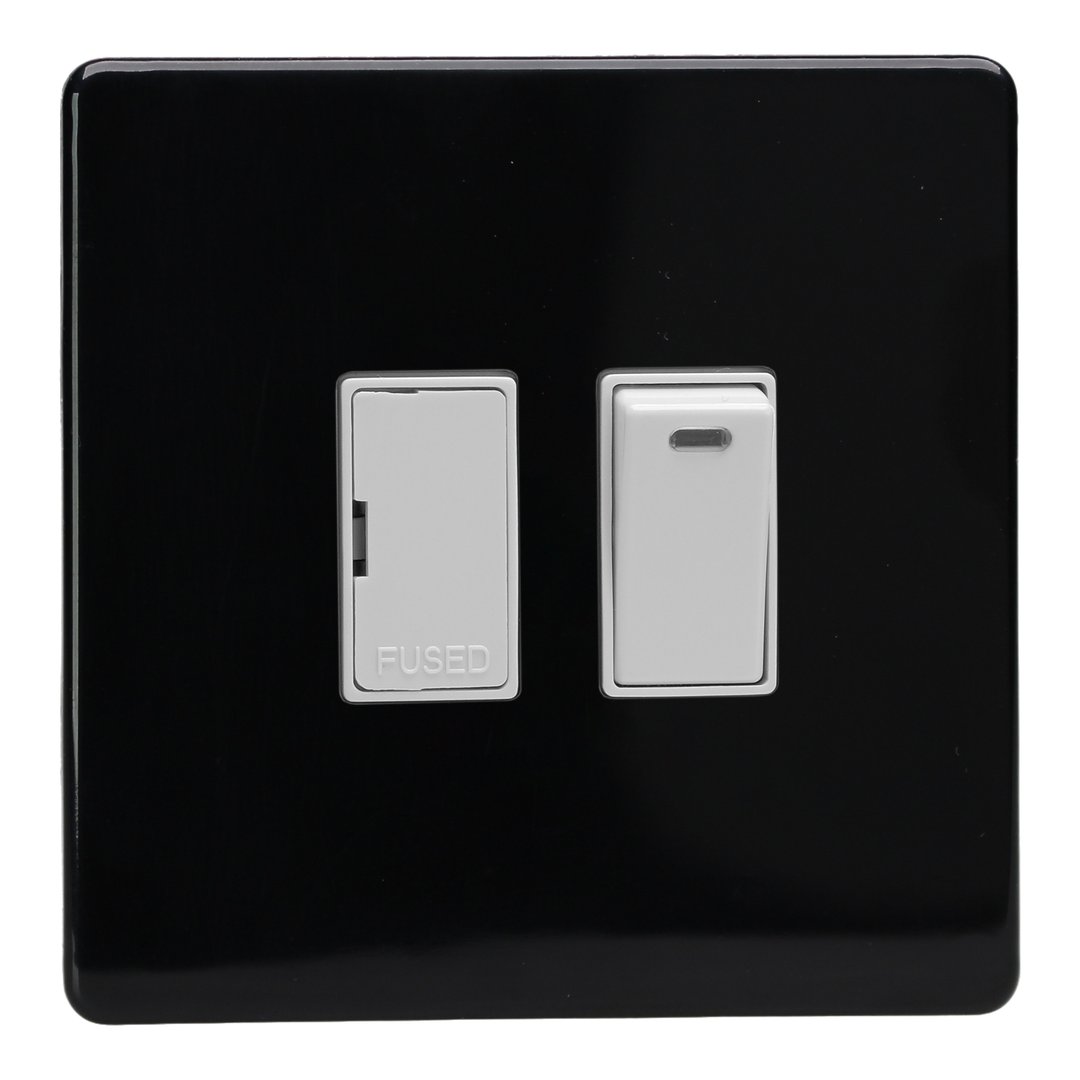

XDL6NWS 13A Switched Fused Spur with Neon

Range Part M Finish Black-White

Product features

Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
High-contrast black faceplate, just 4mm deep with brass screws, fits a 35mm back box

Product

Product code: XDL6NWS
Category: Fused Spur Connection Units
Range: Part M
Finish: Black-White
Insert / knob colour: White Insert
Barcode: 5021575010602

Size and fitting

Dimensions: 86x86x30mm
Faceplate depth: 4mm
Fixing centres: 60.3mm
Depth from mounting face: 22.2mm
Recommended back box depth: 35mm
Net weight: 136g
Gross weight: 138g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: Refer to Fuse Value
Maximum current rating: 13A
Terminal (Live): 4.5mm, capacity 4 x 2.5mm²
Terminal (Neutral): 4.5mm, capacity 4 x 2.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 1363-4
Commodity code: 85389091

Declaration of Conformity

Part M collection

The Part M range offers high-contrast wiring accessories that help visually impaired users locate and operate switches and sockets more easily, supporting compliance with Part M of the Building Regulations. Each product pairs a black faceplate with contrasting white rockers and inserts, and extra large rockers are available on many of the switches for easier operation.

Black-White finish

A black faceplate with contrasting white rockers, inserts and dimmer knobs gives the high visual contrast recommended by Part M of the Building Regulations, helping visually impaired users find and operate switches and sockets.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
