Data Sheet

Product Code: XDM5U2BS

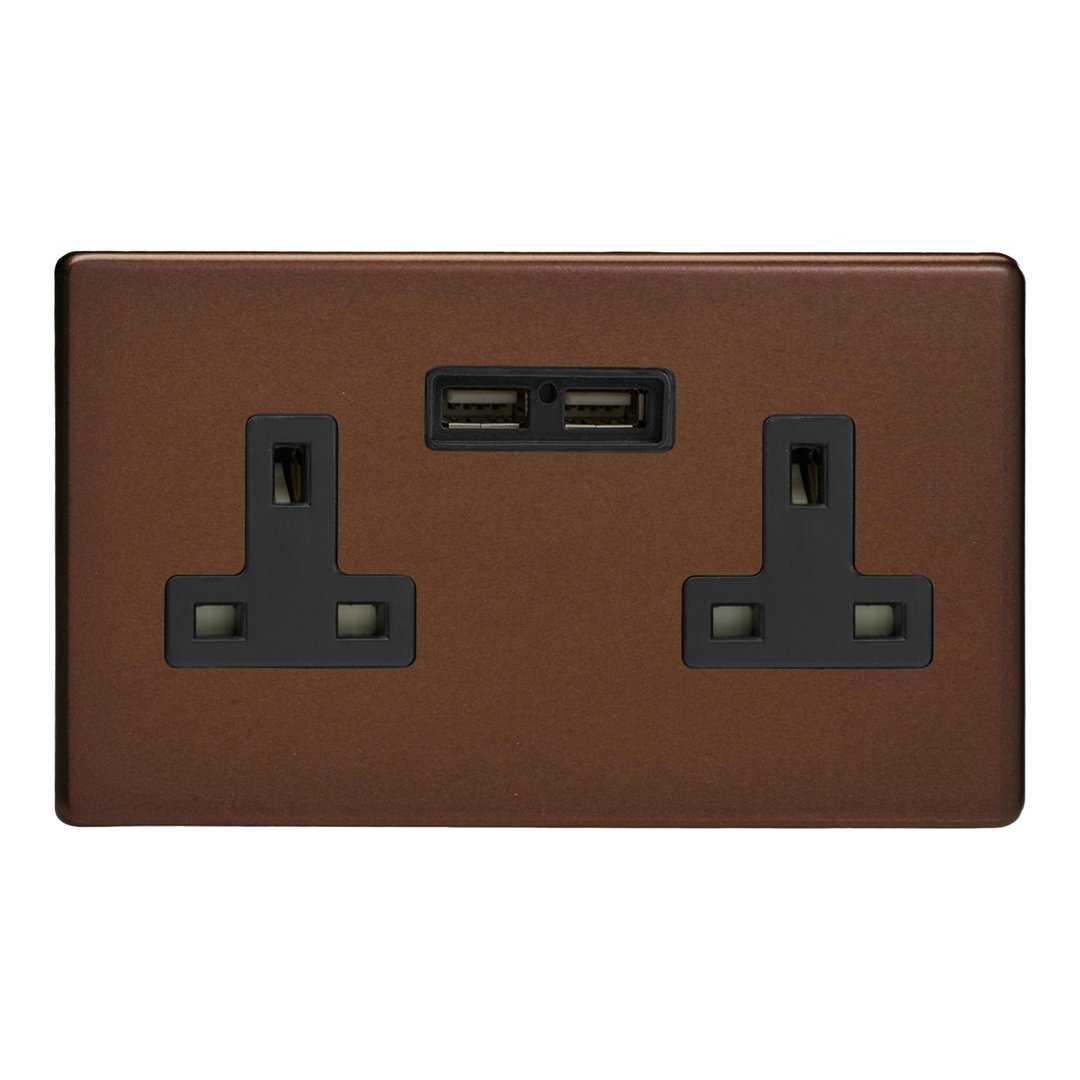

Product Description: 2-Gang 13A Unswitched Socket with 2 x 12W Shared USB A Charging Ports

Range: Screwless

Finish: Mocha

Product Category: Sockets with USB A Charging

Insert/Knob Colour: Black Insert

Barcode: 5021575462418

Dimensions: 86x147x28mm

Faceplate Depth: 4mm

Net Weight: 190g

Gross Weight: 192g

Fixing Centres: 120.6mm

Depth from Mounting Face: 24mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Ideal for charging iPad, iPhone, tablets, mobiles and cameras

  Features Varilight Smart Port technology making it suitable for all types of devices.

  The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.

  Sleek, low-profile screwless faceplate

  Featuring dual earth terminals

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Mocha Finish
Offering a warm, cosy feel, the Mocha finish is paired with black inserts and iridium rockers, bringing added sophistication. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
