Data Sheet
Product Code: XDMPG6

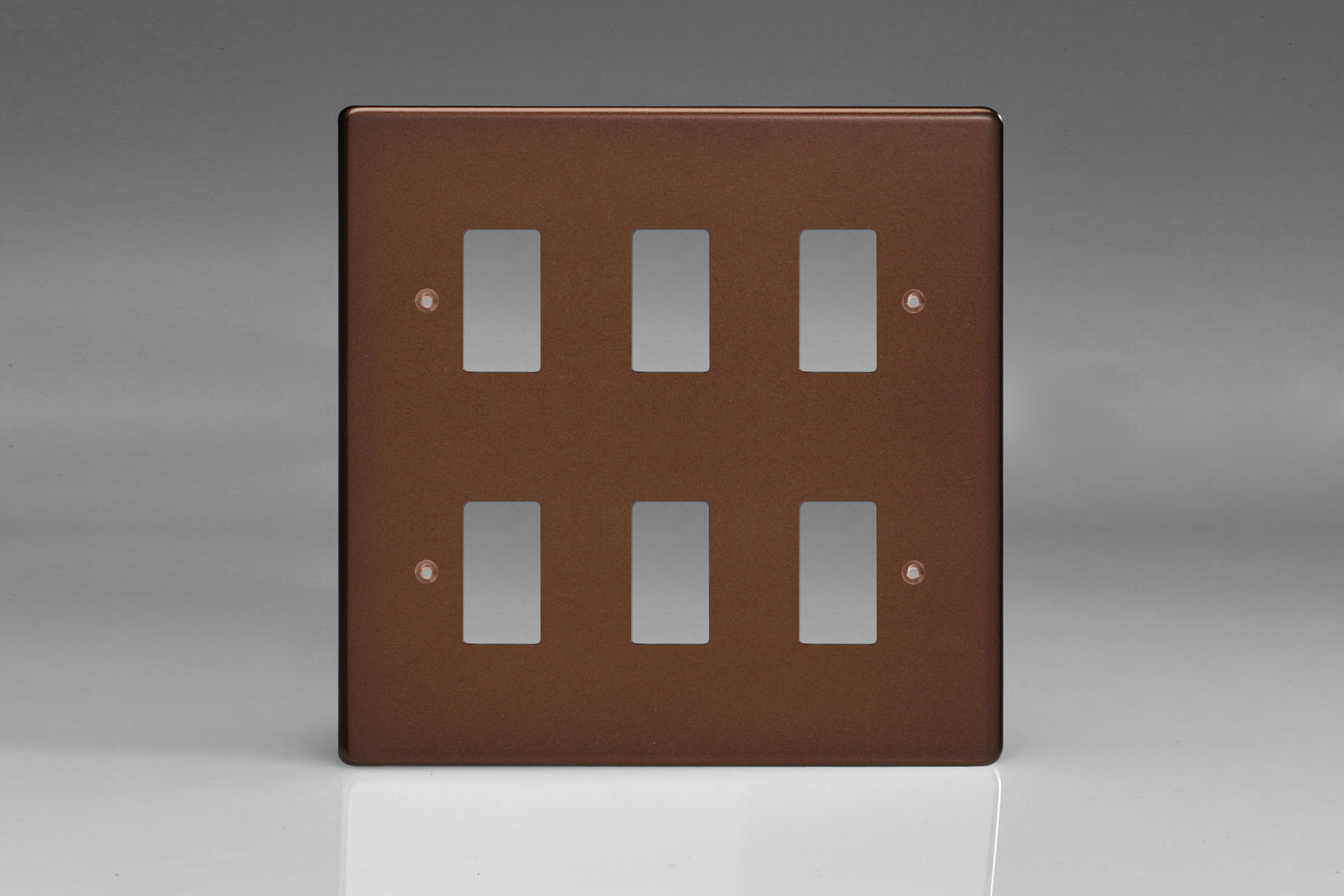

Product Description: 6-Gang Grid Plate (Double Twin Plate)
Range: PowerGrid
Finish: Mocha
Product Category: Grid Faceplates
Barcode: 5021575461770
Dimensions: 147x147x4mm
Faceplate Depth: 4mm
Net Weight: 110g
Gross Weight: 112g
Fixing Centres: 120.6mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: Refer to Grid Modules
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Domestic electrical supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed (via PowerGrid Frame).
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
Product Features
Use with 2 x Z3PGRID3
Build the exact switch combination the room needs
Choose exactly the PowerGrid modules you need
Modules purchased separately
Screwless low profile faceplate, just 4mm deep with no visible fixings
PowerGrid Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Mocha Finish
Offering a warm, cosy feel, the Mocha finish is paired with black inserts and iridium rockers, bringing added sophistication.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
16th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
