Data Sheet

Product Code: XDNT1S

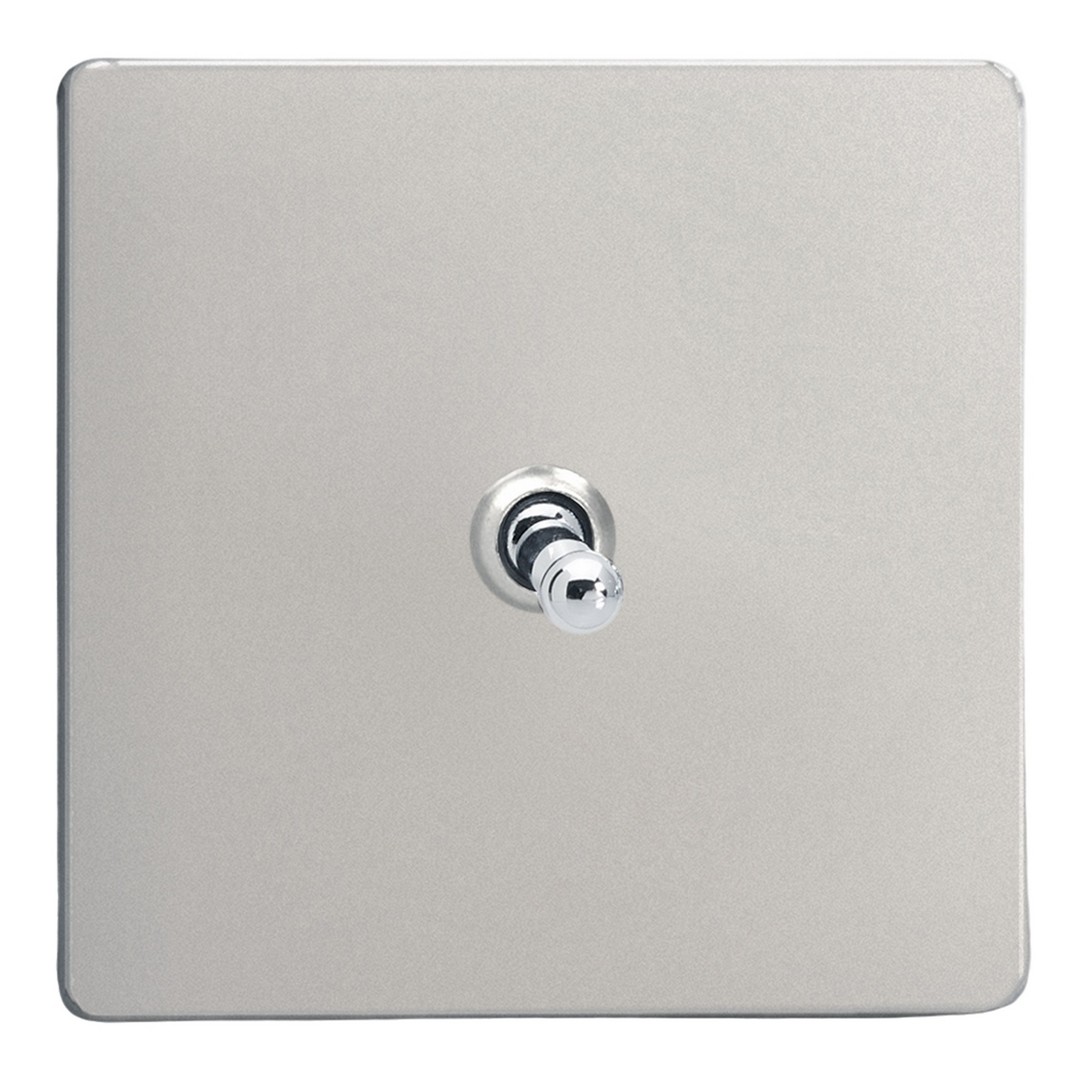

Product Description: 1-Gang 10A 1- or 2-Way Toggle Switch

Range: Screwless

Finish: Satin

Product Category: Toggle Switches

Insert/Knob Colour: Chrome Toggle

Barcode: 5021575470260

Dimensions: 86x86x36mm

Faceplate Depth: 4mm

Net Weight: 126g

Gross Weight: 128g

Fixing Centres: 60.3mm

Depth from Mounting Face: 17.4mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 10A

Maximum Current Rating: 10A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  1- or 2-Way switching

  Suitable for controlling both mains and low voltage lighting

  Sleek, low-profile screwless faceplate

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Satin Finish
The Satin finish has a subtle sophistication with its soft sheen and understated elegance, which will enhance most interior design schemes. Black or white inserts blend seamlessly, with polished chrome rockers for a luxury feel. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
