Data Sheet
Product Code: XDS45NS

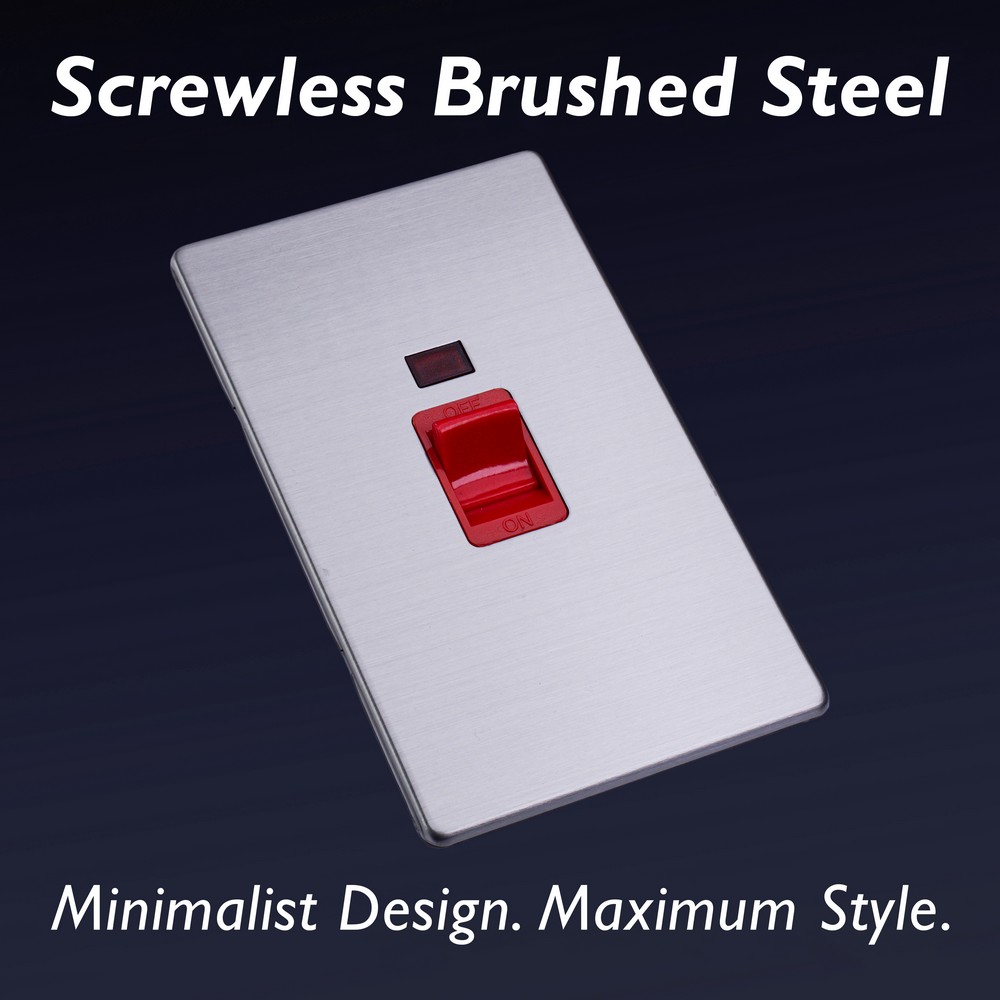

Product Description: 45A Cooker Switch with Neon (Vertical Twin Plate, Red Rocker)
Range: Screwless
Finish: Brushed Steel
Product Category: Cooker Switches
Insert/Knob Colour: Red Insert
Barcode: 5021575193695

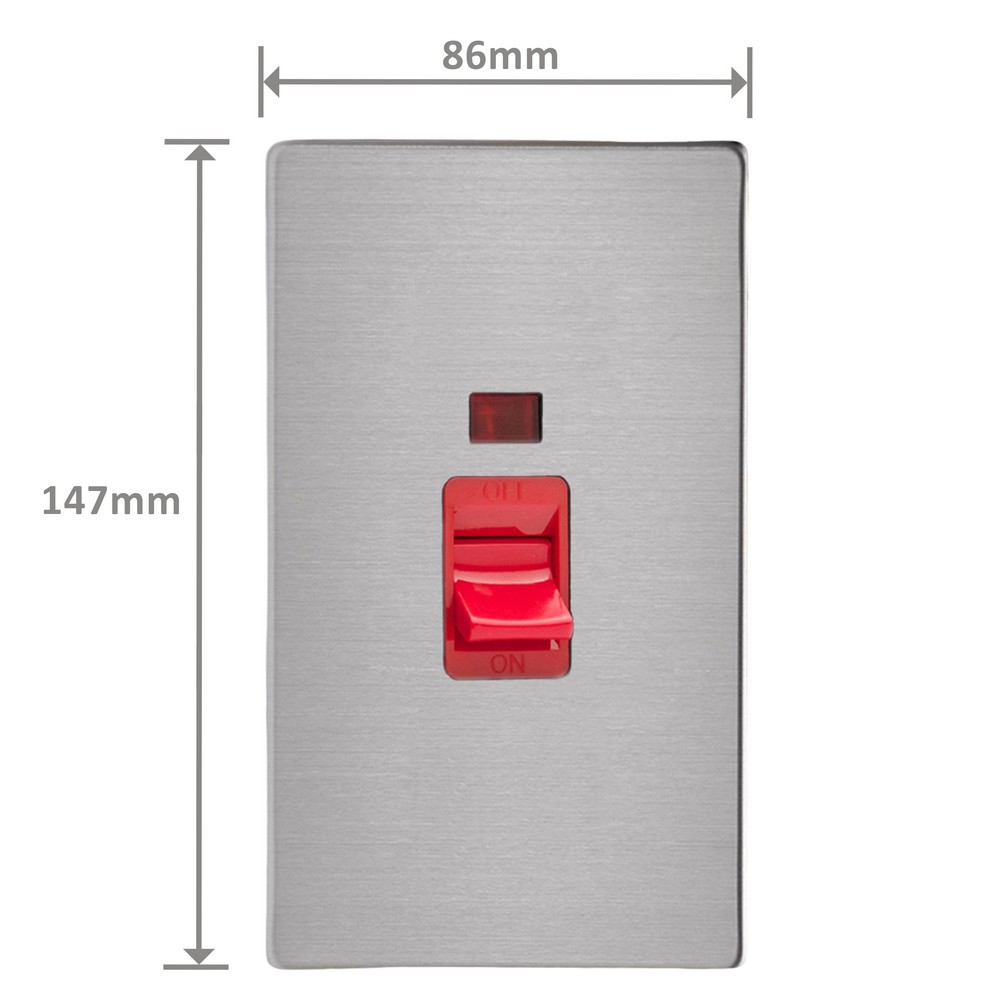

Dimensions: 147x86x35mm
Faceplate Depth: 4mm
Net Weight: 276g
Gross Weight: 278g
Fixing Centres: 120.6mm
Depth from Mounting Face: 24.8mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Cooker Switch; 45A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²
Product Features
Double pole switching
Neon indicator light
Double sized vertical plate
Sleek, low-profile screwless faceplate
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Brushed Steel Finish
Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 15th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
