Product Description: 1-Gang 5A Round Pin Socket
10 YEAR GUARANTEE
BRITISH MADE
Range: Screwless
Finish: Brushed Steel
Product Category: Round Pin Sockets
Insert/Knob Colour: White Insert
Barcode: 5021575481860

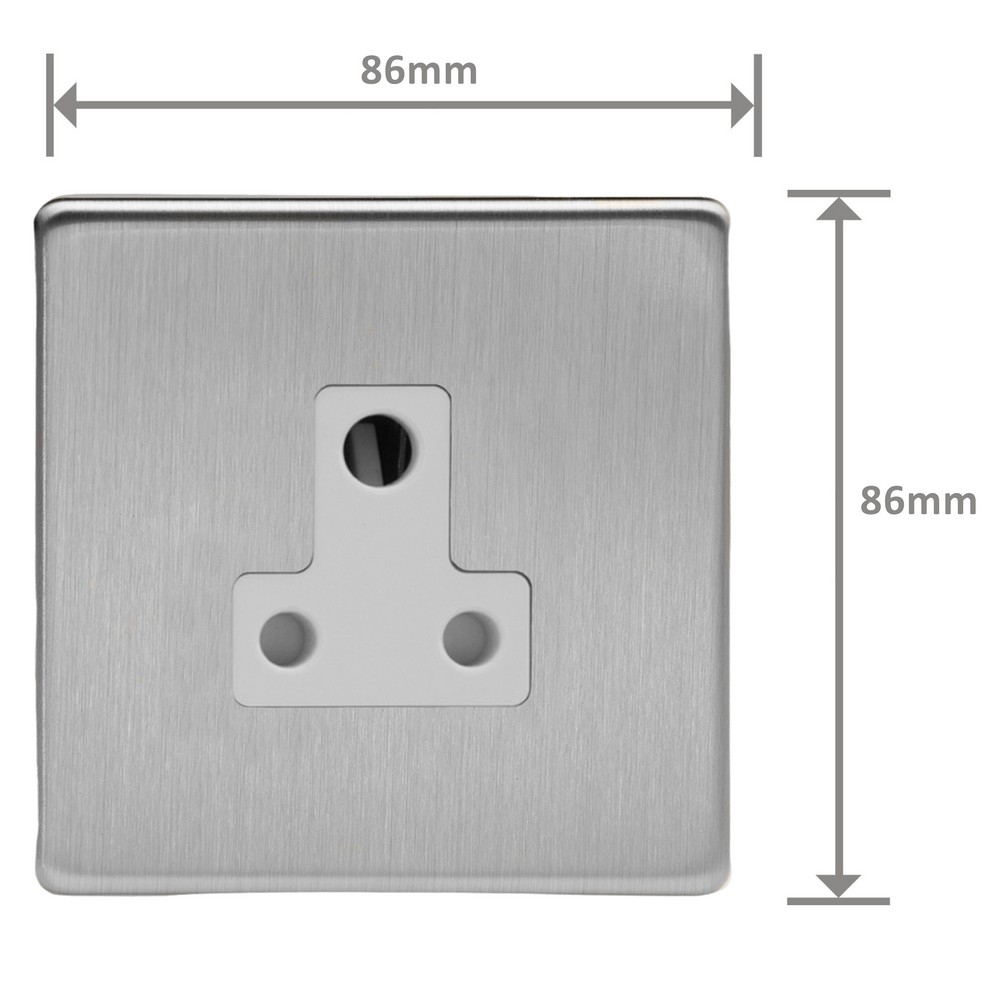

Dimensions: 86x86x25mm
Faceplate Depth: 4mm
Net Weight: 176g
Gross Weight: 178g
Fixing Centres: 60.3mm
Depth from Mounting Face: 18.4mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 5A
Maximum Current Rating: 5A
Terminal (Live) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Neutral) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Product Features
For use in lighting circuits up to 1150W in conjunction with wall switches
Sleek, low-profile screwless faceplate
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 546
Commodity Code: 85366990
Date of Issue: 18th April 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
