Data Sheet
Product Code: XDVRP2ABS
This product is made to order

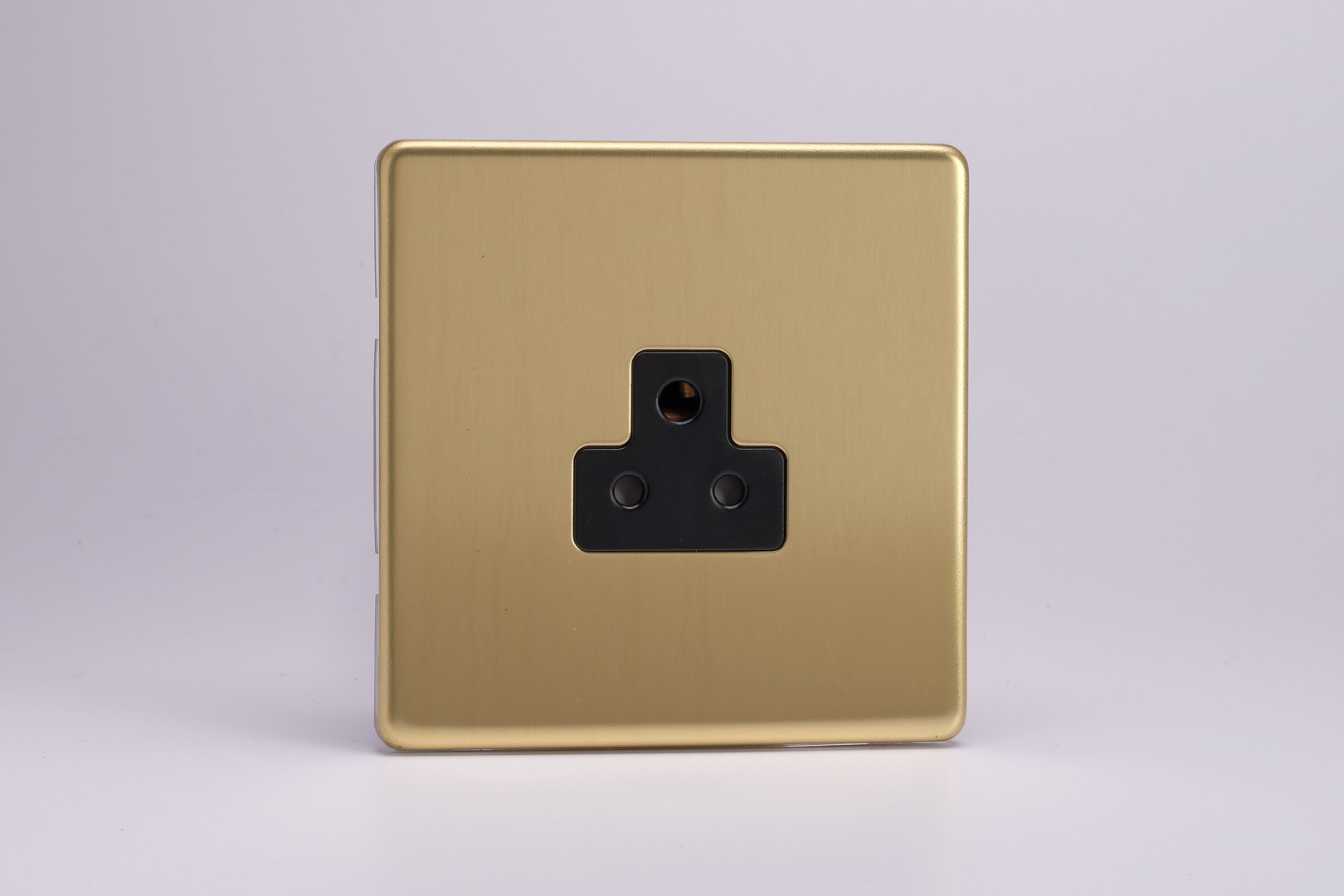

Product Description: 1-Gang 2A Round Pin Socket
Range: Screwless
Finish: Polished Brass
Product Category: Round Pin Sockets
Insert/Knob Colour: Black Insert
Barcode: 5021575491203
Dimensions: 86x86x25mm
Faceplate Depth: 4mm
Net Weight: 146g
Gross Weight: 148g
Fixing Centres: 60.3mm
Depth from Mounting Face: 21.4mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 2A
Maximum Current Rating: 2A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Neutral) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
For use in lighting circuits up to 460W in conjunction with wall switches
Sleek, low-profile screwless faceplate
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Polished Brass Finish
The elegant Polished Brass finish features matching polished brass rockers with an option of black or white inserts. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 546
Commodity Code: 85366990
