Product Code: XDY45SS.PD
Product Description: 45A Cooker Switch (Single Plate, Red Rocker)
Range: Screwless
Finish: Primed
Product Category: Cooker Switches
Insert/Knob Colour: Red Insert
Barcode: 5021575192643

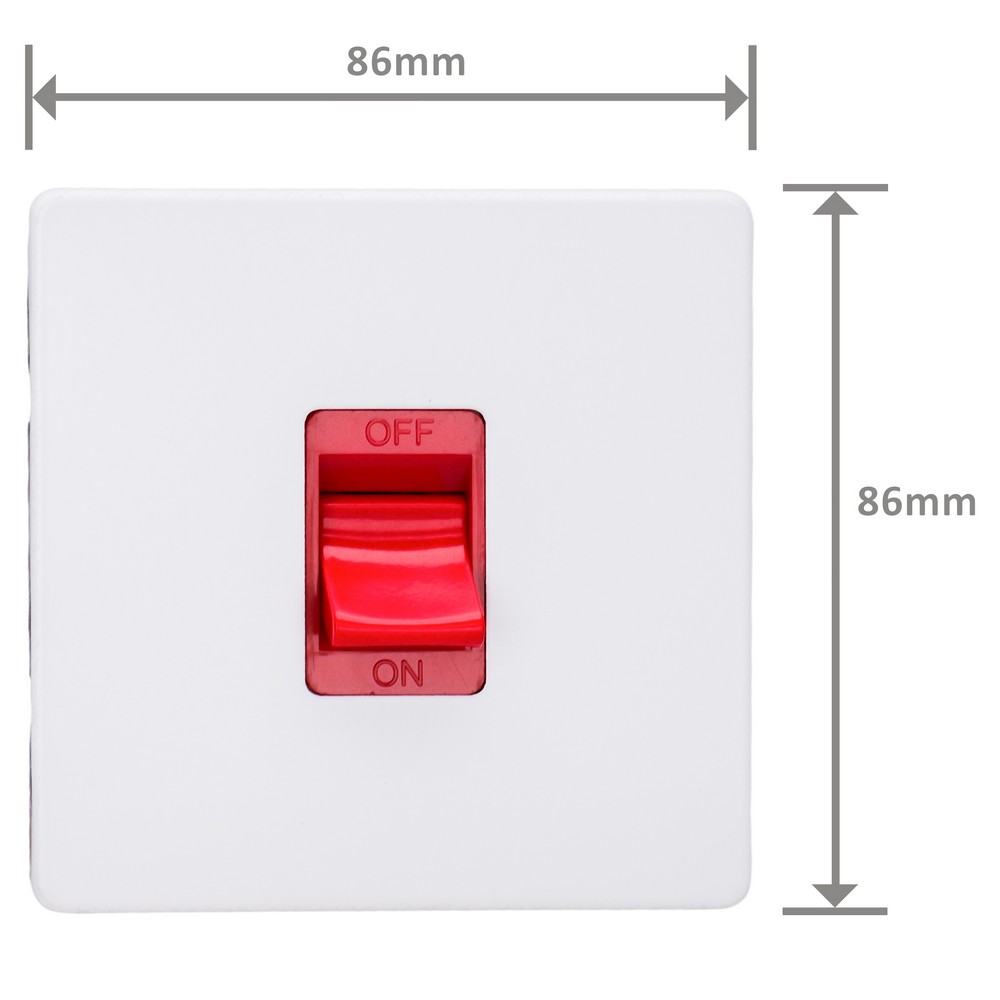

Dimensions: 86x86x35mm
Faceplate Depth: 4mm
Net Weight: 186g
Gross Weight: 188g
Fixing Centres: 60.3mm
Depth from Mounting Face: 24.9mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Cooker Switch; 45A | Socket; 13A
Maximum Current Rating: 0A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²
Product Features
Double pole switching
Single sized plate
Sleek, low-profile screwless faceplate
For helpful tips on painting the Varilight Primed range, featuring different paints and methods, see our Varilight Primed - Best Practices article.
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Primed Finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 23rd January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
