Click below to print the data sheet for XDYSSWS.PD
Further information:
Data Sheet
Product Code: XDYSSWS.PD
Product Description: Dual Voltage Shaver Socket 230V/115V
Range: Screwless
Finish: Primed
Product Category: Other Items
Insert/Knob Colour: White Insert
Barcode: 5021575192926

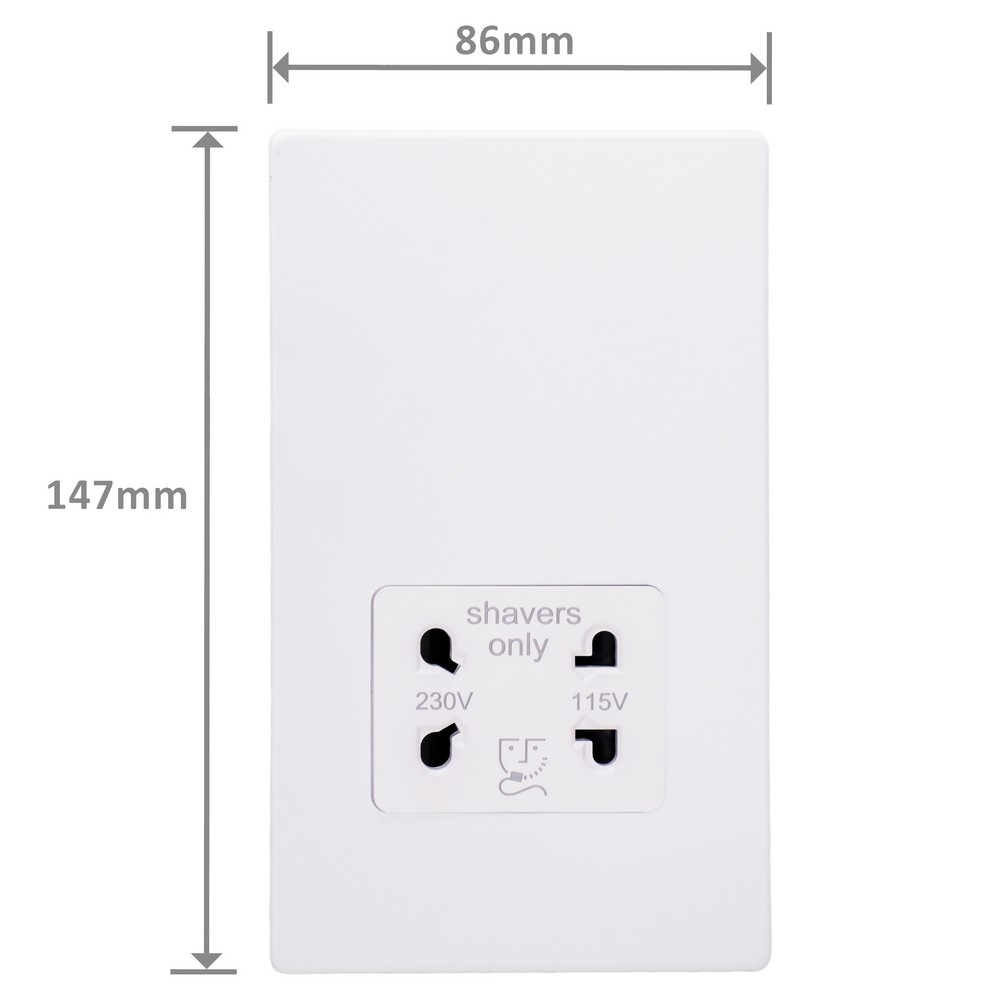

Dimensions: 86x147x48mm

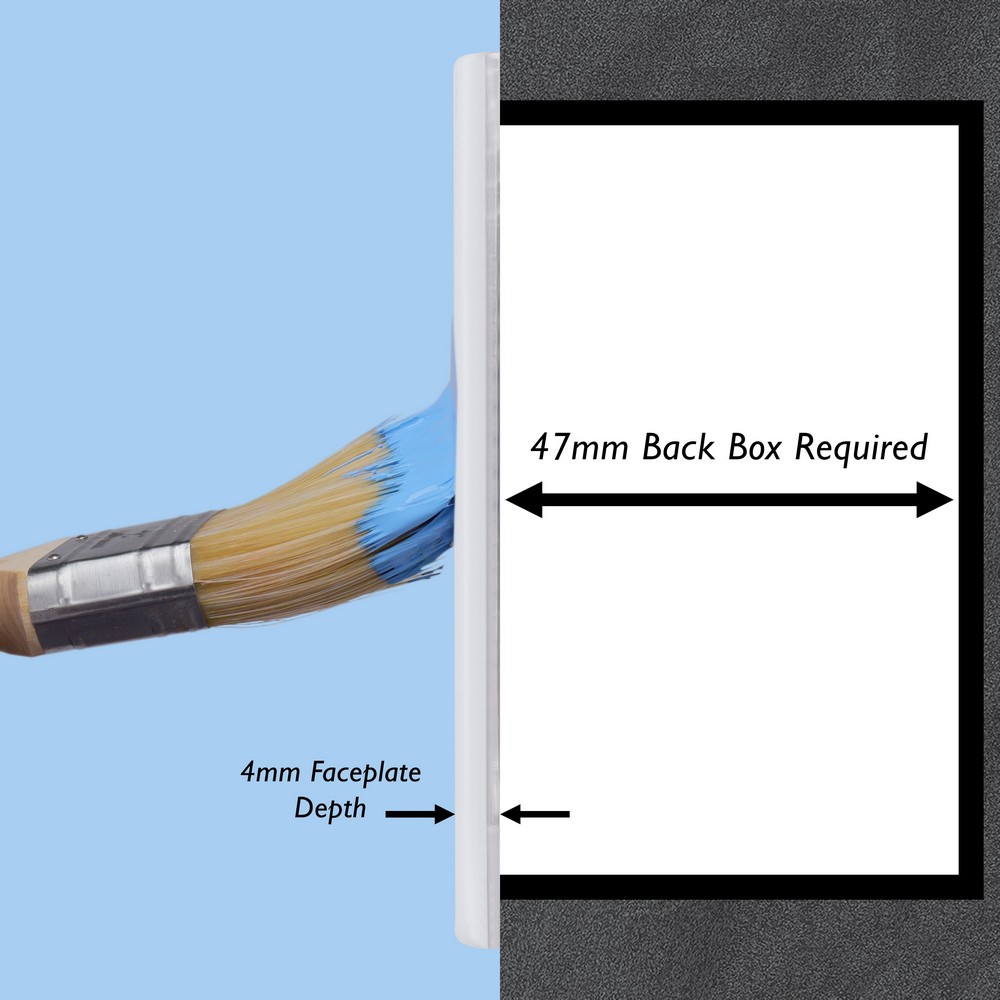

Faceplate Depth: 4mm
Net Weight: 379g
Gross Weight: 382g
Fixing Centres: 120.6mm
Depth from Mounting Face: 44.4mm
Recommended Back Box Depth: 47mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 20VA
Maximum Current Rating: 80mA
Terminal (Live) Diameter: 5.4mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 5.4mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 5mm; Capacity: 4 x 2.5mm²
Product Features
Suitable for use in bathrooms, toilets and shower rooms (IP41)
230V accepts British and Continental round pin
115V accepts Continental two-pin and America NEMA
Sleek, low-profile screwless faceplate
For helpful tips on painting the Varilight Primed range, featuring different paints and methods, see our Varilight Primed - Best Practices article.
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Primed Finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 61558-2-5
Commodity Code: 85366990
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 23rd January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
