Data Sheet
Product Code: XDYU4WS.PD
Product Description: 4-Gang 24W Shared USB A Charging Port (Single Plate)
Range: Screwless
Finish: Primed
Product Category: USB A Charging Ports
Insert/Knob Colour: White Insert
Barcode: 5021575001419

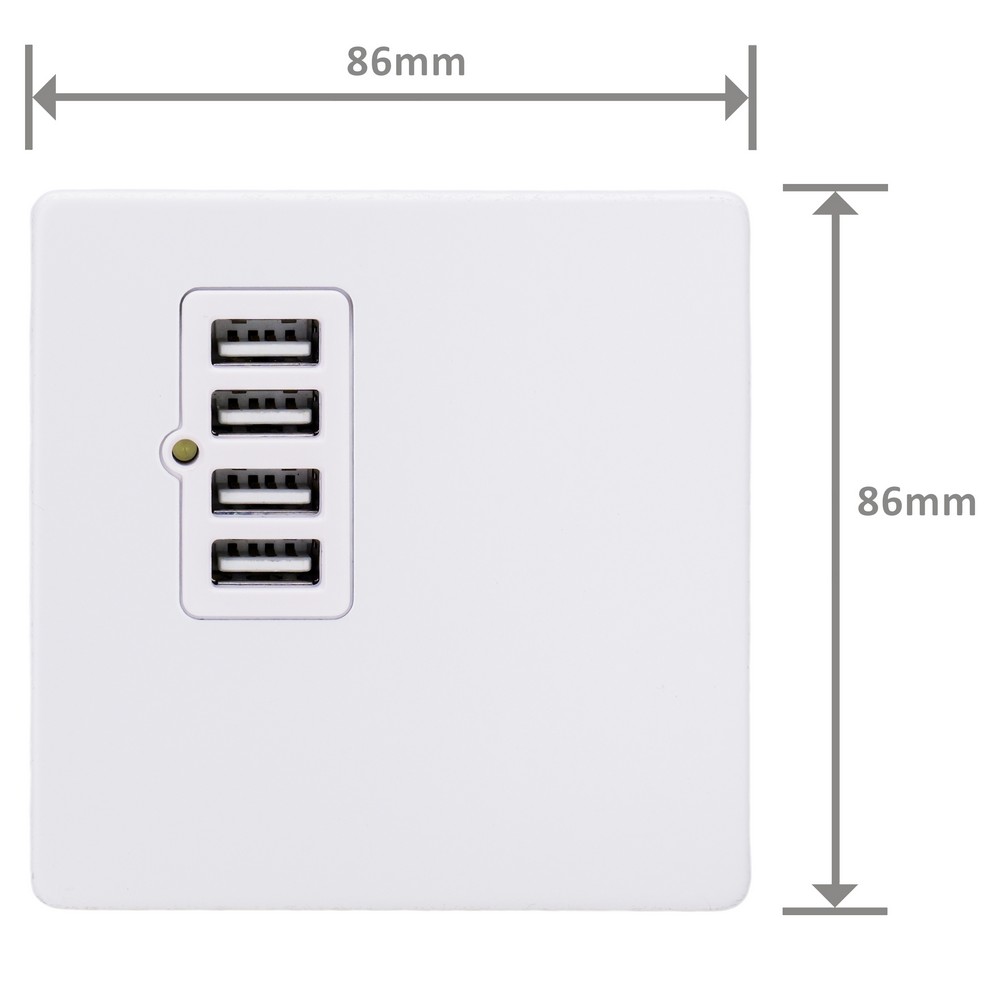

Dimensions: 86x86x35mm
Faceplate Depth: 4mm
Net Weight: 136g
Gross Weight: 138g
Fixing Centres: 60.3mm
Depth from Mounting Face: 21.4mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 24W
Maximum Current Rating: 4.8A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 8.3mm; Capacity: 4 x 2.5mm²
Product Features
Power more devices with the flexibility of four charging ports sharing 24W
Smart Port technology makes it ideal for charging multiple devices, including iPads, iPhones, tablets, mobiles and cameras
The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
For helpful tips on painting the Varilight Primed range, featuring different paints and methods, see our Varilight Primed - Best Practices article.
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Primed Finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 23rd January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
