Data Sheet
Product Code: XFBRP5AB

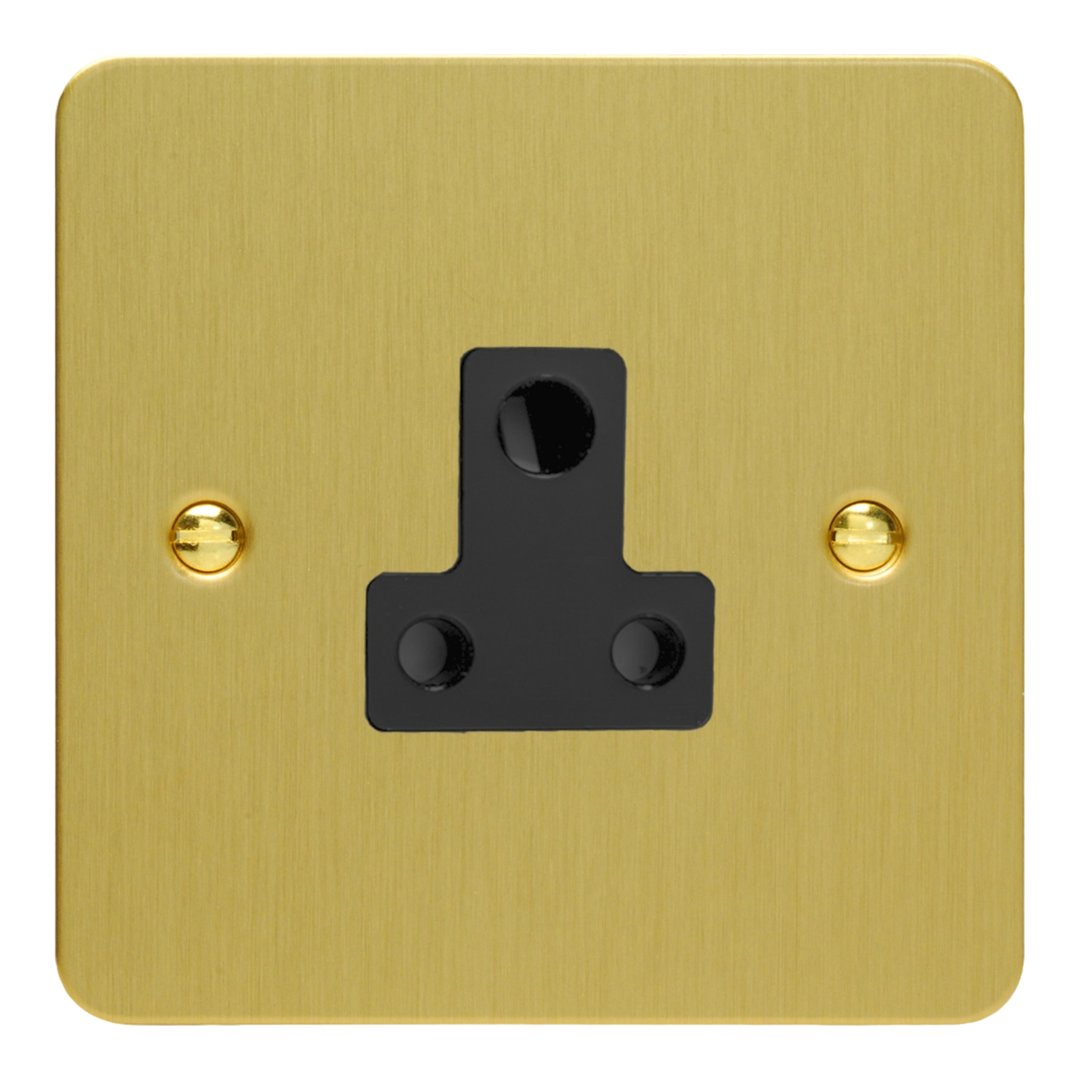

Product Description: 1-Gang 5A Round Pin Socket
Range: Ultraflat
Finish: Brushed Brass
Product Category: Round Pin Sockets
Insert/Knob Colour: Black Insert
Barcode: 5021575901856
Dimensions: 89x89x25mm
Faceplate Depth: 1mm
Net Weight: 166g
Gross Weight: 168g
Fixing Centres: 60.3mm
Depth from Mounting Face: 20mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 5A
Maximum Current Rating: 5A
Terminal (Live) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Neutral) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 546
Commodity Code: 85366990
Product Features
For use in lighting circuits up to 1150W in conjunction with wall switches
Contemporary, ultra-slim faceplate
Ultraflat Collection
The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.
Brushed Brass Finish
The elegant Brushed Brass finish is paired with polished brass metal rockers and matching brass screws, with the option of black or white socket inserts. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
13th April 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
