Data Sheet
Product Code: XG6B
Product Description: 13A Switched Fused Spur
Range: Classic
Finish: Georgian Brass
Product Category: Fused Spur
Insert/Knob Colour: Black Inserts
Barcode: 5021575750515

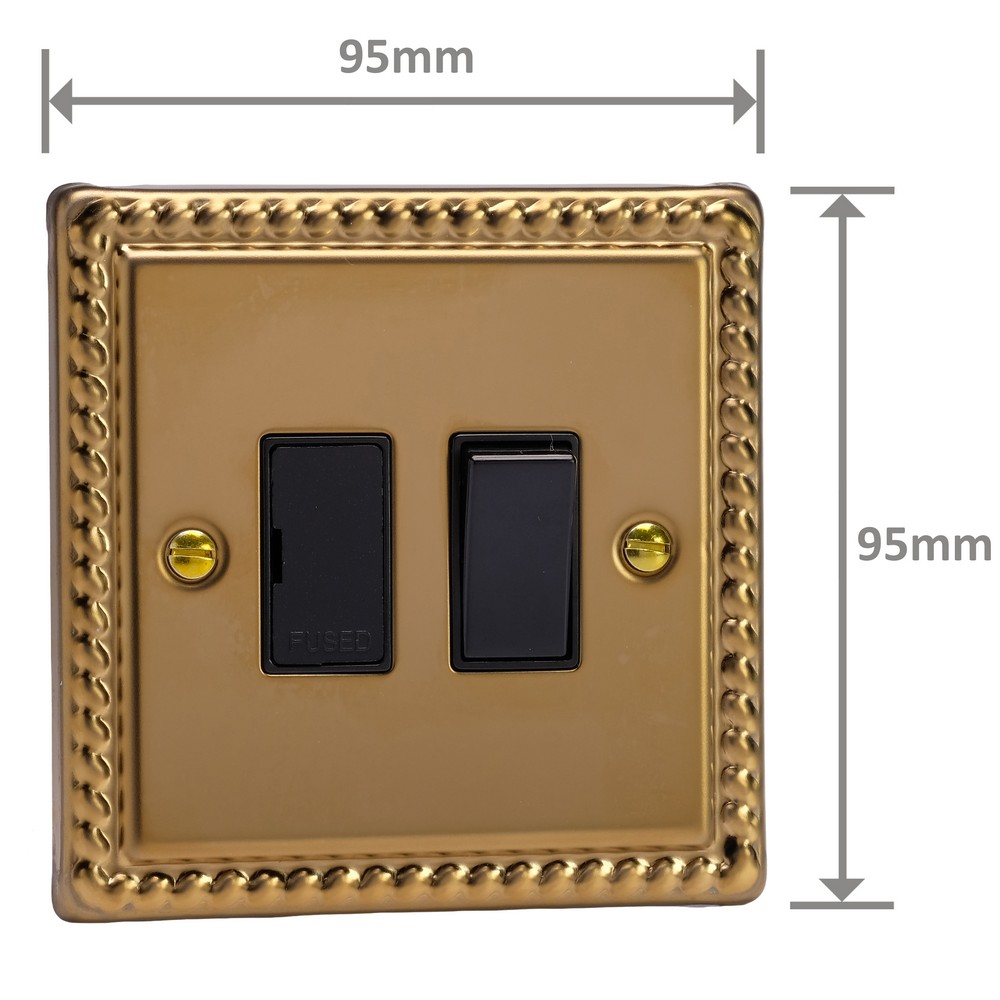

Dimensions: 95x95x30mm
Faceplate Depth: 7mm
Product Weight: 180g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16mm
Recommended Back Box Depth: 25mm
Operating Voltage: 220/250V AC
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Double pole switching
Holds standard 25.4x6.4mm fuse
Replaceable 13A fuse included
Roped edge faceplate

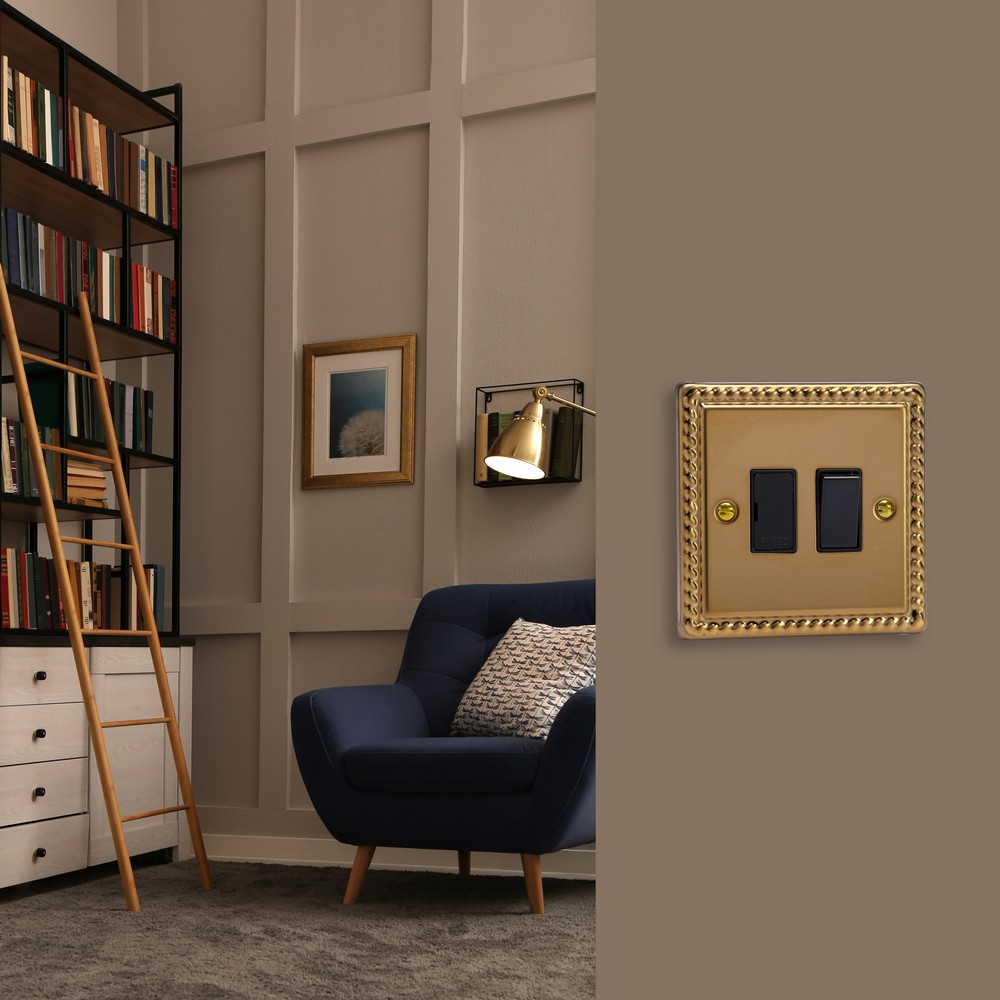

Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
Commodity Code: 85365007
10 YEAR GUARANTEE
BRITISH MADE
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 03rd June 2020 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
