Product Description: 1-Gang 10A Intermediate Rocker Switch
10 YEAR GUARANTEE
BRITISH MADE
Range: Classic
Finish: Georgian Brass
Product Category: Rocker Switches
Insert/Knob Colour: Black Rocker
Barcode: 5021575750614

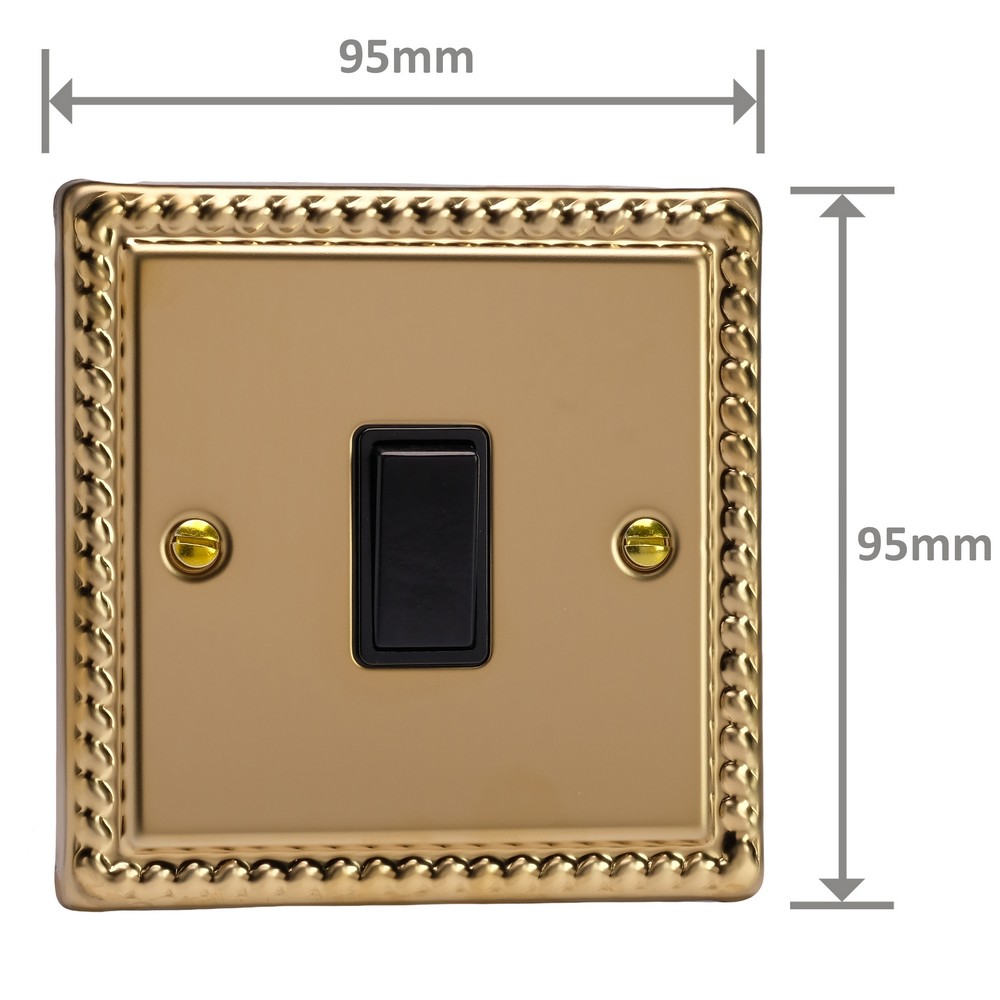

Dimensions: 95x95x25mm
Faceplate Depth: 7mm
Net Weight: 116g
Gross Weight: 118g
Fixing Centres: 60.3mm
Depth from Mounting Face: 10.5mm
Recommended Back Box Depth: 16mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Intermediate switch enables 3-Way switching
Suitable for controlling both mains and low voltage lighting
Roped edge faceplate
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Date of Issue: 18th April 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
