Instruction leaflet PDF

Data sheet: XKRP5BEW

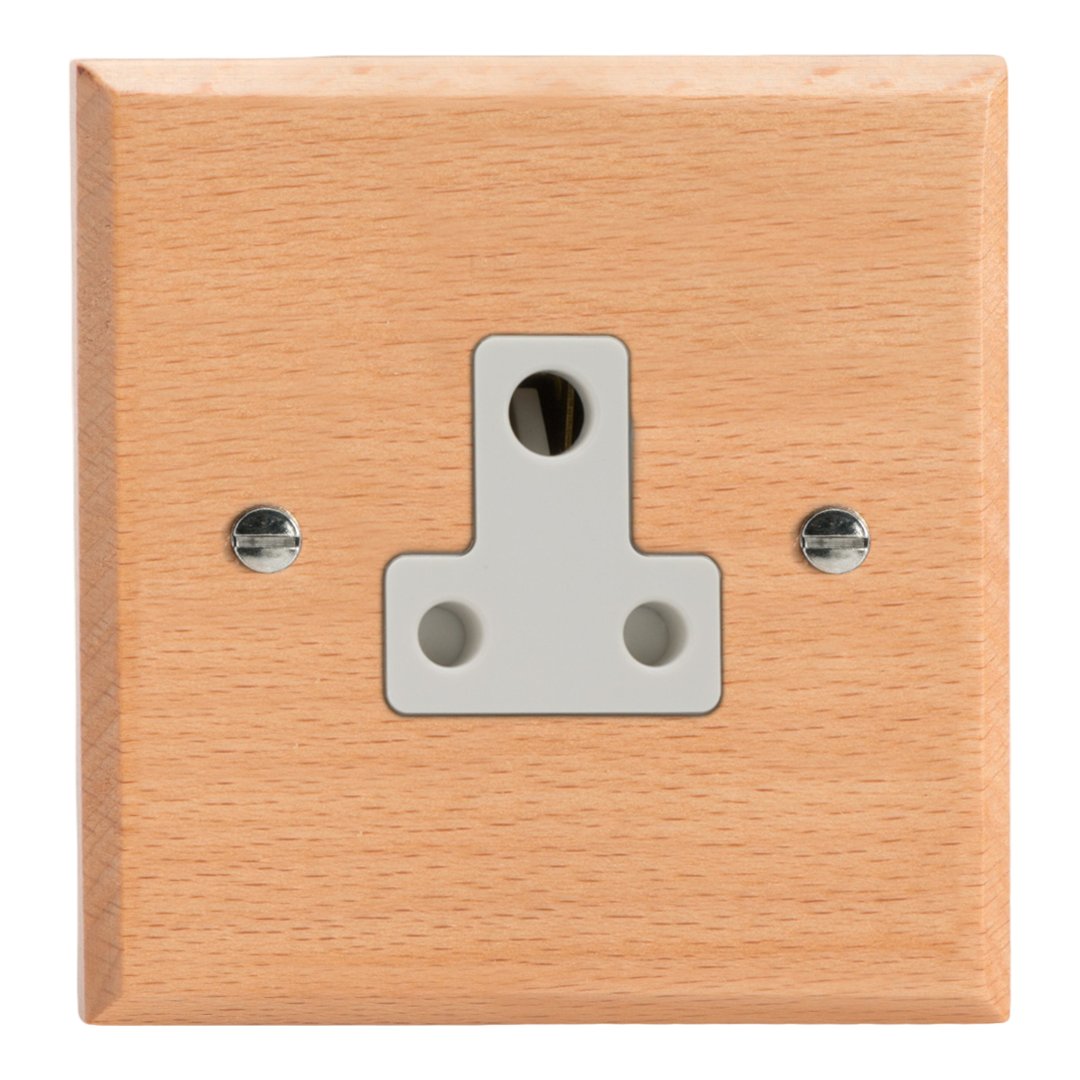

1-Gang 5A Round Pin Socket, Kilnwood Scandic Beech (XKRP5BEW)

Data sheet

XKRP5BEW 1-Gang 5A Round Pin Socket

Range Kilnwood Finish Scandic Beech

Product features

5A round pin socket
Puts table and standard lamps on the light switch
Classic round pin fitting in a finish to match the room
Solid timber faceplate, 15mm deep, fits a 16mm back box

Product

Product code: XKRP5BEW
Category: Round Pin Sockets
Range: Kilnwood
Finish: Scandic Beech
Insert / knob colour: White Insert
Barcode: 5021575010039

Size and fitting

Dimensions: 96x96x25mm
Faceplate depth: 15mm
Fixing centres: 60.3mm
Recommended back box depth: 16mm
Net weight: 108g
Gross weight: 110g

Electrical

Operating voltage: 220/250V AC
Maximum load rating: 5A
Maximum current rating: 5A
Terminal (Live): 3.7mm, capacity 3 x 1.5mm²
Terminal (Neutral): 3.7mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.7mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 546
Commodity code: 85366990

Declaration of Conformity

Kilnwood collection

The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability.

Scandic Beech finish

With its subtle, yet natural grain, the Beech finish provides a uniform look. Its warm, natural tones and soft character enhance the ambiance of any space.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 12th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
