Data Sheet
Product Code: XO45SW
Product Description: 45A Cooker Switch (Single Plate/ Red Rocker)
Range: Value
Finish: Polar White
Product Category: Cooker Switches
Insert/Knob Colour: White Insert
Barcode: 5021575050400
Dimensions: 85x85x35mm
Faceplate Depth: 5mm
Net Weight: 186g
Gross Weight: 188g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 45A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Double pole switching isolates live and neutral for added safety
Single size plate
45A rated
Isolates both live and neutral for added safety
Raised profile faceplate, 5mm deep with push-fit screw covers, fits a 35mm back box
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate an uncomplicated aesthetic at an affordable price point.

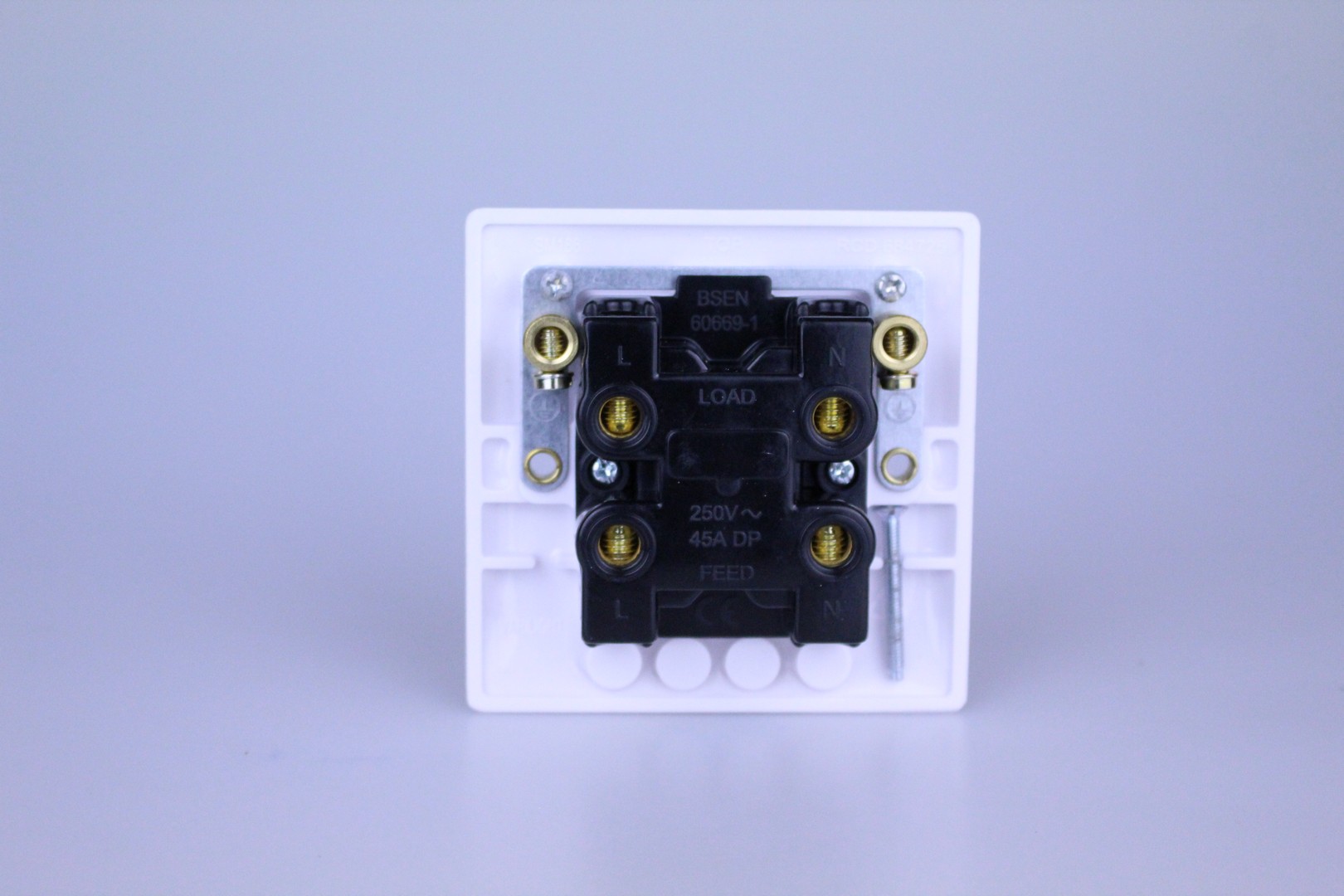

Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
16th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
