Click below to print the data sheet for XO4UW
Further information:
Data Sheet
Product Code: XO4UW
Product Description: 1-Gang 13A Unswitched Socket
Range: Value
Finish: Polar White
Product Category: Sockets
Insert/Knob Colour: White Insert
Barcode: 5021575051810
Dimensions: 85x85x29mm
Faceplate Depth: 5mm
Net Weight: 146g
Gross Weight: 148g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
Product Features
Unswitched, for appliances that should never be switched off by mistake
Dual earth terminals for a secure earth connection
Large termination points for easy wiring
Tight tolerances for a secure plug fit
Raised profile faceplate, 5mm deep with push-fit screw covers, fits a 25mm back box
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate an uncomplicated aesthetic at an affordable price point.

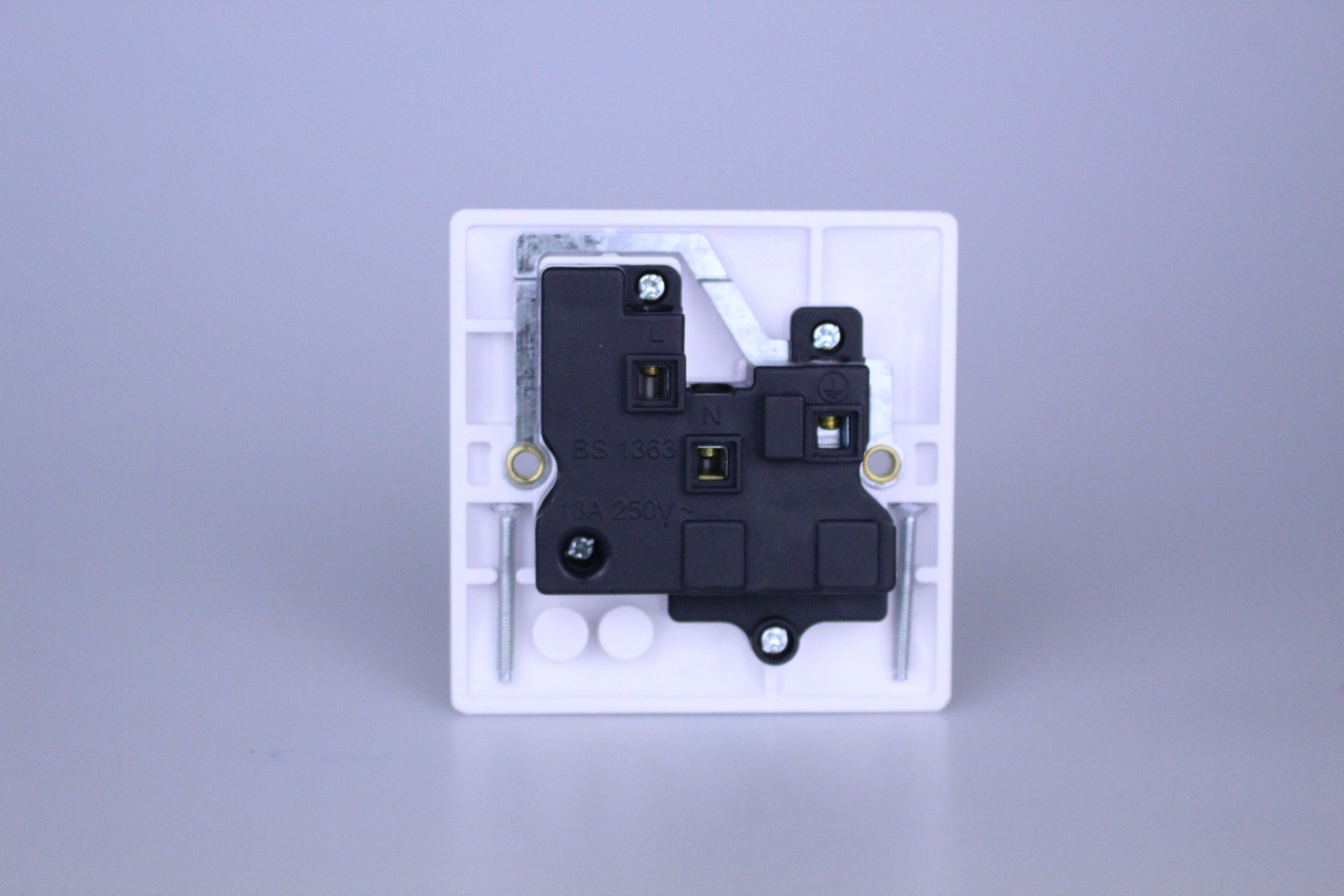

Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
