Product Code: XO6W
This product is no longer available, please choose XO6NW instead.

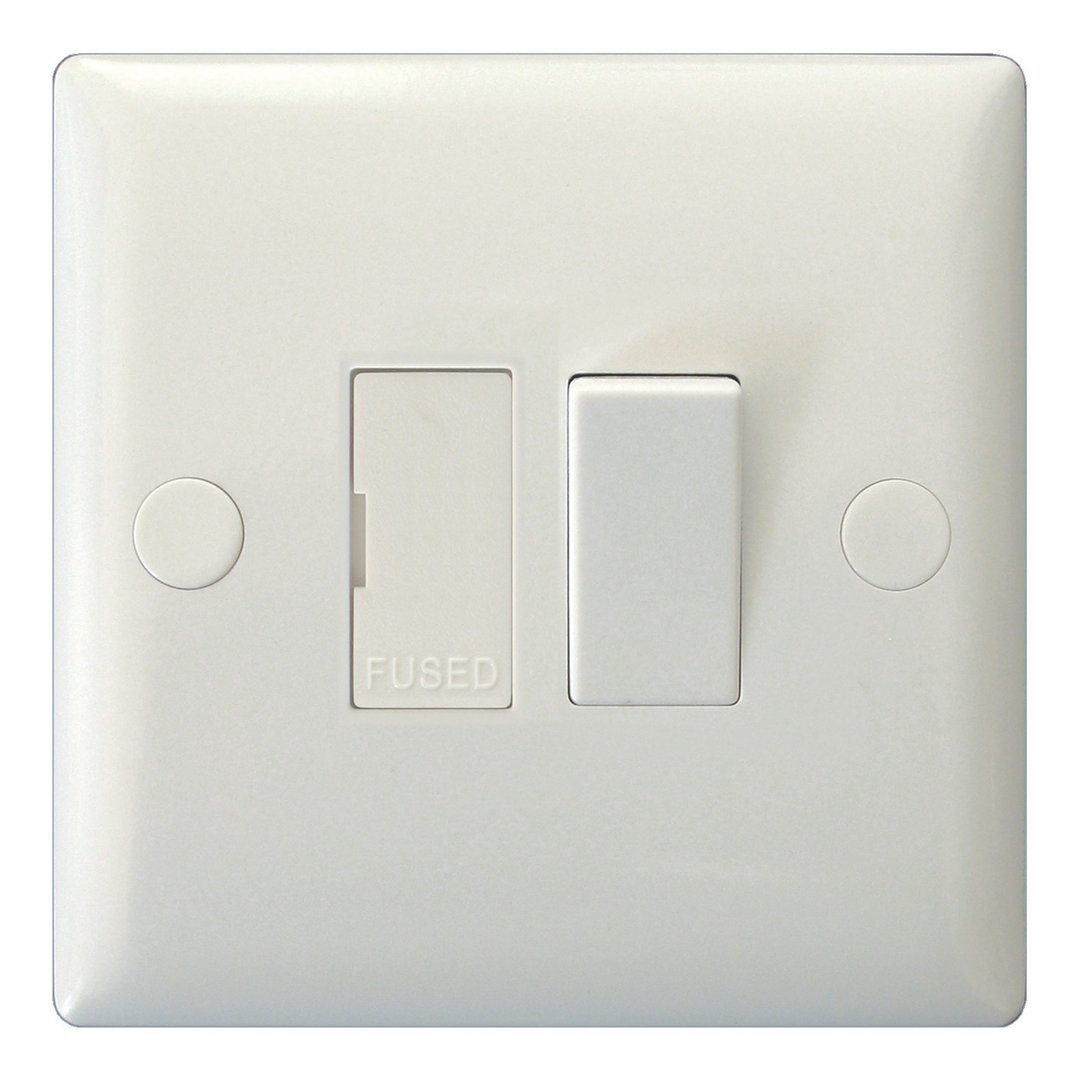

Product Description: 13A Switched Fused Spur
Range: Value
Finish: Polar White
Product Category: Fused Spur Connection Units
Insert/Knob Colour: White Insert
Barcode: 5021575050523
Dimensions: 85x85x30mm
Faceplate Depth: 5mm
Net Weight: 166g
Gross Weight: 168g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Applicable Safety Standard: BS 1363-4
Commodity Code: 85389091
Product Features
Double pole switching
Holds standard 25.4x6.4mm fuse
Replaceable 13A fuse included
Durable white plastic faceplate is anti-bacterial and fully biodegradable
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate a uncomplicated aesthetic at an affordable price point.
Rear View:
