Data sheet: XP6FOND

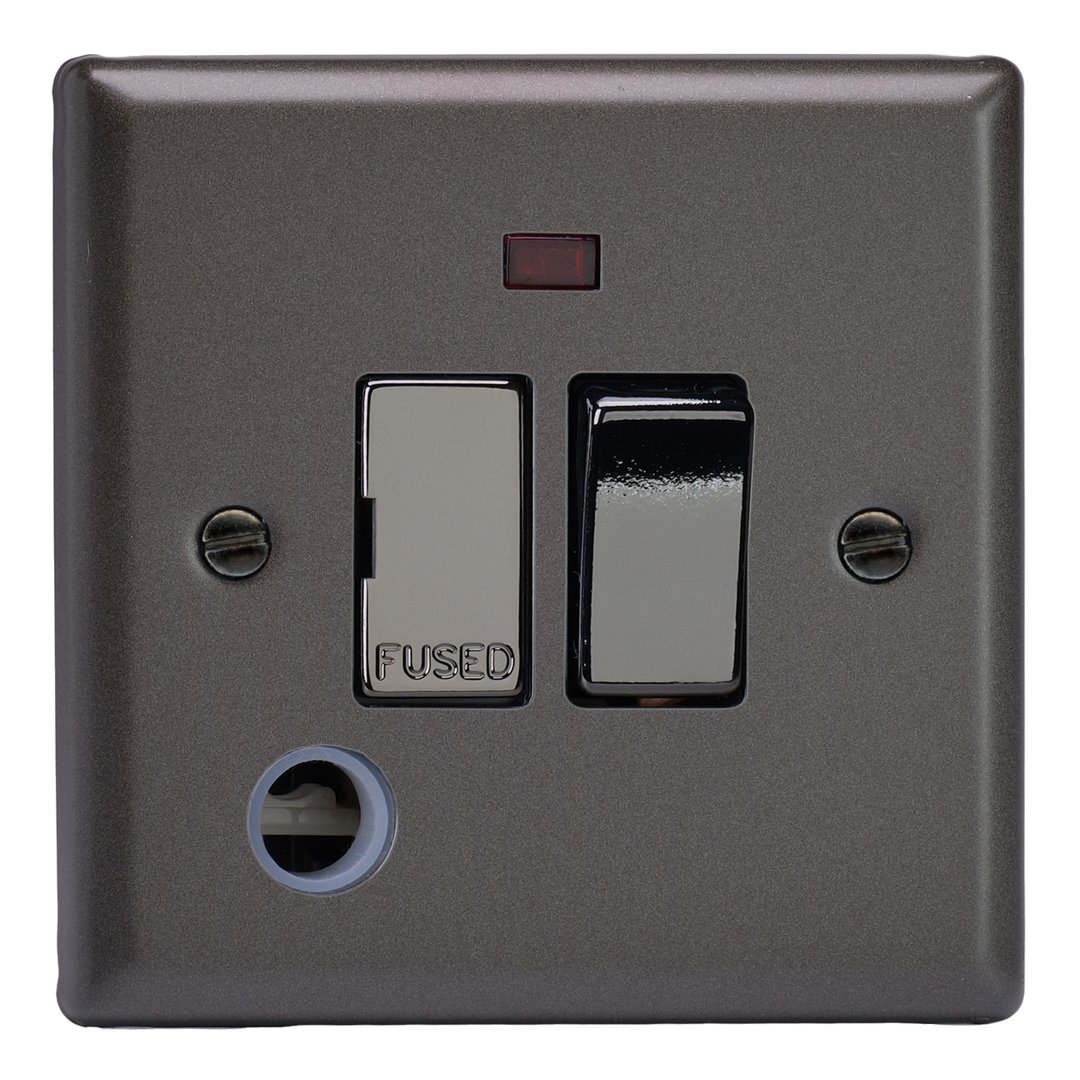

13A Switched Fused Spur with Neon with Flex Outlet, Classic Graphite 21 (XP6FOND)

Data sheet

XP6FOND 13A Switched Fused Spur with Neon with Flex Outlet

Name: 13A Switched Fused Spur with Neon with Flex Outlet
Brand: VARILIGHT
SKU: XP6FOND

Fused Spur with Flex Outlet & Neon Indicator

Range Classic Finish Graphite 21

Product features

Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Cable clamp keeps the flex secure
Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
Bevel-edge faceplate, 8mm deep with black screws, fits a 25mm back box

Product

Product code: XP6FOND
Category: Fused Spur Connection Units
Range: Classic
Finish: Graphite 21
Insert / knob colour: Iridium Insert
Barcode: 5021575038842

Size and fitting

Dimensions: 91x91x30mm
Faceplate depth: 8mm
Fixing centres: 60.3mm
Depth from mounting face: 16.7mm
Recommended back box depth: 25mm
Net weight: 166g
Gross weight: 168g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 13A
Maximum current rating: 13A
Terminal (Live): 4.5mm, capacity 4 x 2.5mm²
Terminal (Neutral): 4.5mm, capacity 4 x 2.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 1363-4
Commodity code: 85389091

Declaration of Conformity

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Graphite 21 finish

Dark and moody, the Graphite finish brings an industrial feel and works beautifully with neutral colour schemes. Supplied with black inserts and black screws, with a choice of black or iridium rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
