Data Sheet

Product Code: XS20NB

Range: Value

Finish: Matt Chrome

Product Category: Rocker Switches

Insert/Knob Colour: Black Rocker

Barcode: 5021575830170

---

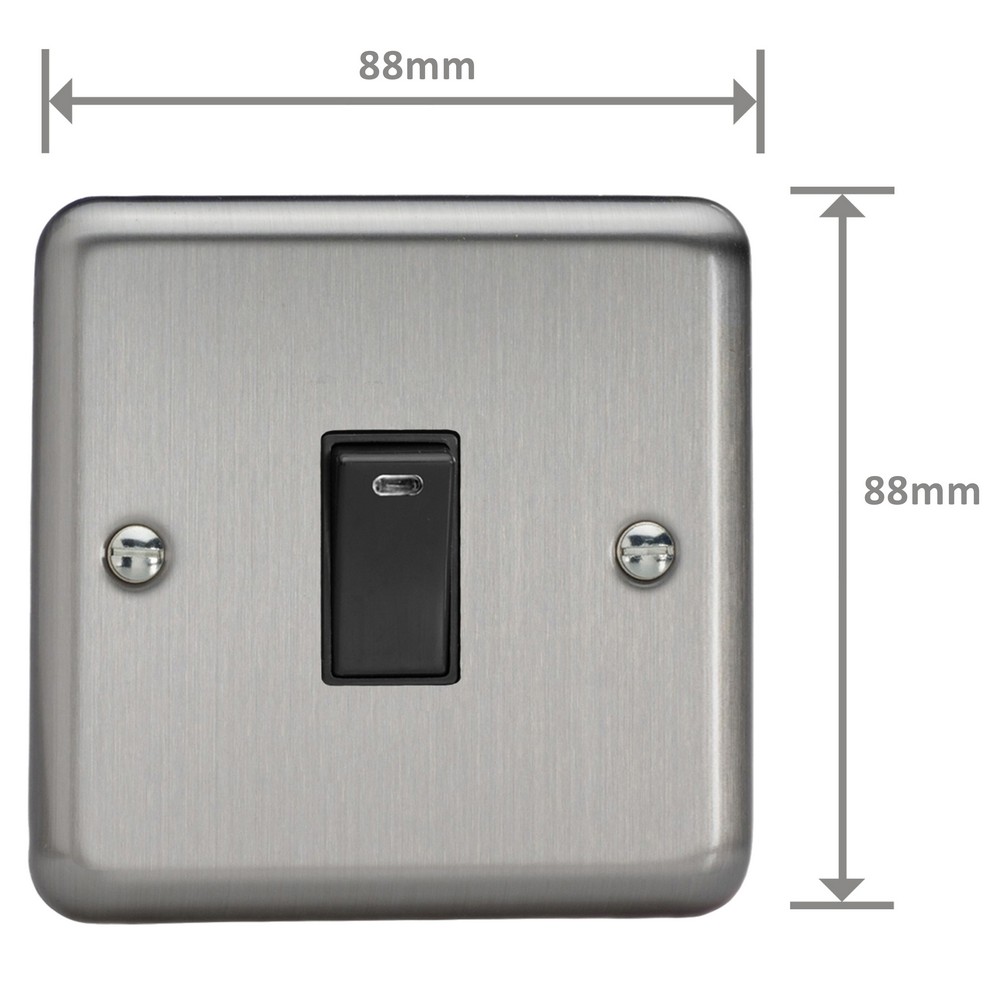

Dimensions: 88x88x30mm

Faceplate Depth: 7mm

Net Weight: 126g

Gross Weight: 128g

Fixing Centres: 60.3mm

Depth from Mounting Face: 16.3mm

Recommended Back Box Depth: 16mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 20A

Maximum Current Rating: 20A

Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

---

Product Features

  Double pole switching

  Neon indicator light

  Curved edge faceplate

  Neon indicator can also be used as a 'Nightlight' to help you find your switch in a darkened room. Click here for a wiring diagram.

Value Collection

The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome Finish

Matt Chrome offers unbeatable value for those seeking a beautiful decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85389091

Declaration of Conformity

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 16th November 2025  © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
