Click below to print the data sheet for XS88S
Further information:
Data Sheet
Product Code: XS88S
Product Description: 2-Gang TV Socket, Co-axial with F-Type Satellite
Range: Classic
Finish: Matt Chrome
Product Category: TV and Telephone Sockets
Insert/Knob Colour: Plain Insert
Barcode: 5021575830774

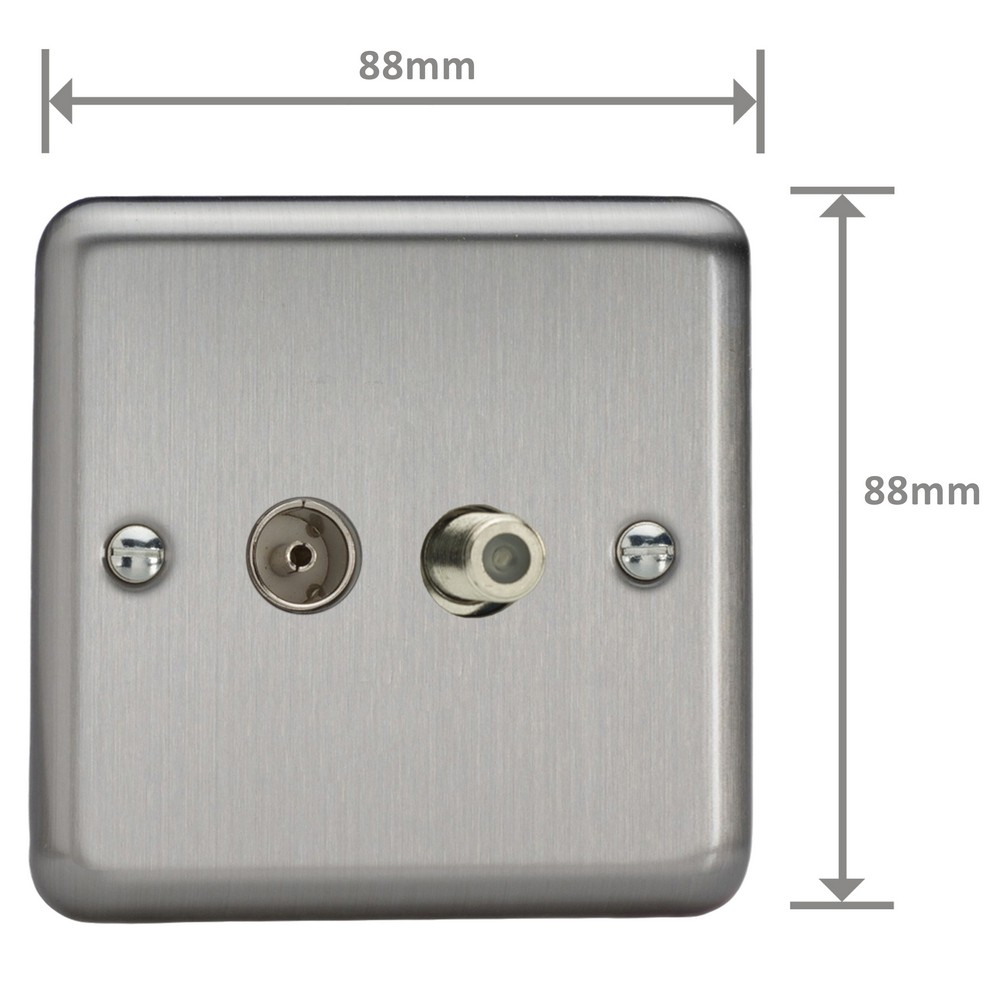

Dimensions: 88x88x28mm
Faceplate Depth: 7mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 60.3mm
Depth from Mounting Face: 10.5mm
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Product Features
Double TV socket - 1 x socket for use with male co-axial plugs and 1 x F-type satellite socket for use with male F-connection plugs
Curved edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Data circuits.
Applicable Safety Standard: BS 5733
Commodity Code: 85366910
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 25th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
