Product Description: 3-Gang 10A 1- or 2-Way Rocker Switch (Twin Plate)
10 YEAR GUARANTEE
BRITISH MADE
Range: Classic
Finish: Matt Chrome
Product Category: Rocker Switches
Insert/Knob Colour: Black Rockers
Barcode: 5021575831535

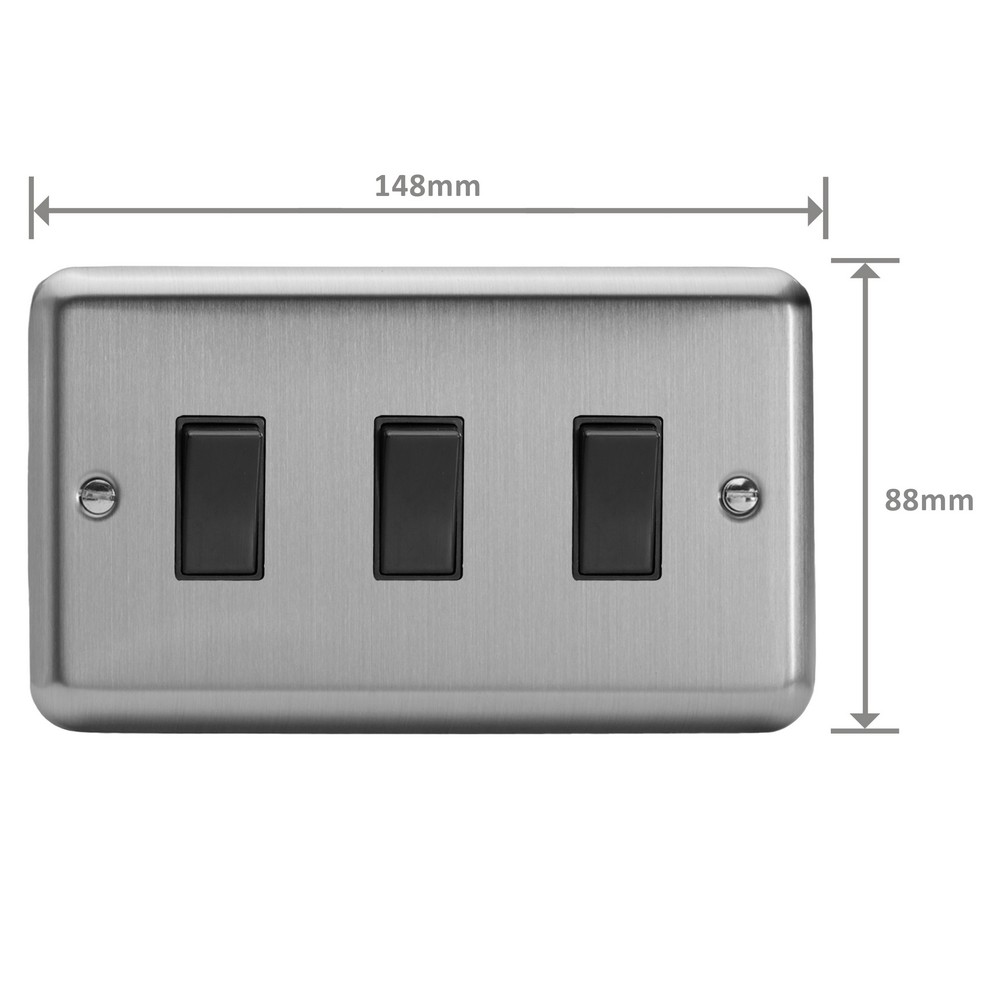

Dimensions: 88x148x25mm
Faceplate Depth: 7mm
Net Weight: 199g
Gross Weight: 202g
Fixing Centres: 120.6mm
Depth from Mounting Face: 12.2mm
Recommended Back Box Depth: 16mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A

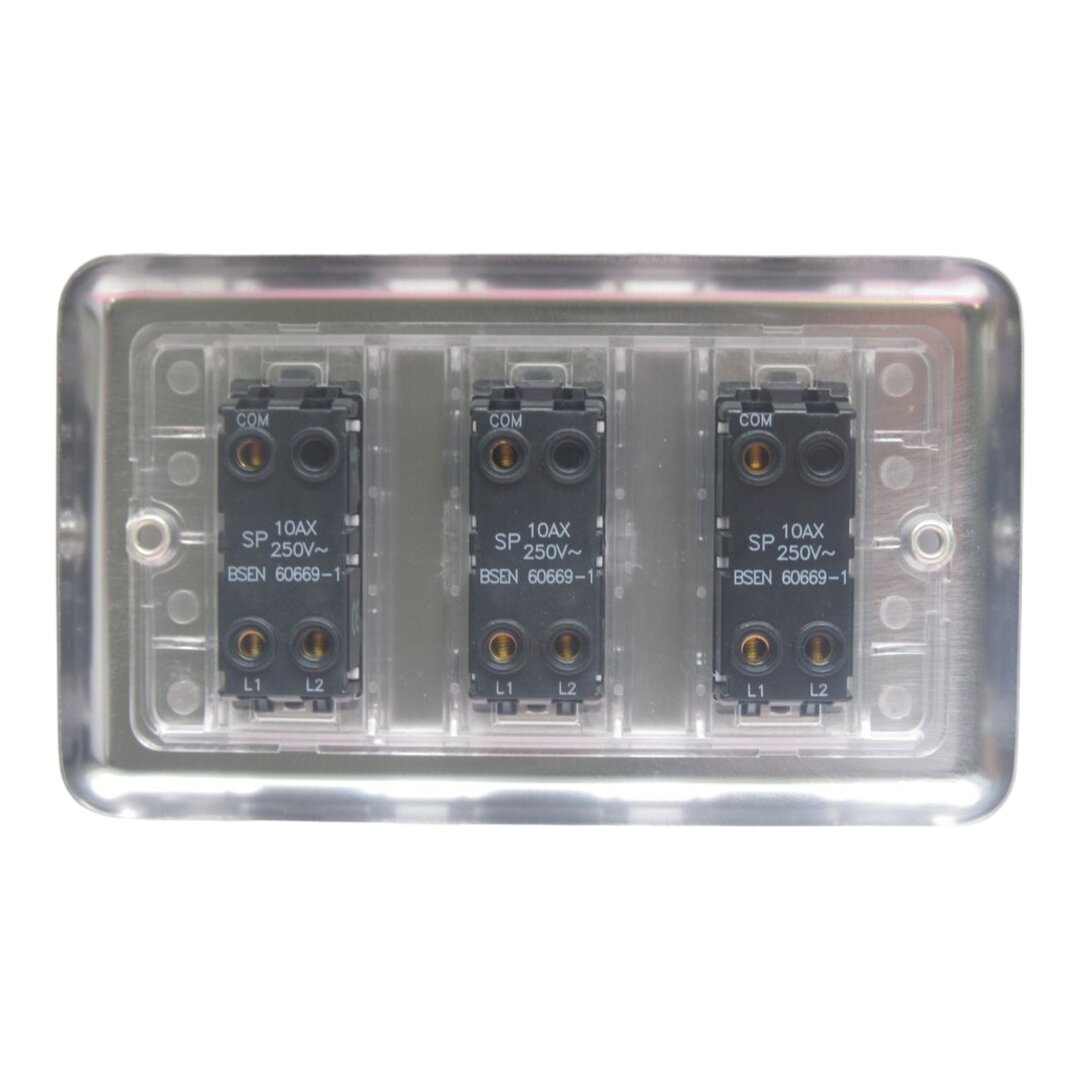

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
1- or 2-Way switching
Suitable for controlling both mains and low voltage lighting
Curved edge faceplate
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
