Click below to print the data sheet for XSTVFMB
Further information:
Data Sheet
Product Code: XSTVFMB
This product is made to order

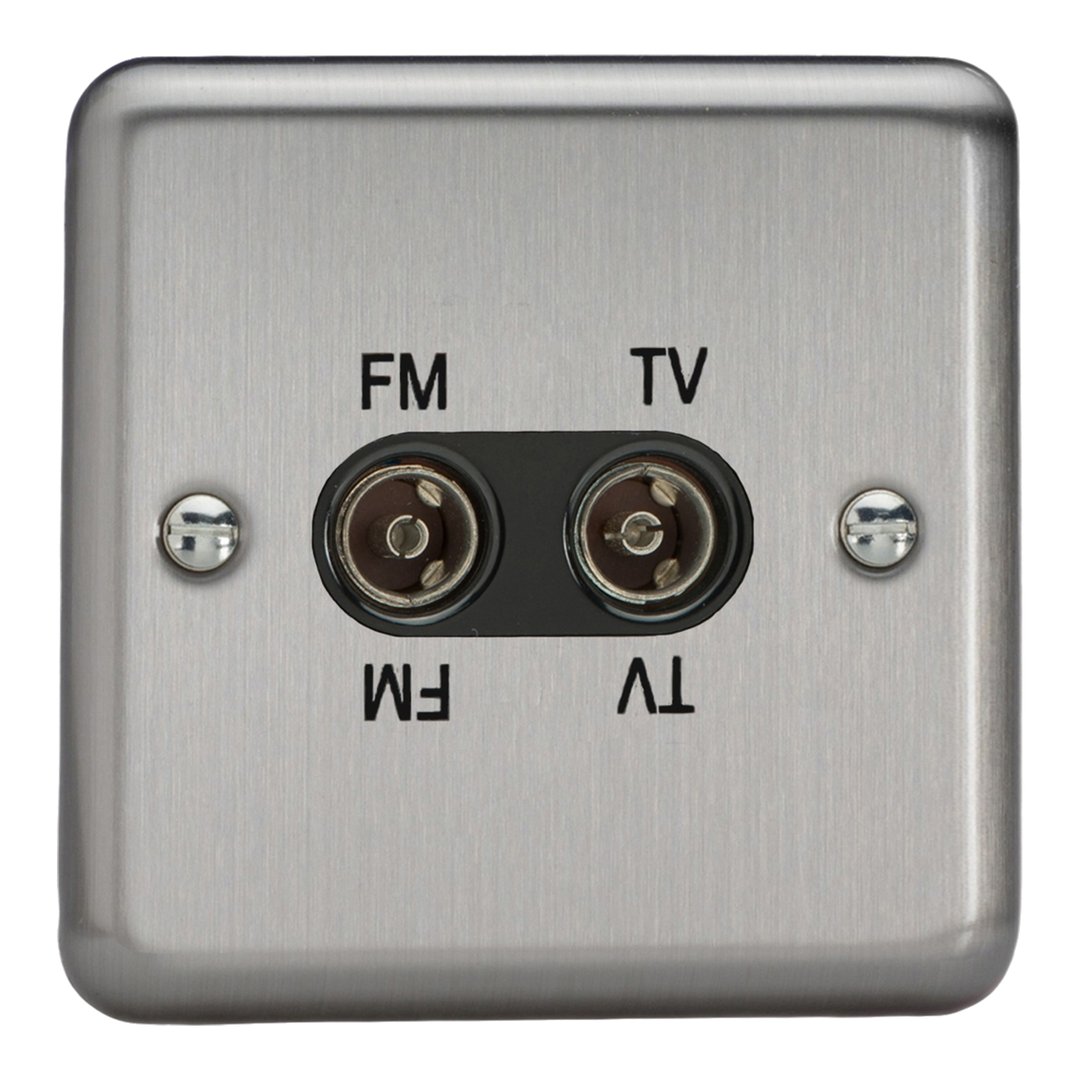

Product Description: 2-Gang Diplex Socket, TV/FM
Range: Classic
Finish: Matt Chrome
Product Category: TV and Telephone Sockets
Insert/Knob Colour: Black Insert
Barcode: 5021575830736
Dimensions: 88x88x22mm
Faceplate Depth: 7mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face: 15.5mm
Recommended Back Box Depth: 35mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Product Features
TV/FM socket - 1 x socket for use with male co-axial plugs (TV) and 1 x socket for use with female co-axial plugs (FM)
Curved edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Data circuits.
Applicable Safety Standard: BS 5733
Commodity Code: 85366910
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 25th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
