Data Sheet
Product Code: XY45S.DB

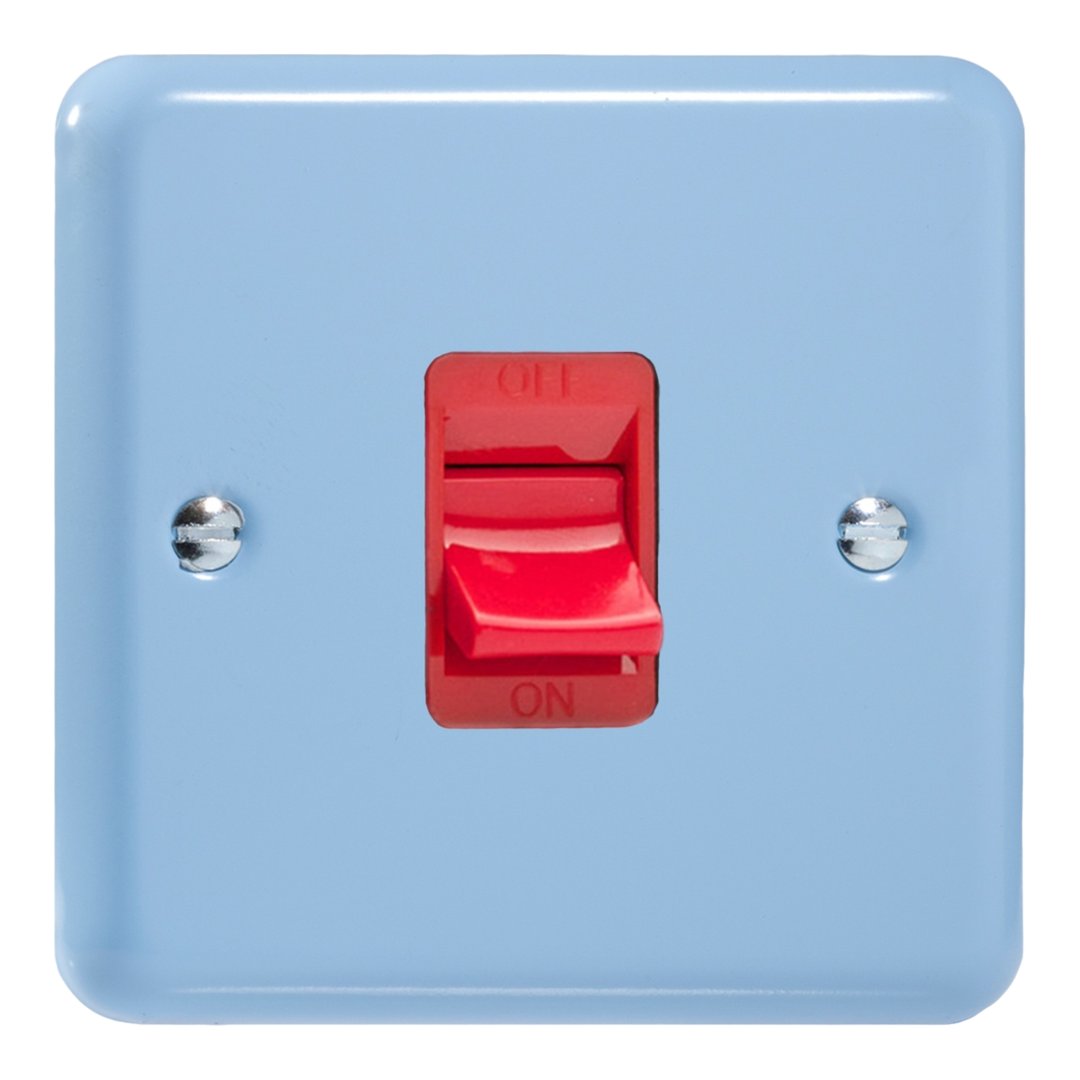

Product Description: 45A Cooker Switch (Single Plate/ Red Rocker)
Range: Lily
Finish: Duck Egg Blue
Product Category: Cooker Switches
Insert/Knob Colour: Red Insert
Barcode: 5021575215397
Dimensions: 86x86x35mm
Faceplate Depth: 7mm
Net Weight: 176g
Gross Weight: 178g
Fixing Centres: 60.3mm
Depth from Mounting Face: 19mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Cooker Switch: 45A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Double pole switching isolates live and neutral for added safety
Single size plate
45A rated
Isolates both live and neutral for added safety
Rounded-edge faceplate, 7mm deep with chrome screws, fits a 35mm back box
Lily Collection
Add a splash of colour with The Lily range to brighten up any interior. The soft rounded edge of the metal faceplate, combined with a pastel or primary colour, presents a modern take on a retro style.
Duck Egg Blue Finish
Cool and calming, Duck Egg Blue is the pastel that never dates, perfect for bedrooms, bathrooms and coastal-style kitchens. Paired with white inserts and chrome screws.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
16th September 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
