Data Sheet

Product Code: XY5U45W.WC

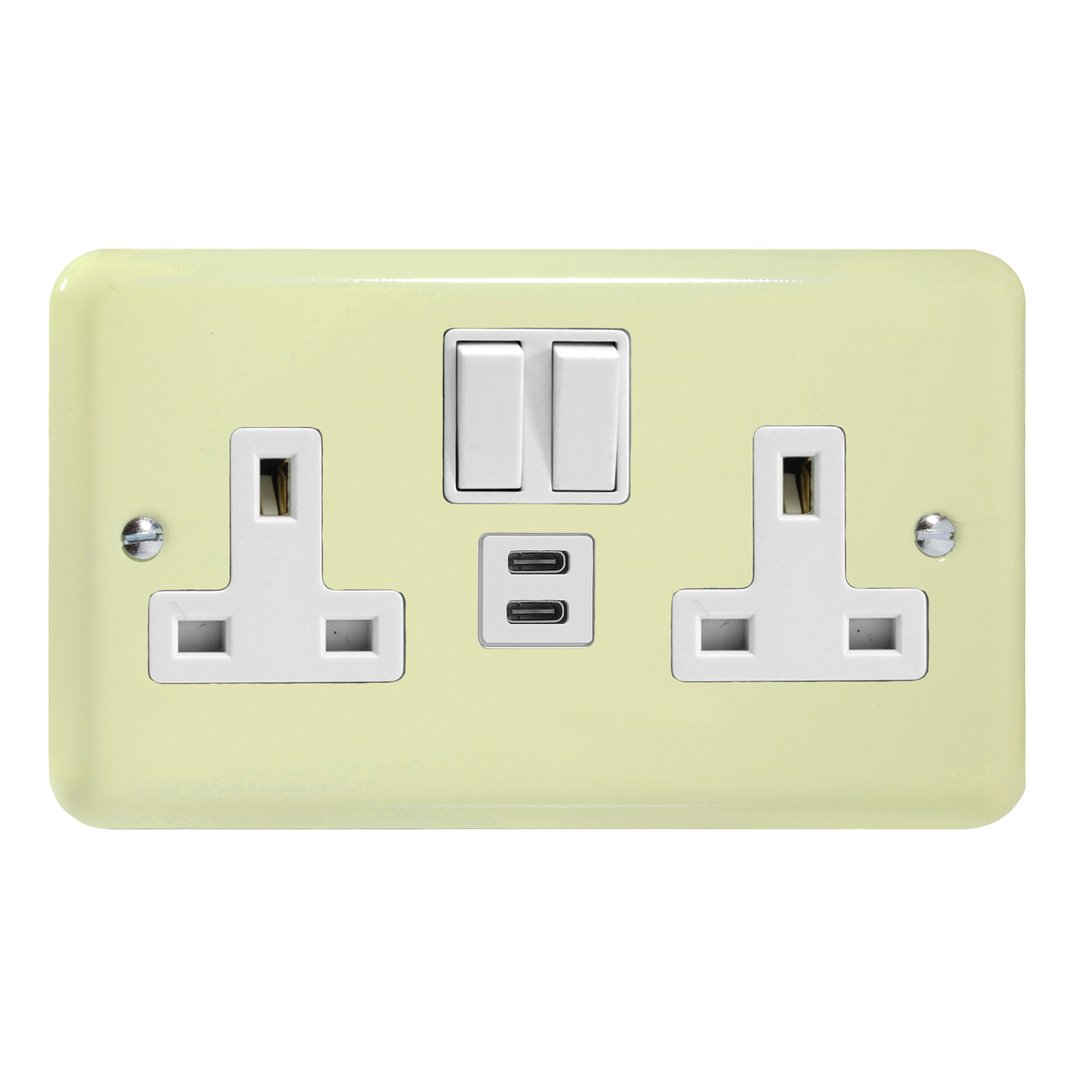

Product Description: Double Socket with 45W Twin USB C Charging Ports

Range: Lily

Finish: White Chocolate

Product Category: Sockets with USB C Charging

Insert/Knob Colour: White Insert

Barcode: 5021575038569

Dimensions: 91x150x31mm

Faceplate Depth: 8mm

Net Weight: 200g

Gross Weight: 202g

Fixing Centres: 120.6mm

Depth from Mounting Face: 18.5mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Please note recommended back box depth relies on efficient cable routing.. Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Super fast charging at 45W from twin USB-C ports

  Power Delivery 3.0 and Qualcomm Quick Charge 3.0 fast charging

  Fast enough for phones, tablets and laptops

  Both sockets stay free for other appliances

  Able to switch off for added safety and power saving

  Dual earth terminals for a secure earth connection

  Rounded-edge faceplate, 8mm deep with chrome screws, fits a 25mm back box

Lily Collection
Add a splash of colour with The Lily range to brighten up any interior. The soft rounded edge of the metal faceplate, combined with a pastel or primary colour, presents a modern take on a retro style.

White Chocolate Finish
Warm and creamy, White Chocolate is a softer take on white that is easy to live with and easy to match, adding a touch of comfort to any room. Paired with white inserts and chrome screws.
