Click below to print the data sheet for XY5VW.MW
Further information:
Data Sheet
Product Code: XY5VW.MW

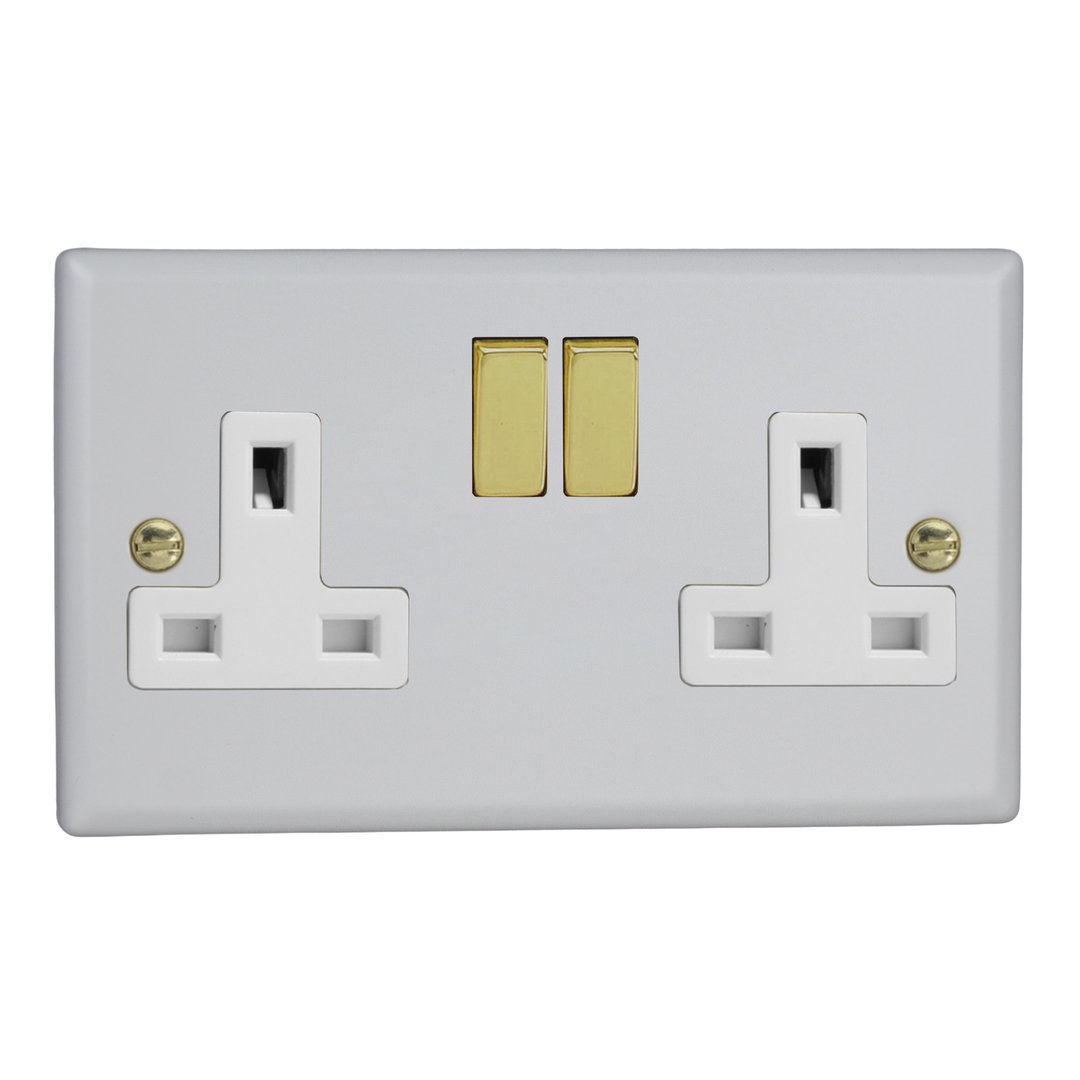

Product Description: 2-Gang 13A Double Pole Switched Socket
Range: Vogue
Finish: Matt White
Product Category: Sockets
Insert/Knob Colour: Polished Brass
Barcode: 5021575122145
Dimensions: 91x150x28mm
Faceplate Depth: 8mm
Net Weight: 209g
Gross Weight: 212g
Fixing Centres: 120.6mm
Depth from Mounting Face: 18.5mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Product Features
Double pole switching for safer operation
Bevelled edge faceplate
Featuring dual earth terminals
Vogue Collection
Inspired by the glamour of art deco, the Vogue collection will lift the decor of any room. Polished Brass switches, toggles and dimmer knobs are paired with the highest quality metal faceplates, to bring a feeling of luxury to any room.Matt White Finish
With its low sheen finish, the Matt White finish really shows off the brass detailing of the Vogue Collection. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Please note recommended back box depth relies on efficient cable routing.. Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 22nd May 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
