Data sheet: XY71W.DB

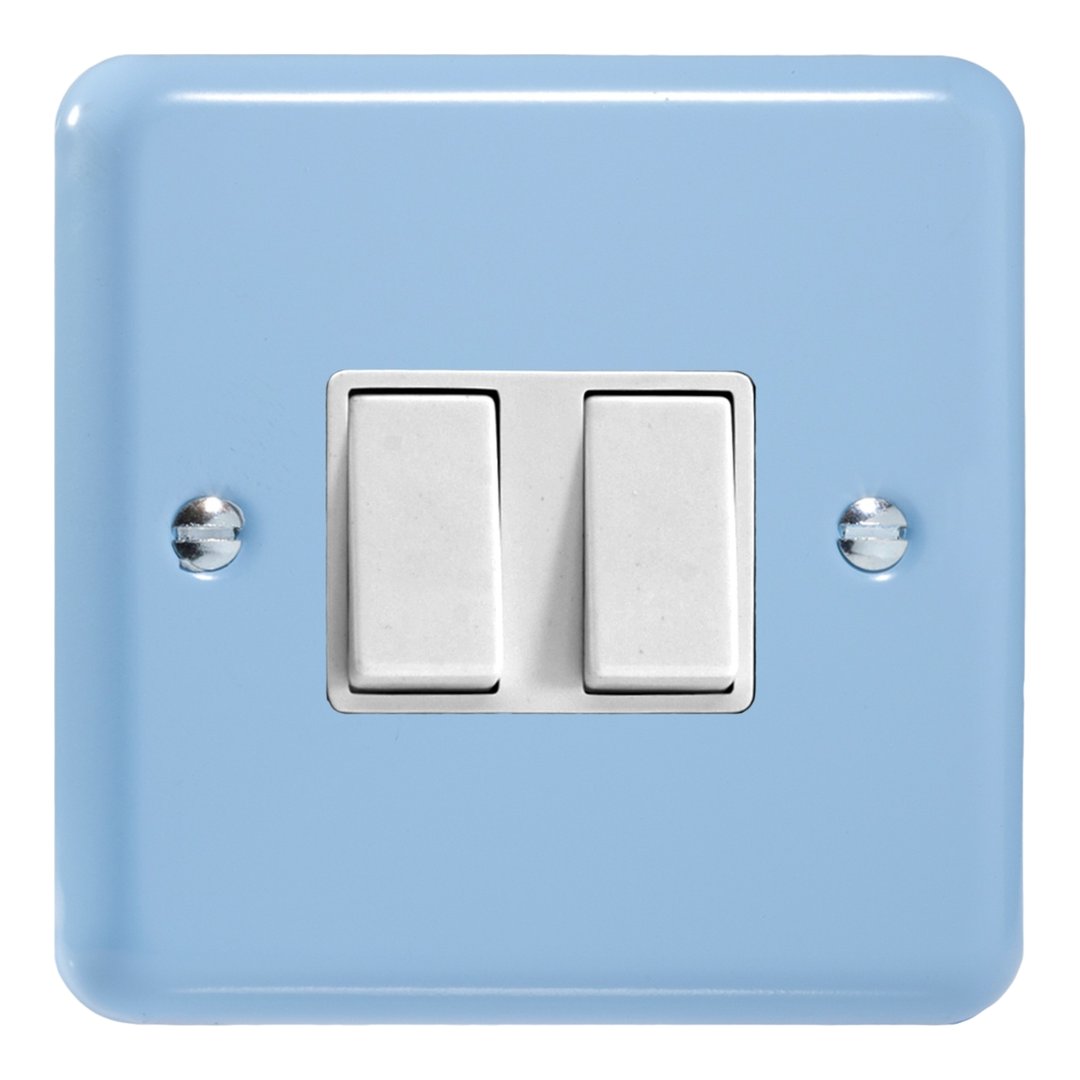

2-Gang (10A Intermediate Switch with 10A 1- or 2-Way Rocker Switch), Lily Duck Egg Blue (XY71W.DB)

Data sheet

XY71W.DB 2-Gang (10A Intermediate Switch with 10A 1- or 2-Way Rocker Switch)

Name: 2-Gang (10A Intermediate Switch with 10A 1- or 2-Way Rocker Switch)
Brand: VARILIGHT
SKU: XY71W.DB

Double Rocker Light Switch 2-Way & Intermediate

Range Lily Finish Duck Egg Blue

Product features

One 1- or 2-Way switch alongside one intermediate switch, the answer for landings and hallways
Suitable for controlling both mains and low voltage lighting
Intermediate switch for controlling one light from three or more places
10A rated
Rounded-edge faceplate, 7mm deep with chrome screws, fits a 16mm back box

Product

Product code: XY71W.DB
Category: Rocker Switches
Range: Lily
Finish: Duck Egg Blue
Insert / knob colour: White Rockers
Barcode: 5021575020564

Size and fitting

Dimensions: 86x86x25mm
Faceplate depth: 7mm
Fixing centres: 60.3mm
Depth from mounting face: 10.8mm
Recommended back box depth: 16mm
Net weight: 116g
Gross weight: 118g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 10A
Maximum current rating: 10A
Terminal (Live): 3.3mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669-1
Commodity code: 85365007

Declaration of Conformity

Lily collection

Add a splash of colour with The Lily range to brighten up any interior. The soft rounded edge of the metal faceplate, combined with a pastel or primary colour, presents a modern take on a retro style.

Duck Egg Blue finish

Cool and calming, Duck Egg Blue is the pastel that never dates, perfect for bedrooms, bathrooms and coastal-style kitchens. Paired with white inserts and chrome screws.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
