Click below to print the data sheet for XYA1B.MB
Further information:
Data Sheet
Product Code: XYA1B.MB
Product Description: 1-Gang 10A 1- or 2-Way Rocker Architrave Switch
Range: Urban
Finish: Matt Black
Product Category: Rocker Switches
Insert/Knob Colour: Black Rocker
Barcode: 5021575027839

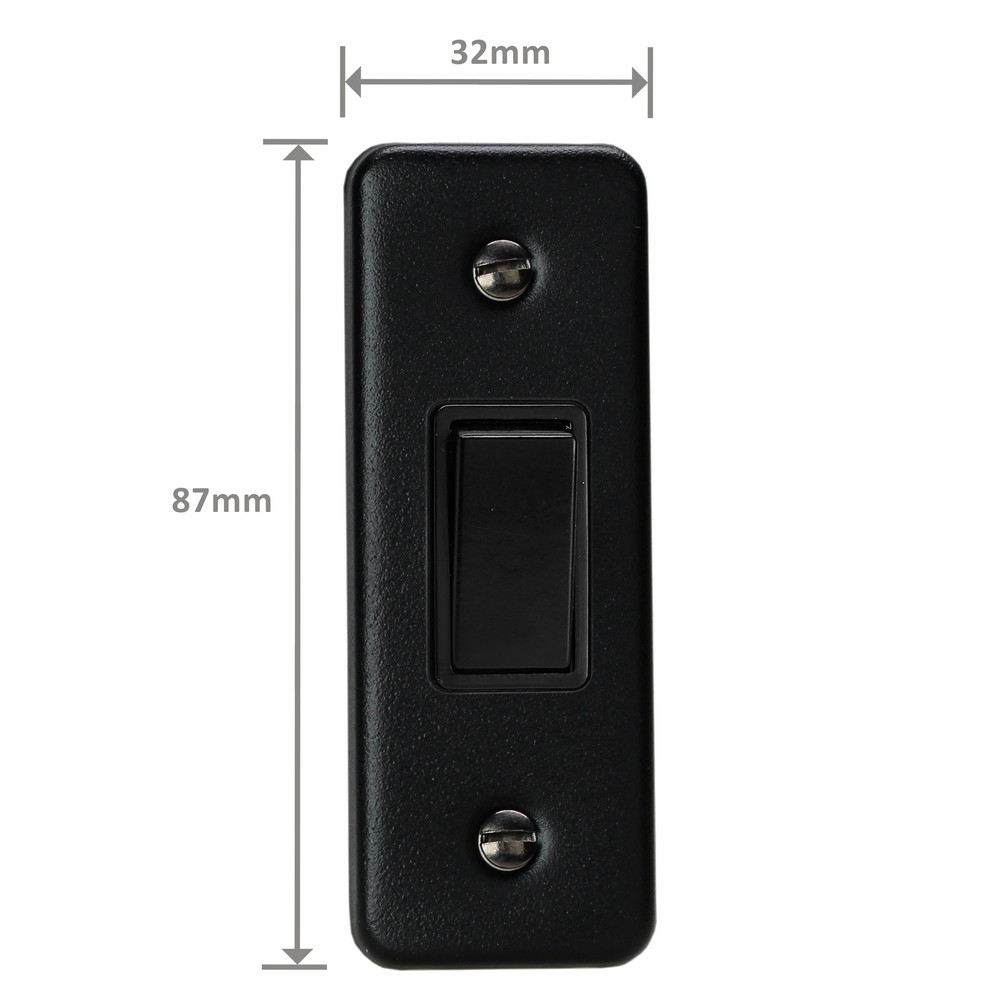

Dimensions: 87x32x25mm
Faceplate Depth: 7mm
Net Weight: 56g
Gross Weight: 70g
Fixing Centres: 60.3mm
Depth from Mounting Face: 11.5mm
Recommended Back Box Depth: 27mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
1- or 2-Way switching
Narrow design to fit in the smallest of spaces
Urban Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style, which is expertly manufactured in the UK to the highest standard.Matt Black Finish
The Matt Black finish is powder-coated to give a tactile, textured finish, which is tough, durable and resistant to fingerprints and is offered with black plastic inserts and matching black screws. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 21st June 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
