Click below to print the data sheet for XYG4.MB
Data Sheet
Product Code: XYG4.MB

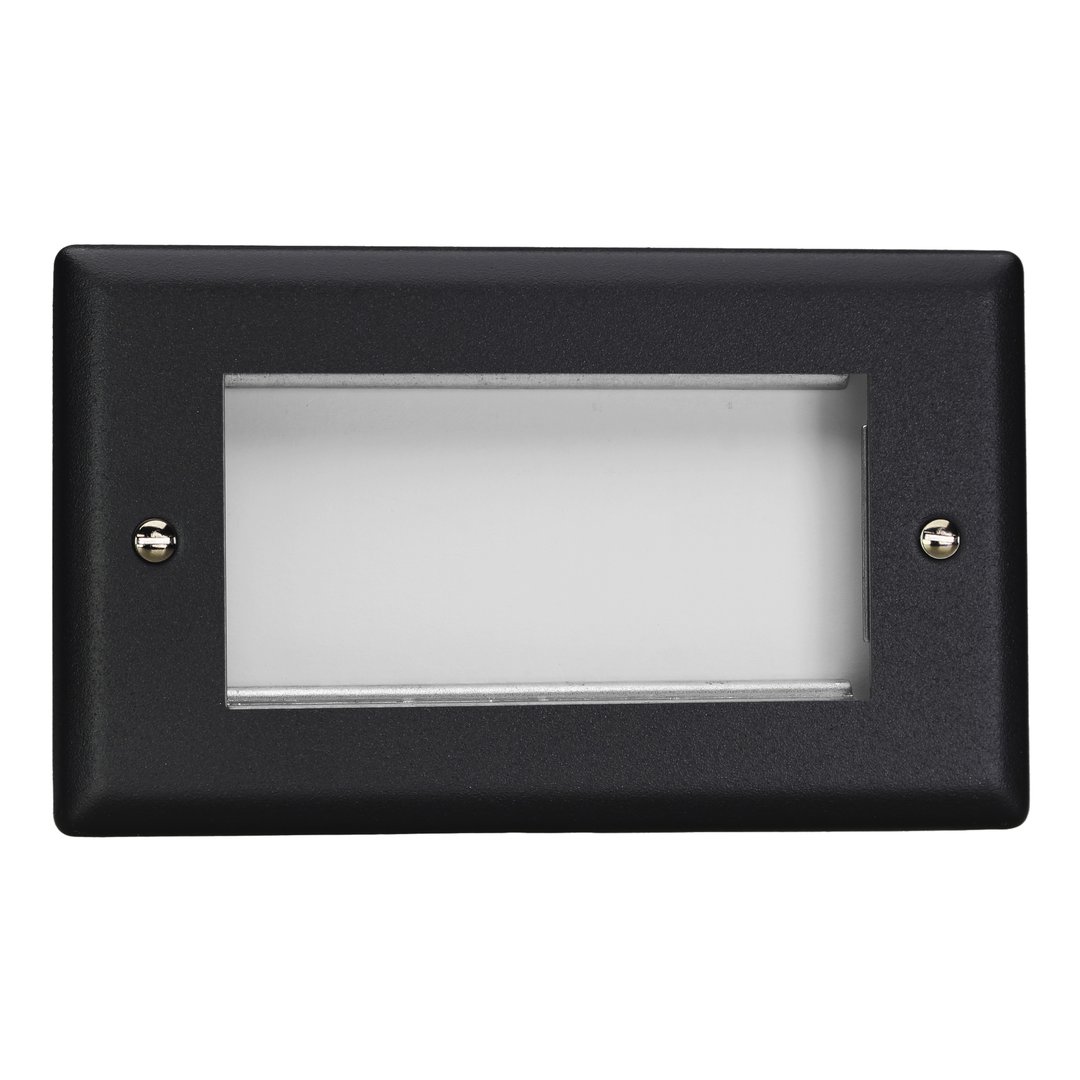

Product Description: DataGrid Twin Plate (4 Grid Spaces)
Range: Urban/Vogue
Finish: Matt Black
Product Category: DataGrid Faceplates
Barcode: 5021575031447

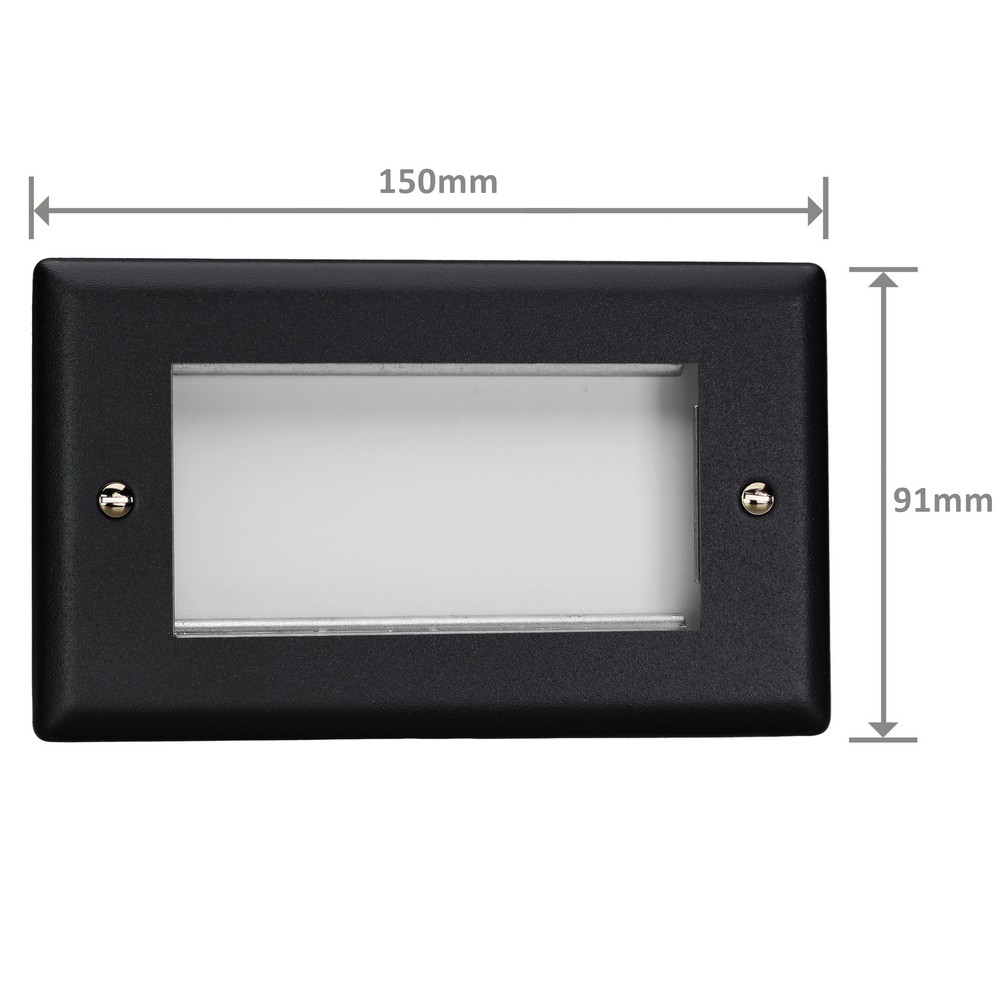

Dimensions: 91x150x9mm
Faceplate Depth: 8mm
Net Weight: 119g
Gross Weight: 122g
Fixing Centres: 120.6mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: Refer to Grid Modules
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
Product Features
Clip in any combination of DataGrid modules
Create your own data combinations
Bevelled edge faceplate
Comes with Iridium and Brass screws to suit Vogue and Urban collections
Urban/Vogue Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style, which is expertly manufactured in the UK to the highest standard. This product is also suitable to match with the Vogue Collection.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
19th January 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
