Data Sheet
Product Code: XYPGY3.MB
Product Description: 3-Gang PowerGrid Plate including Yoke (Twin Plate)
Range: Urban/Vogue
Finish: Matt Black
Product Category: Grid Faceplates
Insert/Knob Colour:
Barcode: 5021575294361

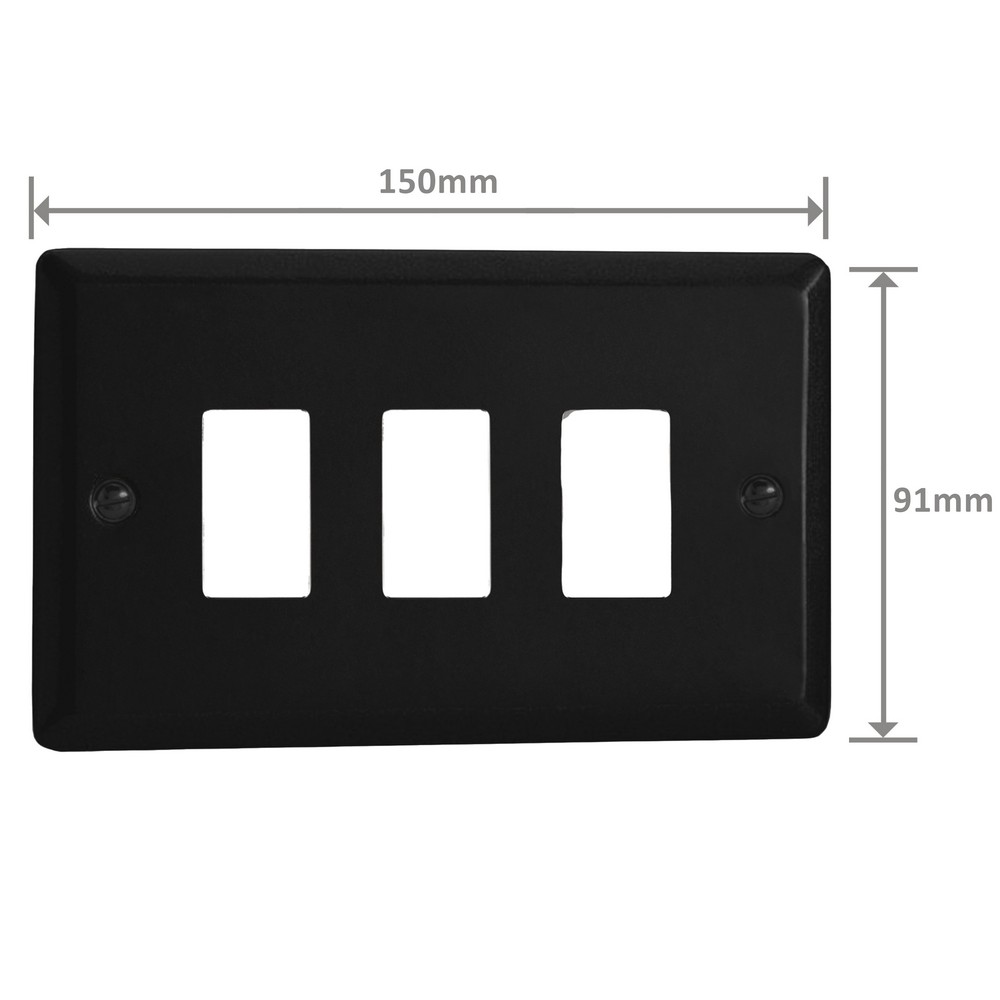

Dimensions: 91x150x*mm
Faceplate Depth: 8mm
Net Weight: 209g
Gross Weight: 212g
Fixing Centres: 120.6mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: N/A
Maximum Current Rating: -
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Create your own switch combinations
Comes with Iridium and Brass screws to suit Vogue and Urban collections
Comes in a pack with the grid frame pictured below.
Urban/Vogue Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style, which is expertly manufactured in the UK to the highest standard. This product is also suitable to match with the Vogue Collection.
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Product Must Be Earthed (via PowerGrid Frame).
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 22nd May 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
