Data Sheet
Product Code: YPSB45

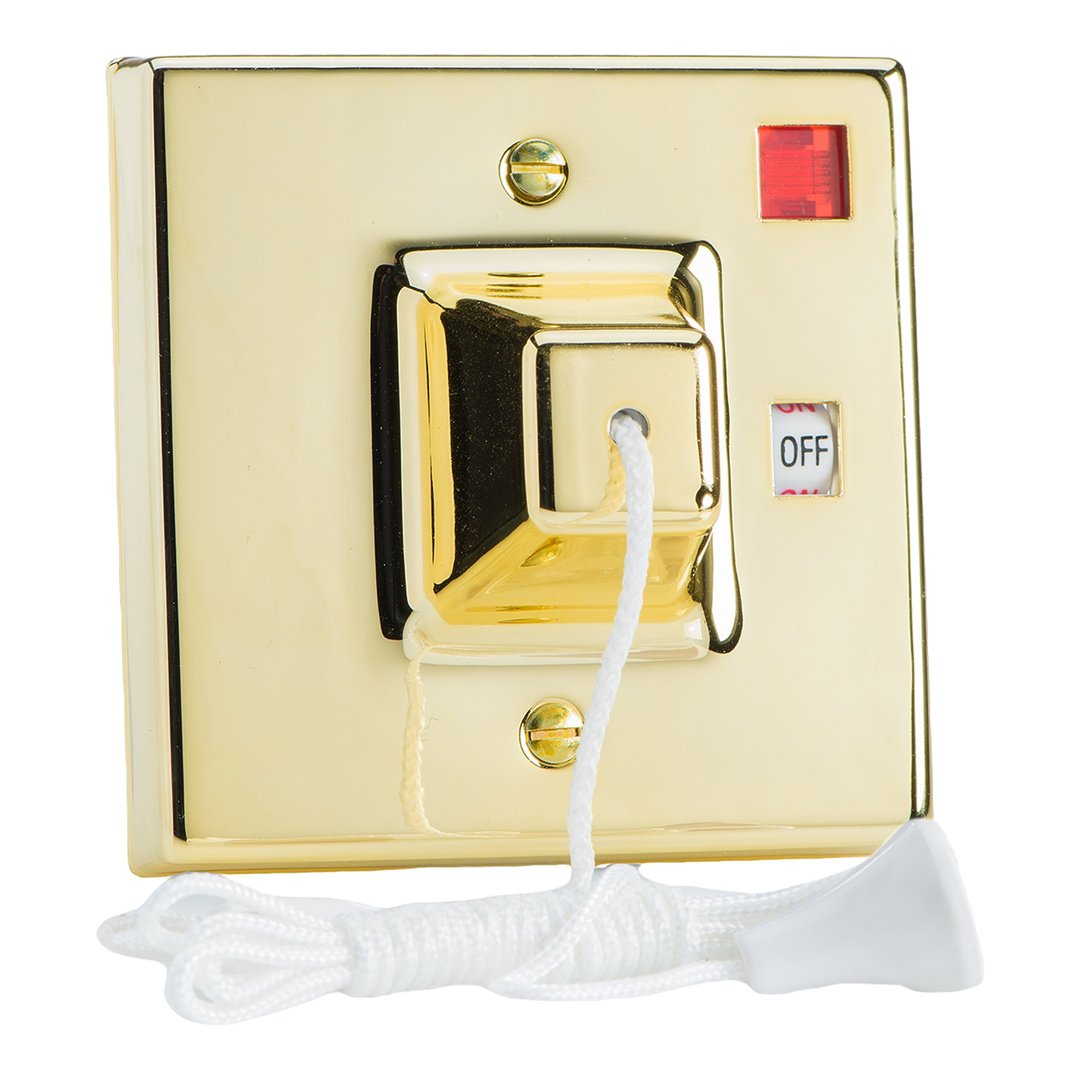

Product Description: 45A Pull Switch with Neon Brass Effect
Finish: Brass Effect
Product Category: Other Items
Insert/Knob Colour: Pull Cord
Barcode: 5021575960174
Dimensions: 88x88x57mm
Faceplate Depth: 11mm
Net Weight: 56g
Gross Weight: 58g
Fixing Centres: 60.3mm
Depth from Mounting Face: 12mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 45A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 5.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 5.4mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²
Product Features
Switches using a pull cord
Can be installed in bathrooms, toilets and shower rooms (IP20)
Straight edged, brass effect base
Double Pole Switching
Intended Applications: Indoor Use Only. Domestic power supply.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
