Data Sheet
Product Code: YT105Z
Product Description: 0-105VA Dimmable Low Voltage Lighting Transformer (with Terminals)
Product Category: Drivers and Transformers
Insert/Knob Colour:
Barcode: 5021575960952

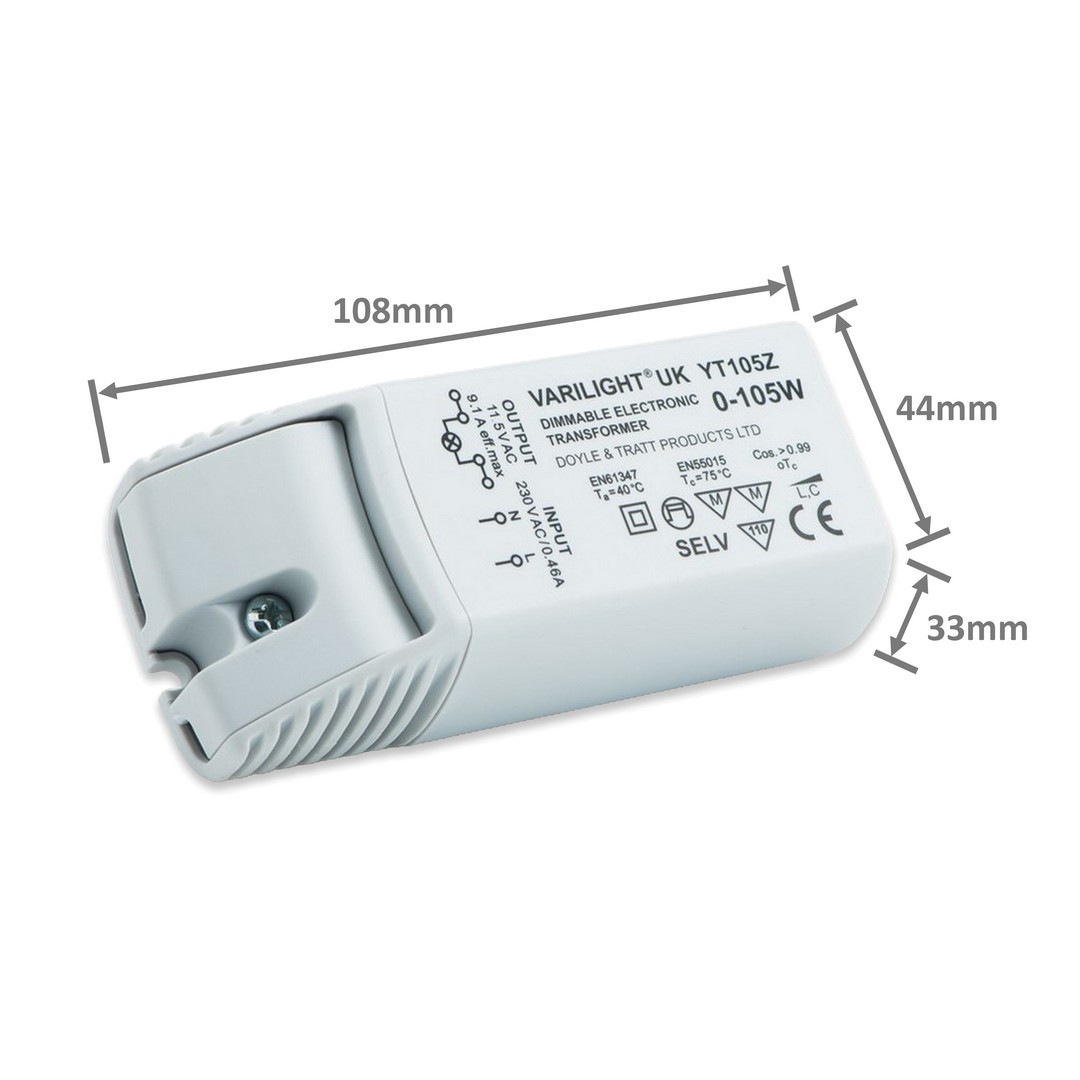

Dimensions: 108x44x33mm
Net Weight: 123g
Gross Weight: 125g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: 105W
Maximum Current Rating: 230V AC: 0.46A / 11.5V AC: 9.1A
Terminal (Live) Diameter: 2.6mm; Capacity: 2 x 1.5mm²
Terminal (Neutral) Diameter: 2.6mm; Capacity: 2 x 1.5mm²
Product Features
Soft start gently brings lights up to full brightness when you switch on and extends lamp life
Auto-resetting overload protection and over-temperature
1 x pair of input terminals and 2 x pairs of output terminals
Short circuit protection - IP20
No minimum rating
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Minimum distance between Transformer and lamp: 30cm. This product is not suitable for use with LEDs.. Maximum distance between Transformer and lamp: 2m.
Applicable Safety Standard: EN 61347-1, EN 61347-2-2, EN 61547, EN 55015 & EN 61000-3-2
Commodity Code: 85043180
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 25th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
